APRILIA SCARABEO 125 Service Manual

Front

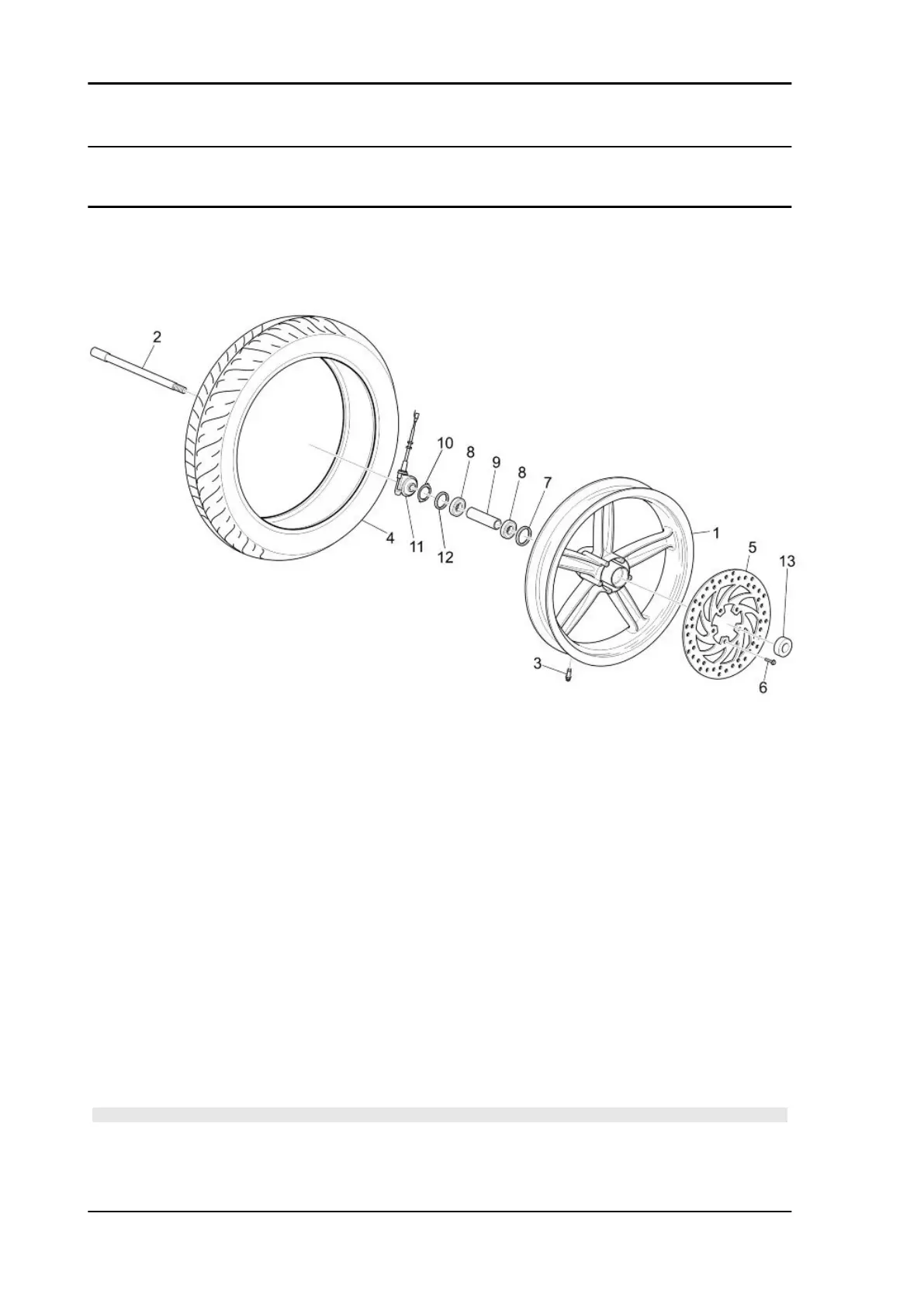

Removing the front wheel
key:
1. Grey front wheel
2. Front wheel axle
3. Tubeless valve
4. Front tyre
5. Front brake disc
6. TE flanged screw M8x30
7. Sealing ring
8. Bearing
9. Spacer
10. Oil seal
11. Odometer gear
12. Pulling element
13. Spacer
CAUTION
SET THE SUPPORT UNDER THE VEHICLE IN SUCH A WAY THAT THE FRONT WHEEL HAS FREE
SPACE TO MOVE AND THE VEHICLE IS FIRMLY SECURED FROM FALLING.
Suspensions SCARABEO 125 - 200
SUSP - 140

APRILIA SCARABEO 125 Specifications

General

Engine Type	Single-cylinder, 4-stroke
Displacement	124 cc
Fuel System	Carburetor
Transmission	Automatic CVT
Front Suspension	Telescopic fork
Front Brake	Disc
Rear Brake	Drum
Cooling System	Air cooled
Rear Suspension	Hydraulic shock absorber
Power	8.5 kW
Maximum Torque	7, 000 rpm
