CRANKSHAFT
Pos. Description Type Quantity Torque Notes
1 Primary crankshaft fastening net M24x1.5 1 294 Nm (216.84 lb ft) Thoroughly de-
grease both of the
coupling surfaces
(shaft cone and
gear cone)
2 Connecting rod fastening screws -
Pre-torque
M10x1x40 4 15 Nm (11.06 lb ft) Lubricate the
threads before tight-
ening
2 Connecting rod fastening screws -
Torque
M10x1x40 4 30 Nm (22.13 lb ft) + 50°
+/- 2°
-
2 Connecting rod fastening screws -
Control
M10x1x40 4 70 Nm (51.63 lb ft) -
Overhaul data
Assembly clearances
Cylinder - piston assy.

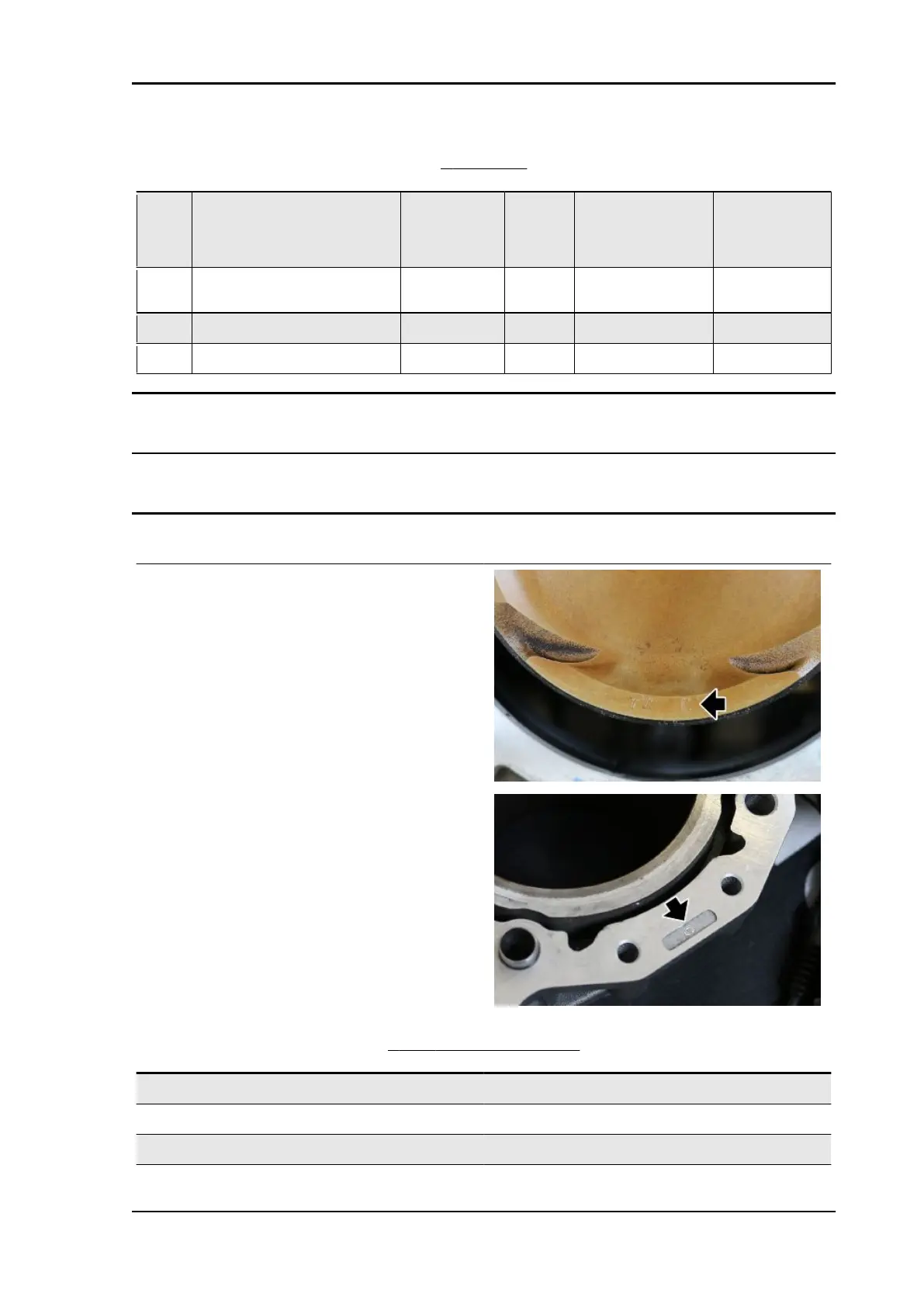

The pistons are available in four size types (A, B,
C, D) to be coupled to the four cylinder types (A,
B, C, D).
Only one type of piston ring is available.
PISTON - CYLINDER COUPLING
Specification Desc./Quantity
Cylinder-piston class A coupling Cylinder: 91.990 - 91.997 mm (3.6216 - 3.6219 in)
Piston: 91.933 - 91.940 mm (3.6217 - 3.6197 in)
Cylinder-piston class B coupling Cylinder: 91.997 - 92.004 mm (3.6219 - 3.6222 in)
Piston: 91.940 - 91.947 mm (3.6197 - 3.6199 in)
Cylinder-piston class C coupling Cylinder: 92.004 - 92.011 mm (3.6222 - 3.6225 in)
Piston: 91.947 - 91.954 mm (3.6199 - 3.6202 in)
Cylinder-piston class D coupling Cylinder: 92.011 - 92.018 mm (3.6225 - 3.6227 in)
Piston: 91.954 - 91.961 mm (3.6202 - 3.6205 in)
SHIVER 900 Characteristics
CHAR - 51

APRILIA SHIVER 900 Specifications

General

Displacement	896.1 cc
Transmission	6-speed
Rear Brakes	240 mm disc, single-piston caliper
Engine Type	V-Twin, 4-stroke
Power	70 kW (95.2 hp) @ 8, 750 rpm
Torque	90 Nm at 6, 500 rpm
Fuel System	Electronic fuel injection
Front Suspension	Inverted fork with adjustable preload and rebound damping
Rear Suspension	Aluminum swingarm with adjustable rebound and preload
Front Brakes	Dual 320 mm discs, radial 4-piston calipers
ABS	Standard
Traction Control	Adjustable traction control
Ride Modes	Sport, Touring, Rain
Seat Height	810 mm
Wheelbase	1, 460 mm
Fuel Capacity	15 liters
Dry Weight	199 kg (439 lbs)
