Pos. Description Type Quantity Torque Notes
3 Voltage regulator fixing screw M6x30 2 6 Nm (4.43 lb ft) -
4 Battery bracket fixing screw M6x20 2 8 Nm (5.90 lb ft) -
5 Horn fixing screw M8x16 1 8 Nm (5.90 lb ft) -
6 ABS sensors fixing screw M5 2 6 Nm (4.43 lb ft) Loctite 243
- Screw fixing main wiring harness to
chassis and saddle mounting
M6x16 2 8 Nm (5.90 lb ft) -
- Main wiring harness cable stay sup-
port fixing
M6 2 12 Nm (8.85 lb ft) -
- Right and left indicator stalk fixing
screw
M5 4 1.5 Nm (1.11 lb ft) -
- Screw fixing engine ground cable M6 1 12 Nm (8.85 lb ft) -

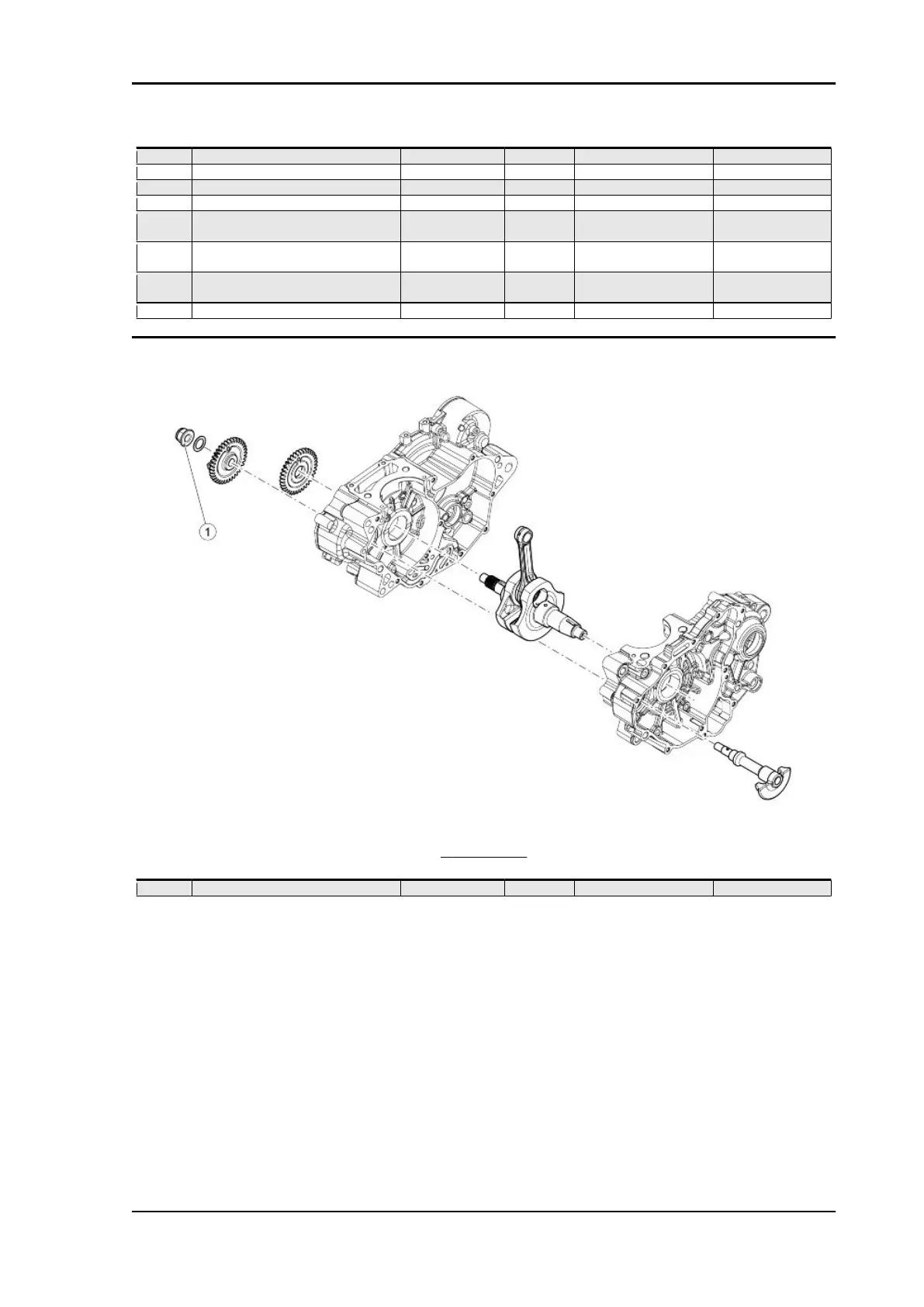

Engine
CRANKSHAFT
Pos. Description Type Quantity Torque Notes
1 Gear fixing screw M10 1 40 Nm (29.50 lb ft) -
RS 125 - Tuono 125 - Euro 4 Characteristics
CHAR - 45
