9. (ALTERNATE MOUNTING METHOD WITH
EMBEDDED PLATE).

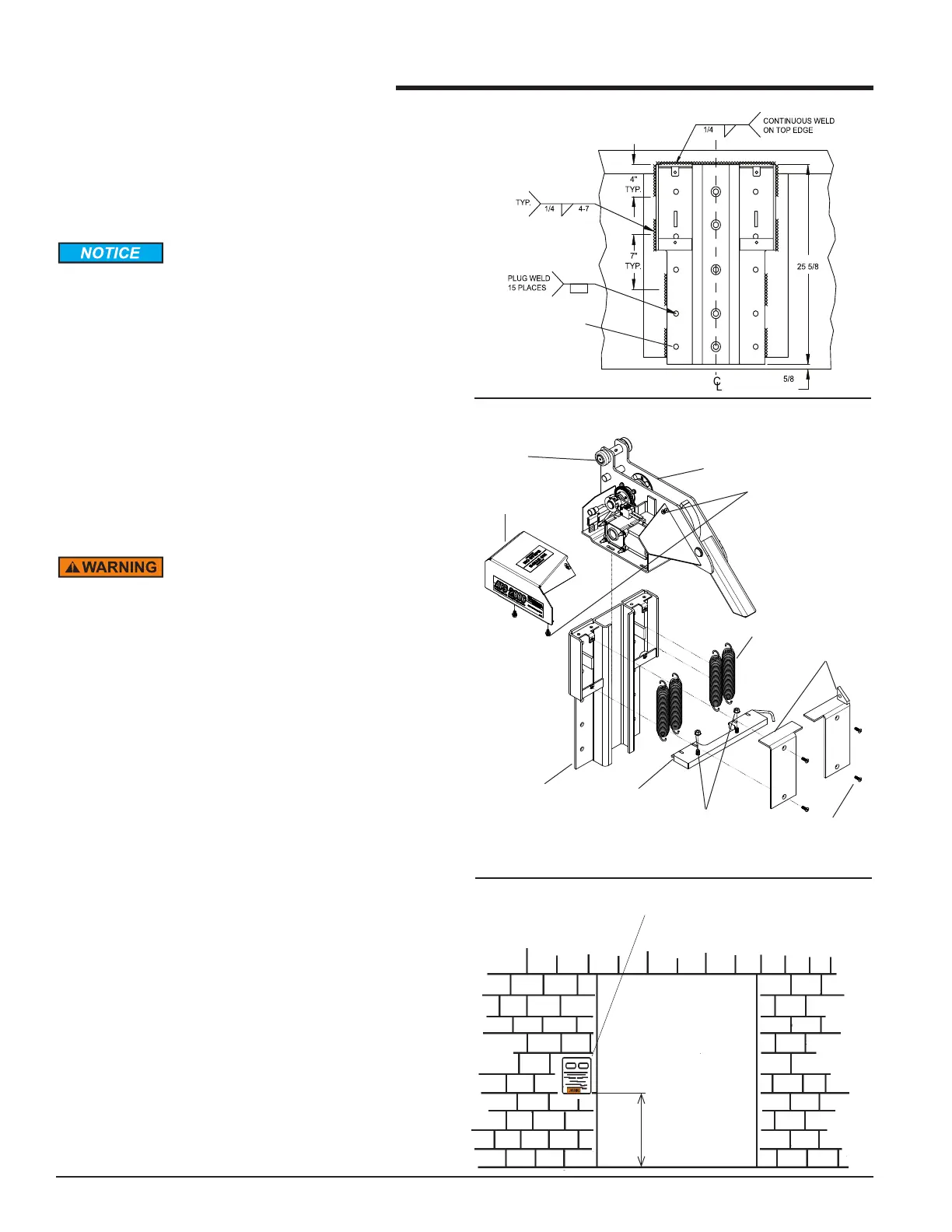

If the pit has an embedded mounting plate, weld the
roller track plate to the embedded mounting plate.
All See Figure 5 for proper size and type of welds
required.
10. Reinstall the carriage assembly to the roller track
plate. Attach the four springs to the spring bar and
the top of the roller track plate. Slide the carriage as-
sembly into the roller track plate. Bolt the spring bar
to the bottom of the carriage assembly and install the
spring and motor covers. See Figure 6.
MAX.
ALL (15) HOLES
MUST BE PLUG
WELDED OR
ANCHORED
Never weld on the APS 2000
®
restraint after the
motor is wired to the control box and the power is
on. Damage to the controls or wiring may result.
4'
MOUNT CONTROL BOX ON LEFT
SIDE OF DOOR OPENING. MOUNTING
HARDWARE SUPPLIED BY OTHERS.
FIGURE 7
When lifting the carriage during service or assembly,
use a lifting device. Lifting by hand may result in
back injury.
Before doing any electrical work, make certain the
power is disconnected and properly locked or tagged
off. Failure to do so may result in death or serious
injury. All electrical work must be done by a qualied
technician and must meet all applicable codes.
11. Mount control box inside the building approximately
4 feet above the oor, to the left of the doorway. See
Figure 7.
FIGURE 6
MOTOR COVER
ROLLER
CARRIAGE ASSEMBLY
ROLLER
TRACK PLATE
SPRING BAR
SPRING
SPRING COVERS
TORQUE TO
9 FT-LBS
TORQUE
TO 9 FT-LBS
TORQUE
TO 31 FT-LBS
INSTALLATION
FIGURE 5
