12. Mount and wire outside signal light assembly to the
control box. See the Wiring Diagram for electrical
connections. Make sure outside light assembly is
mounted with the red light on top and the green light
on the bottom.
13. Mount electrical junction box (not supplied) near the
Vehicle Restraint. See Figure 9.
14. The Vehicle Restraint includes a wiring harness. Run
the harness from the carriage to the outside junction
box. Leave about 4" of slack in the wiring harness.
Wire (not supplied) from the control box to the
junction box. See Wiring Diagram.
15. Wire power to the control box using terminals
provided in the control box. See Wiring Diagram.
16. Permanently mount the vehicle drivers instruction
signs on the outside wall under the signal light, or
where clearly visible by driver, when installing the
Red/Green Light Assembly. See Figure 9.
17. Operate the Vehicle Restraint following the Operation
instructions. Check for smooth operation and
proper light operation according to the Operation
instructions.
18. Instruct the dock workers how to use the Vehicle
Restraint using the Operation instructions.

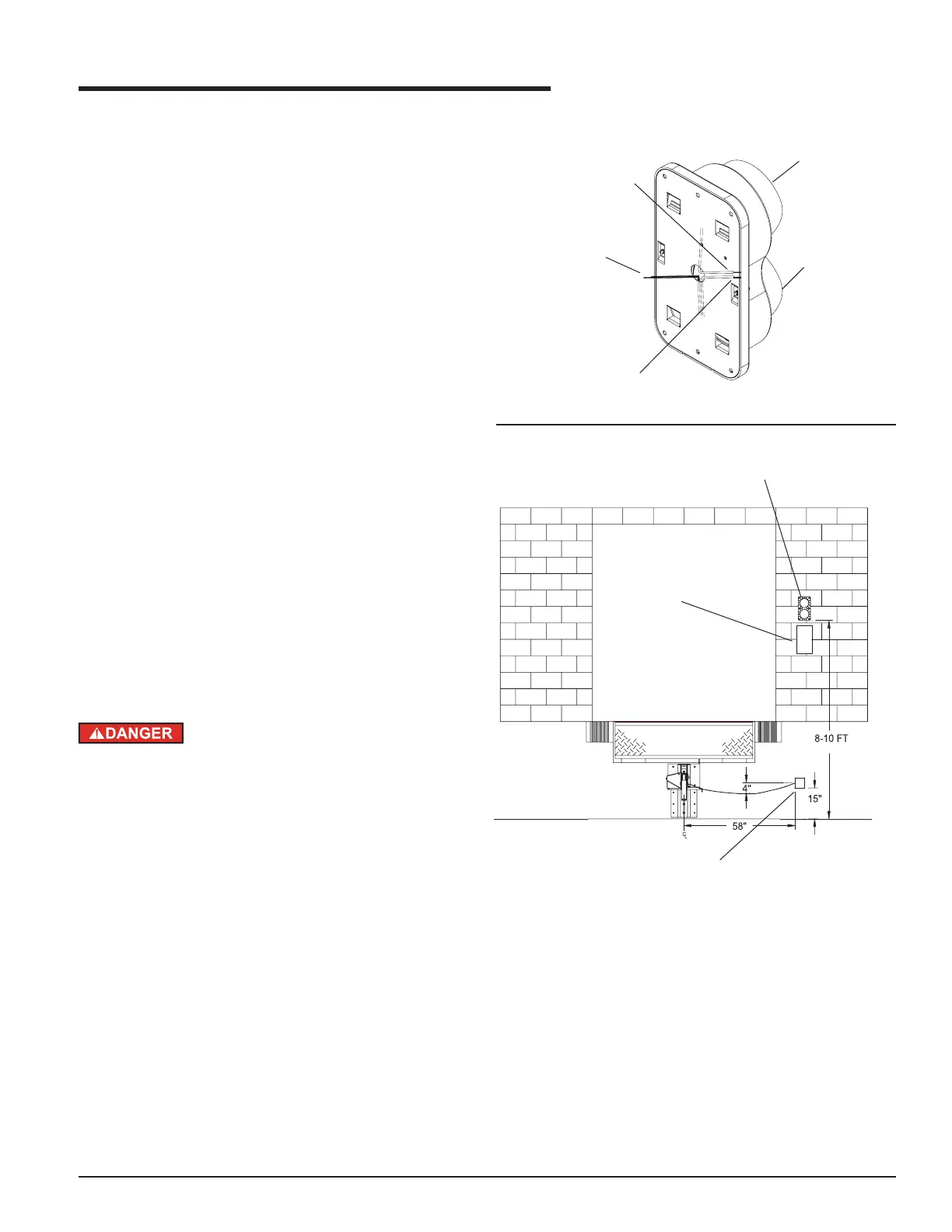

FIGURE 8
“MOVE ON
GREEN ONLY”
SIGN
FIGURE 9
*MOUNTING HARDWARE SUPPLIED BY OTHERS
*DIMENSIONS ARE REFERENCE ONLY. USE OF
A STANDOFF OR OTHER MOUNTING BRACKET
COULD AFFECT THE DIMENSIONS SHOWN OR THE
REQUIRED CABLE LENGTH.
MOUNT SIGNAL LIGHT
ON RIGHT SIDE OF DOOR.
(VEHICLE DRIVER'S SIDE)
JUNCTION BOX BY OTHERS
(3-1/2" DEEP MAXIMUM)
Be certain power is off when wiring to the control
box or signal lights. Failure to do so could result in
electrical shock, death or serious injury.
Do not route control wiring for any other device
through this control box unless properly shielded.
RED LIGHT
RED LEAD FROM
RED LIGHT
GREEN LEAD FROM
GREEN LIGHT
BLACK LEAD IS
OUTSIDE LIGHT
COMMON
