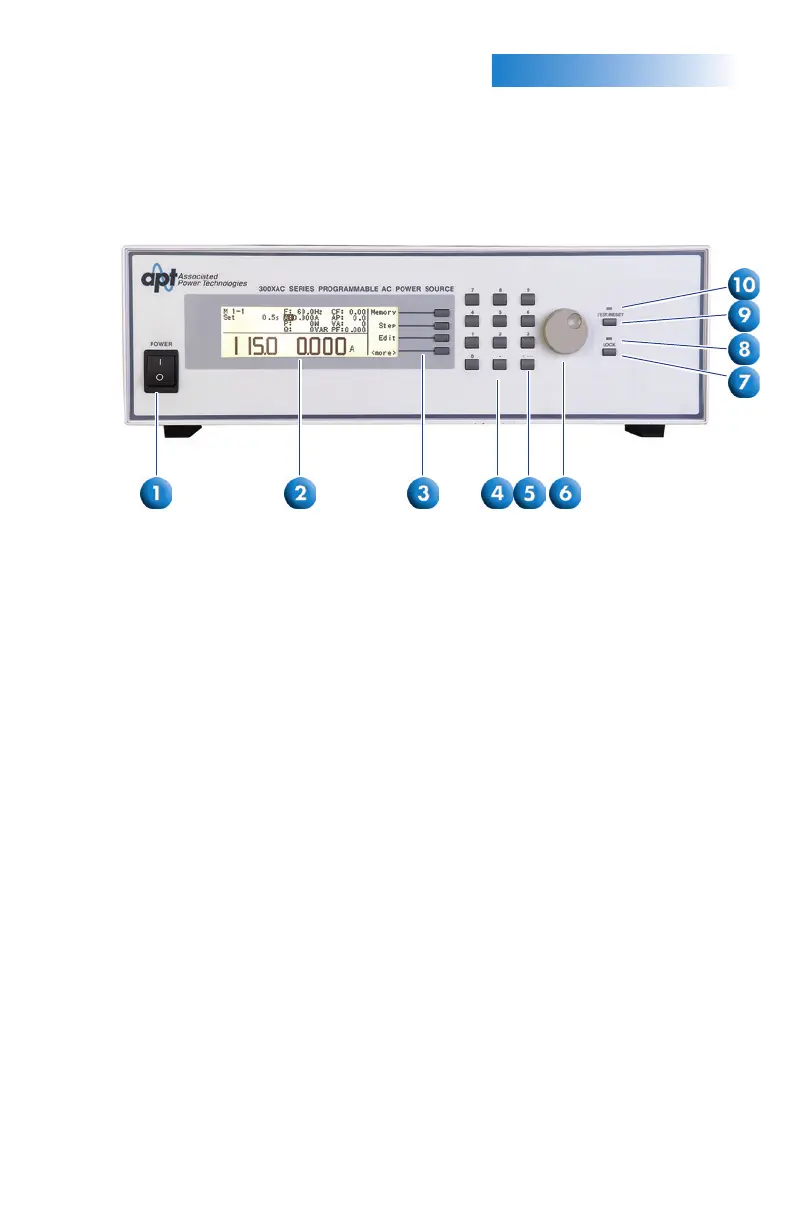

FRONTPANELCONTROLS
1.
1. POWER SWITCH: Rocker style power switch with International ON (I) and
OFF (0) markings.
2. GRAPHIC LCD: 240 x 64 monographic LCD.
3. SOFT KEYS: Multi-functional selection keys used to select parameters, select
screens, and edit parameters.
4. NUMERIC KEYPAD: Keys used to enter numeric data.
5. DELETE KEY: Used to delete text characters and numeric data.
6. ROTARY KNOB: Used to adjust the voltage/frequency output in MANUAL
Mode or DC Mode.
7. LOCK KEY: Used to lock out the front panel.
8. LOCK LED: When lit, this LED indicates the instruments front panel is locked.
9. TEST/RESET KEY: Used to turn ON/OFF output voltage, or used to reset the
instrument in the event of a failure condition.
10. TEST/RESET LED: When lit, this LED indicates output is active, or when
blinking indicates the instrument is in a failure condition.
