APT 320XAC Quick Start Guide

BACKPANELCONTROLS
4.

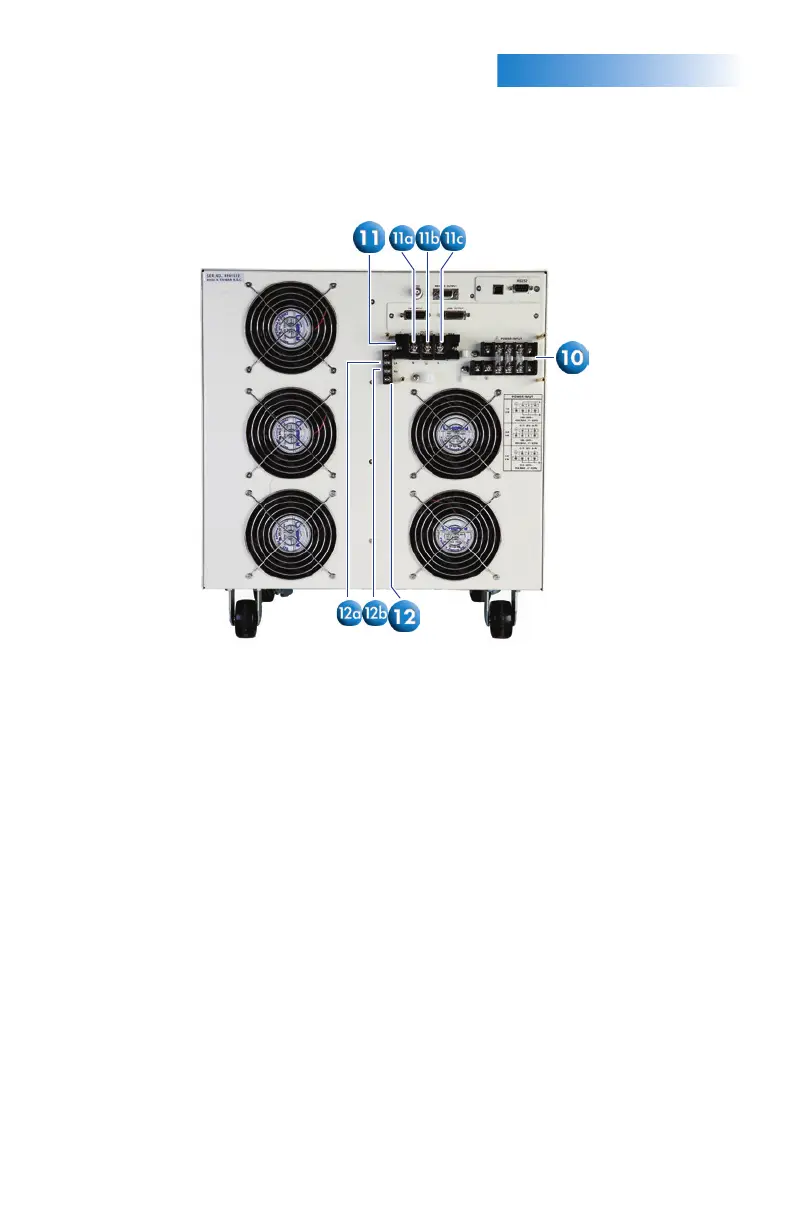

10. INPUT TERMINAL POWER BLOCK: Provides input power to the instrument. Model
360XAC requires 180-264 VAC 1Ø, 180-264 VAC 3Ø or 312-457 VAC 3Ø at
47-63 Hz.
11. OUTPUT TERMINAL POWER BLOCK: Provides output power to the DUT.
11a. N: Neutral output screw terminal.
11b. G: Earth ground (chassis) connection.
11c. L: Line output screw terminal.
12. EXTERNAL SENSE OUTPUT TERMINAL BLOCK: Provides screw terminals for
external voltage sense leads.
12a. L: Line voltage sense screw terminal.
12b: N: Neutral voltage sense screw terminal.
