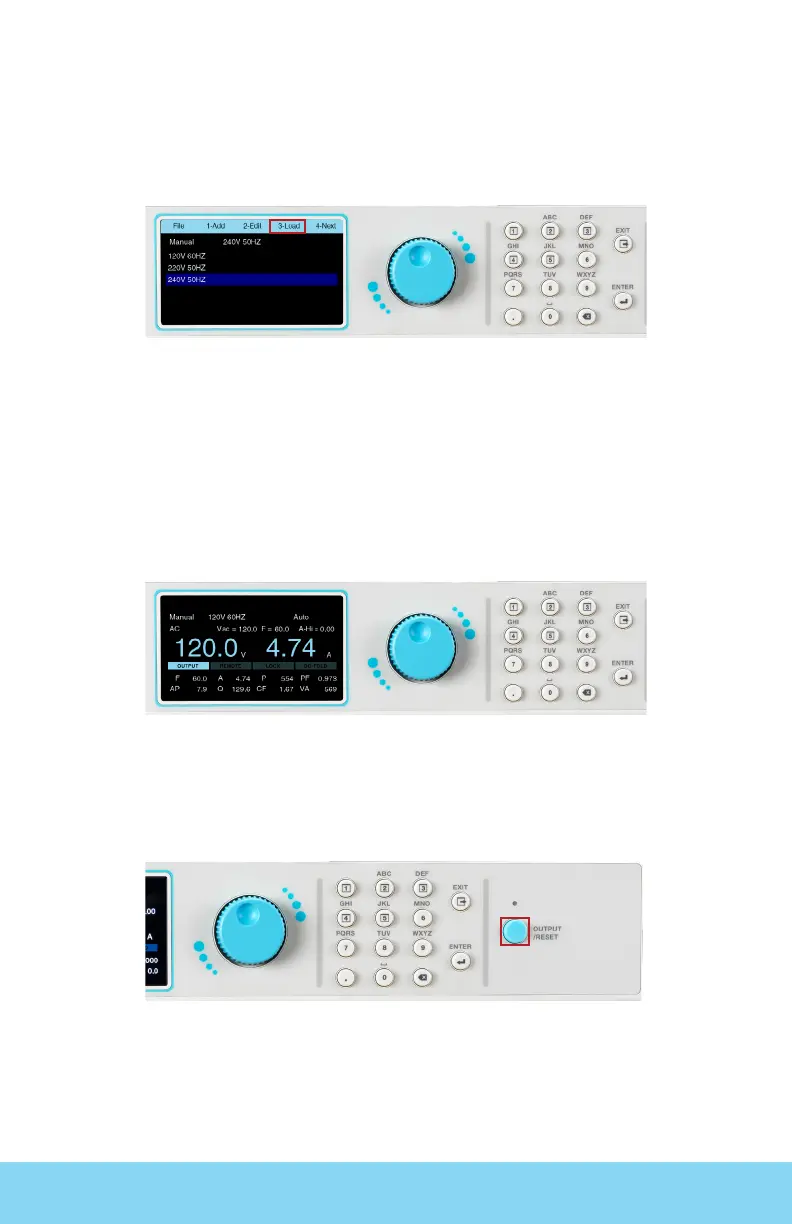

7. Once all test parameters have been programmed press the EXIT key on the keypad and the
screen will display your newly created test file. When you are ready to test, press the number 3
key on the keypad to select Load and the screen will change to the test screen. The power source
will start outputting if you press the OUTPUT/RESET key on the front panel. Make sure all the output
connections are secure and all other safety precautions are taken before performing a test.
Perform Test
1. Once a test file is loaded, the power source is ready to start outputting. Make all the necessary test
connections to the DUT (Device Under Test) and perform all safety measures before performing the
test. Pressing the OUTPUT/RESET key will start a test. All meters on the screen will display the live
test data.
2. To abort a test press the OUTPUT/RESET.
© 2022 Associated Power Technologies
Visit us online aptsources.com
V1.0 | 3.2022
