Aputure Light Storm LS 60x - Barn Doors Installation

-7-

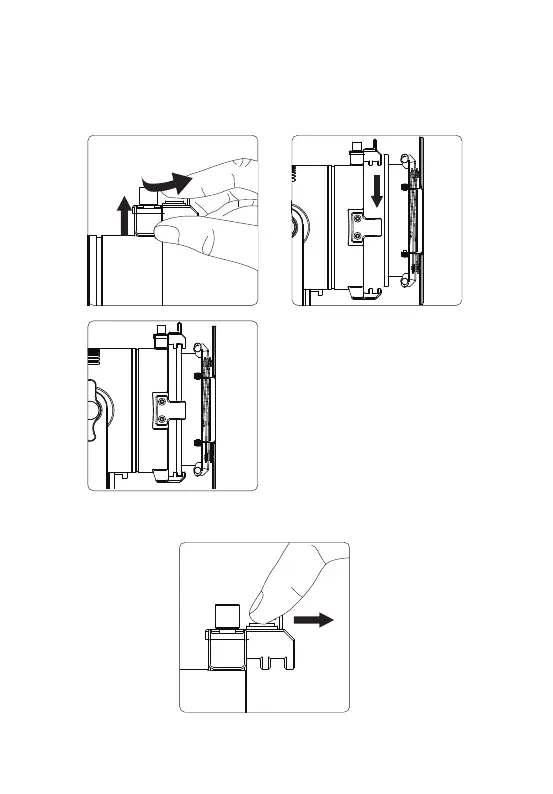

2. Install the Barn Doors
Make sure the pick is pushed to the front of the claw before installation.
Lift the claw directly above the lamp cap and rotate it 90° to the side, then
point the Barn Doors at the other three slots on the lamp cap, place it into
the slots from top to bottom, then lift the socket directly above and rotate
it to the front.
