No Code Description
1 630-9080 Hose Weight
2 570-0007 Easy Out Jogger
3 630-9005 Flow Control Valve
4 630-6210 1m Unifit Hose
5 630-9068 Diaphragm Round
6 630-9069 Inlet Plate
7 630-9079 Cartridge
8 630-9067 Inner Tube
9 630-9083 Main Body
10 630-9073 Shroud
11 630-9078 Float Set
12 630-9072 Deflector Wheel
13 630-9085 Outer Tube
14 630-9070 Flexi Foot
15 630-9071 Finned Disc
SPLASHER Components

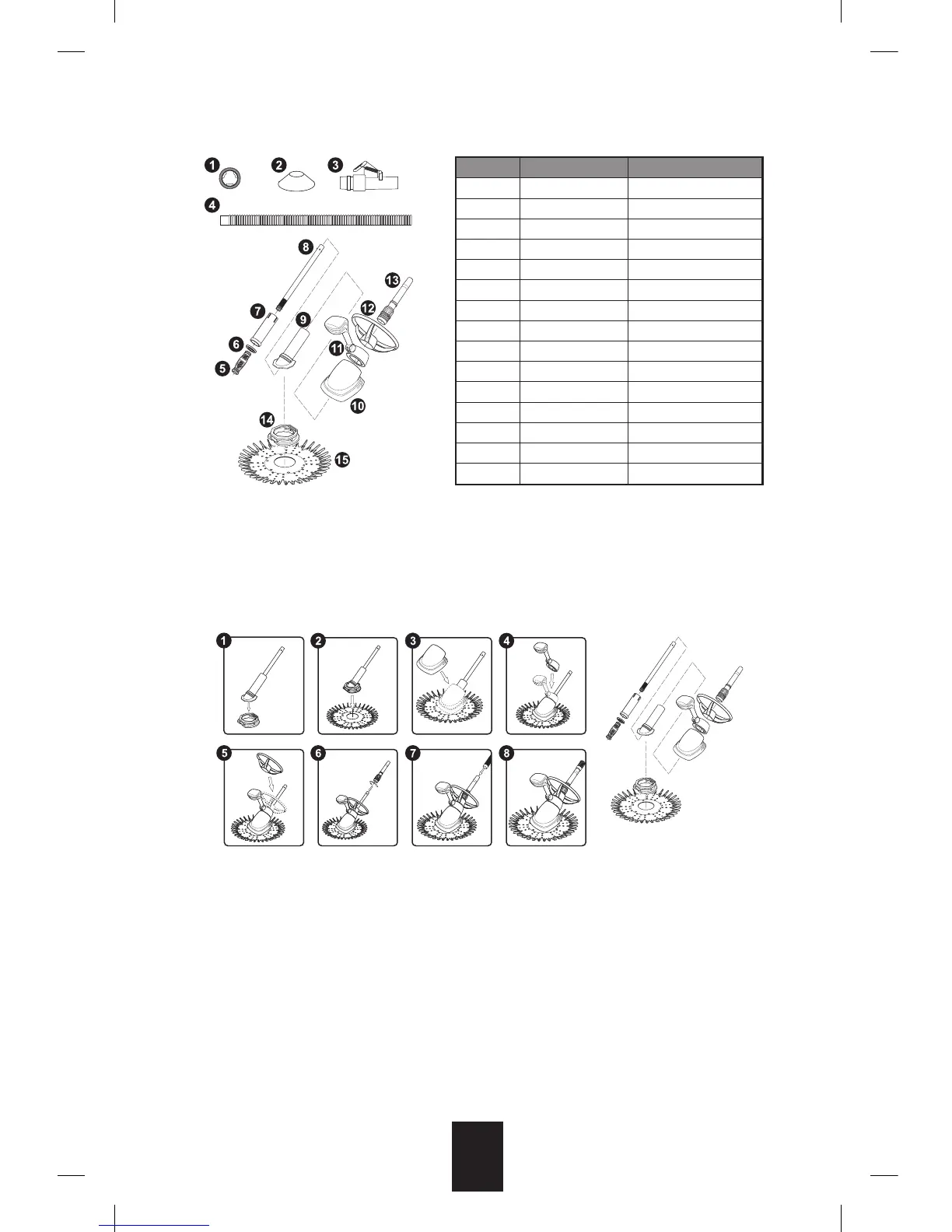

SPLASHER Components and Spare Parts diagram
EASY OUT JOGGER CONE:
Place Easy Out Jogger between 2nd and 3rd hose length, small side facing the weir and the bigger side
facing the cleaner. The Easy Out Jogger Cone will sit/lie on top of the water
1. Fit the flexi foot to the cleaner main body, ensuring the main body lower flange is properly secured into the
flexi foot locating groove (picture 1)
2. Place the inner top of the fined disc onto the flexi foot pad flange and peel over until the disc is secure
between the flange and top of the flexi foot pad. The fins of the disc and the word “TOP” should face the
cleaner main body. (picture 2)
3. Place the cleaner shroud (Silver) over the inner tube and slide down onto the main body. The main body
has a location key that needs to align with a groove within the shroud. This ensures the shroud is installed
correctly. (picture 3)
4. Place the cleaner float assembly over the inner tube and on top of the shroud. This also needs to be aligned
to the main body location key. (picture 4)
SPLASHER ASSEMBLY
