Series SC
Installation, Operation,and
Maintenance Manual





Parts Diagrams

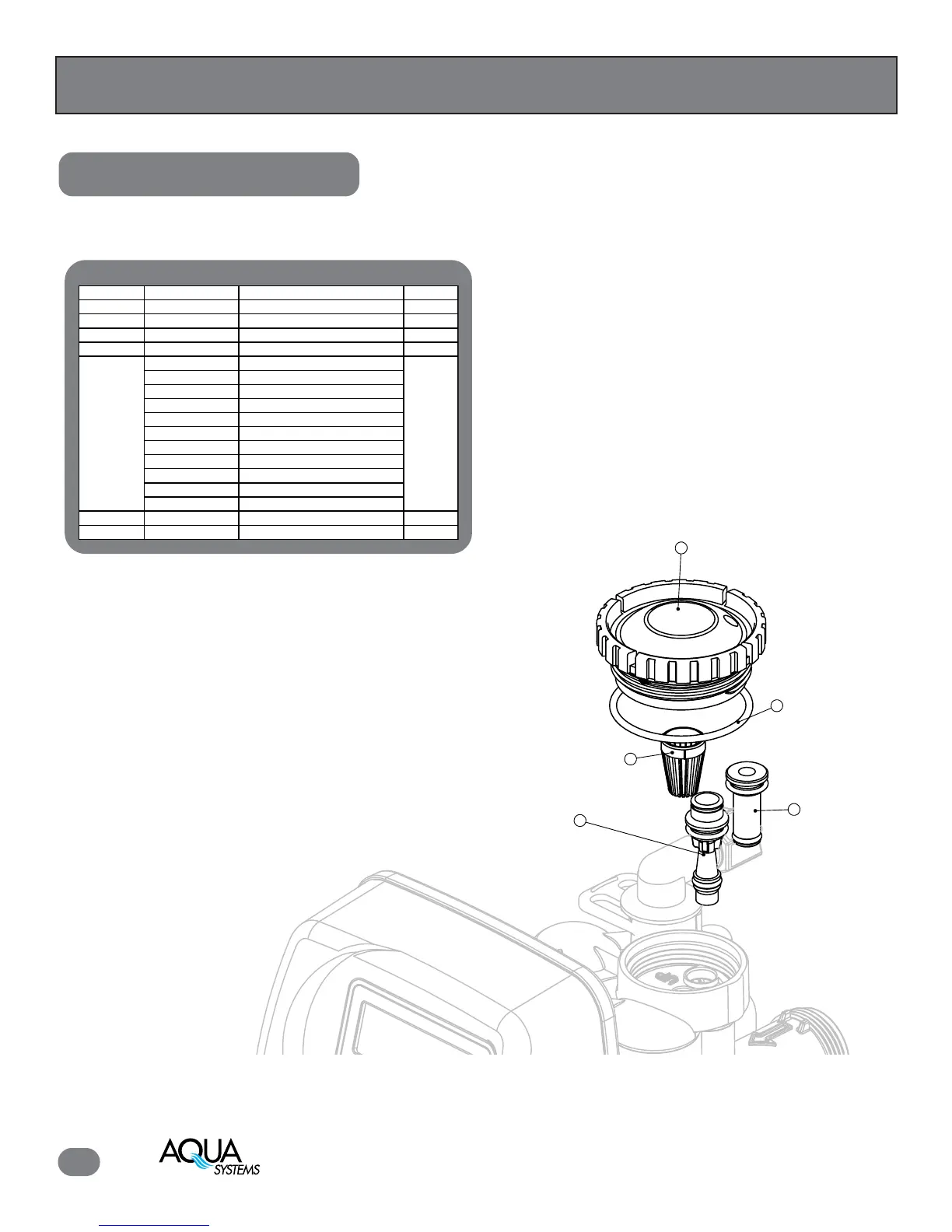

Injector Assy
No.Part No. Description Qty.
1 02910163 Injector Cap 1
2 02910149 O-Ring 135 1
3 02910164 Injector Screen 1
4 02910123 Injector Assy Z Plug 1
02910112 Injector Assy A Black
02910113 Injector Assy B Brown
02910114 Injector Assy C Violet
02910115 Injector Assy D Red
02910116 Injector Assy E White
5 02910117 Injector Assy F Blue 1
02910118 Injector Assy G Yellow
02910119 Injector Assy H Green
02910120 Injector Assy I Orange
02910121 Injector Assy J Light Blue
02910122 Injector Assy K Light Green
Not Shown 02910158 O-Ring 11 (Injector) 1
Not Shown 02910159 O-Rin
g
13
(
In
j
ector
)
1
