Series SC
Installation, Operation,and
Maintenance Manual








Parts Diagrams

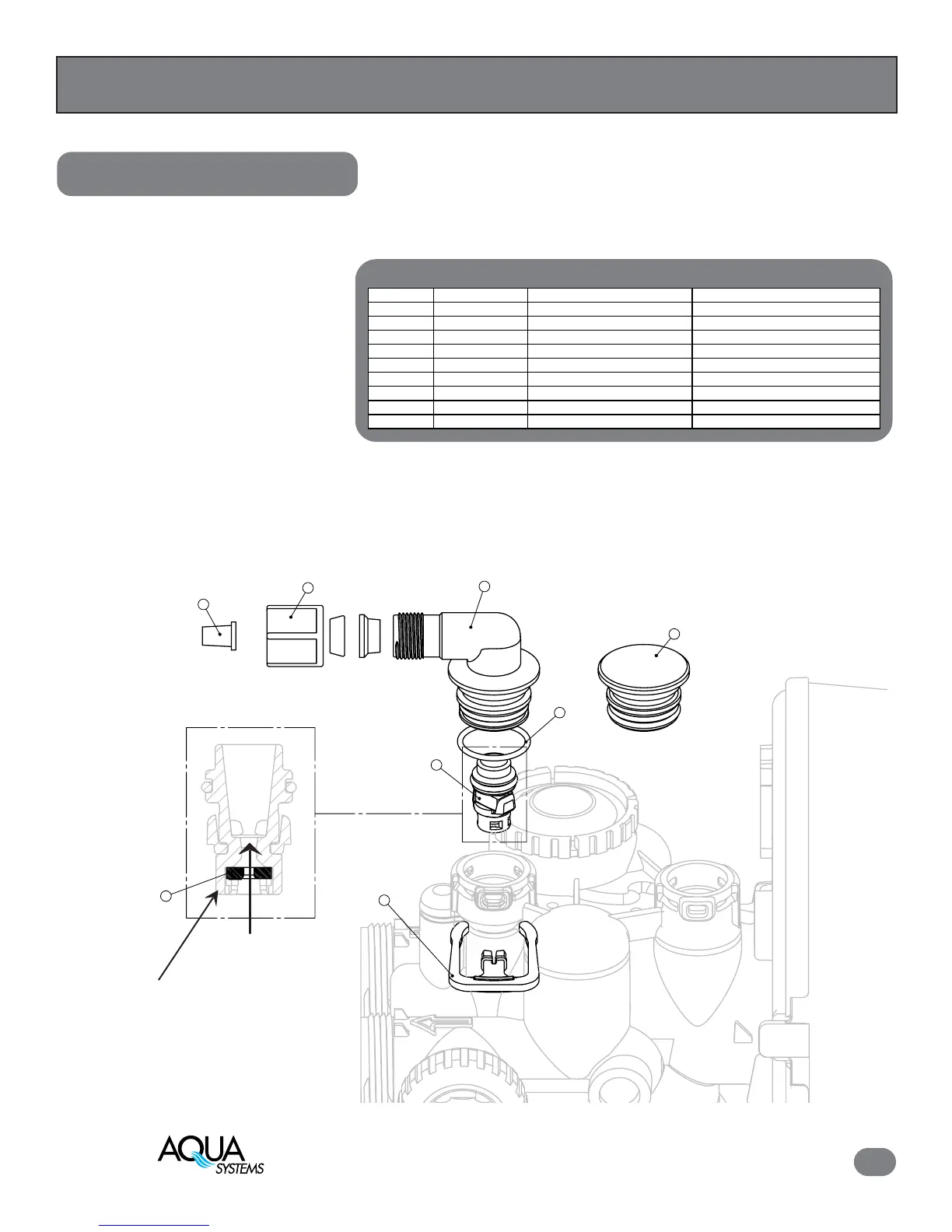

Refill Port
No. Part No. Description Qty.
1 02910173 Refill Port Plug Assy Required for Backwash Only Systems
2 03310730 Elbow Locking Clip 1
3 03310738 Polytube Insert 3/8" 1
4 03310732 Nut 3/8" 1
5 03310740 Elbow Cap 1
6 02910154 O-Ring 019 1
7 02910155 Refill Flow Control Retainer Assy 1
8 02910167 Refill Flow Control 1
Not Shown 03310725 Elbow 1/2" w/ Nut and Insert Option
Water
Flow
Proper Refill Flow Control
orientation directs water
flow towards the washer
face with rounded edge
and text.
