Series SC
Installation, Operation,and
Maintenance Manual







Parts Diagrams

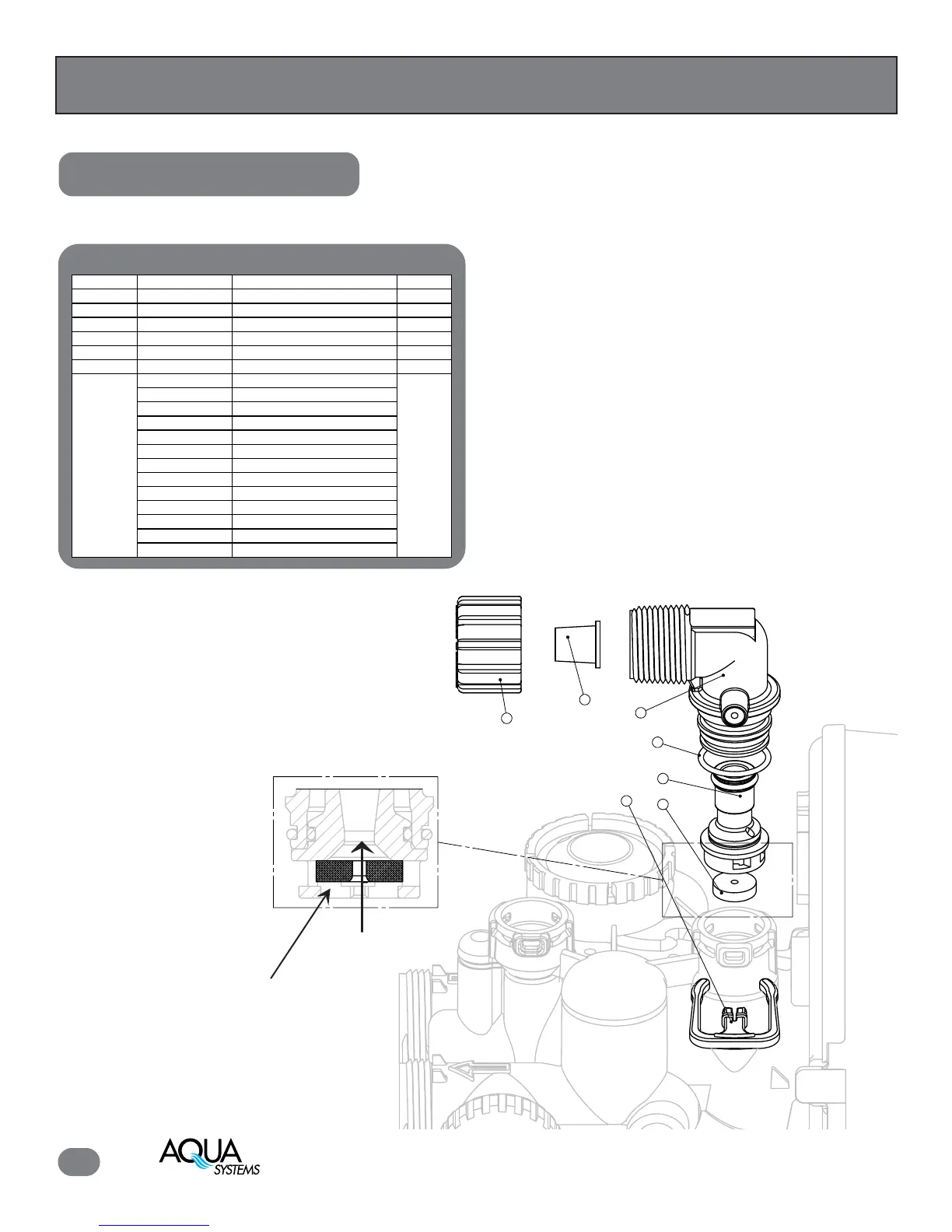

3/4” Drain Assy
No.Part No. Description Qty.
1 03310730 Elbow Locking Clip 1
2 02950122 Polytube Insert 5/8" 1
3 02950121 Nut 3/4" Drain Elbow 1
4 02910152 Drain Elbow 3/4" Male Assy 1
5 02910154 O-Ring 019 1
6 02910153 DLFC Retainer Assy 1
02950124 DLFC 0.7 gpm for 3/4"
02950125 DLFC 1.0 gpm for 3/4"
02950126 DLFC 1.3 gpm for 3/4"
02950127 DLFC 1.7 gpm for 3/4" One
02950128 DLFC 2.2 gpm for 3/4" DLFC
02950129 DLFC 2.7 gpm for 3/4" must be
7 02950130 DLFC 3.2 gpm for 3/4" used if
02950131 DLFC 4.2 gpm for 3/4" 3/4"
02950132 DLFC 5.3 gpm for 3/4" fitting is
02950133 DLFC 6.5 gpm for 3/4" used
02950134 DLFC 7.5 gpm for 3/4"
02950135 DLFC 9.0 gpm for 3/4"
02950136 DLFC 10.0
g
pm for 3/4"
Water
Flow
Proper Drain Line Flow Con-
trol orientation directs water
flow towards the washer face
with rounded edge and text.
