Series SC
Installation, Operation,and
Maintenance Manual

















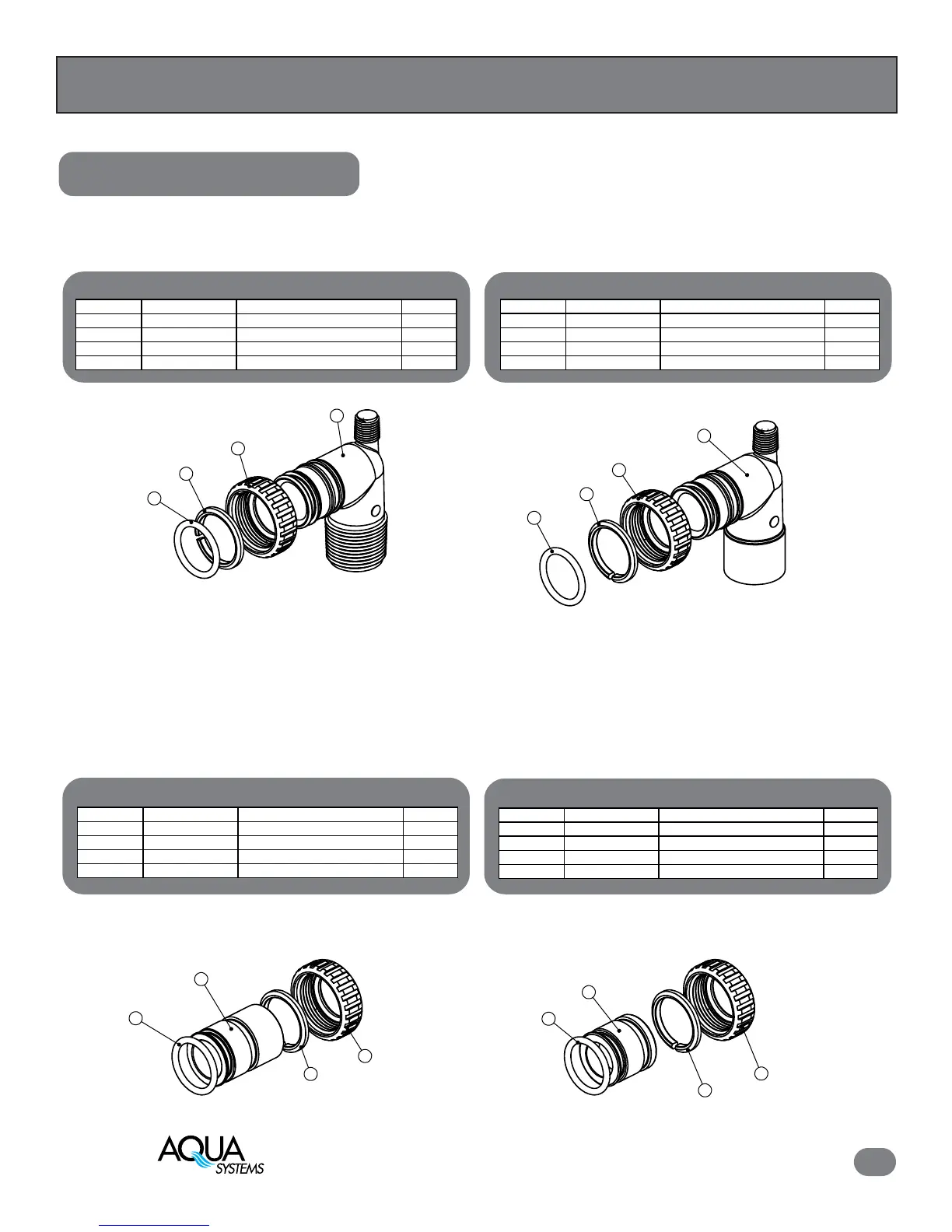

Parts Diagrams
1” Brass Sweat Assy
3/4” Brass Sweat Assy
1” PVC Male NPT Elbow Assy
3/4” & 1” PVC Solvent Elbow Assy
No. Part No. Description Qty.
1 02910148 Nut 1" Quick Connect 2
2 02910147 Split Ring 2
3 02910126 O-Ring 215 2
4 02910146 Fittin
g
1" PVC Male NPT Elbow 2
No. Part No. Description Qty.
1 02910148 Nut 1" Quick Connect 2
2 02910147 Split Ring 2
3 02910126 O-Ring 215 2
4 02910172 Fittin
g
3/4" & 1" PVC Solvent 90 2
No. Part No. Description Qty.
1 02910148 Nut 1" Quick Connect 2
2 02910147 Split Ring 2
3 02910126 O-Ring 215 2
4 02910170 Fittin
g
1" Brass Sweat 2
No. Part No. Description Qty.
1 02910148 Nut 1" Quick Connect 2
2 02910147 Split Ring 2
3 02910126 O-Ring 215 2
4 02910171 Fittin
g
3/4" Brass Sweat 2
