Series SC
Installation, Operation,and
Maintenance Manual




















Parts Diagrams

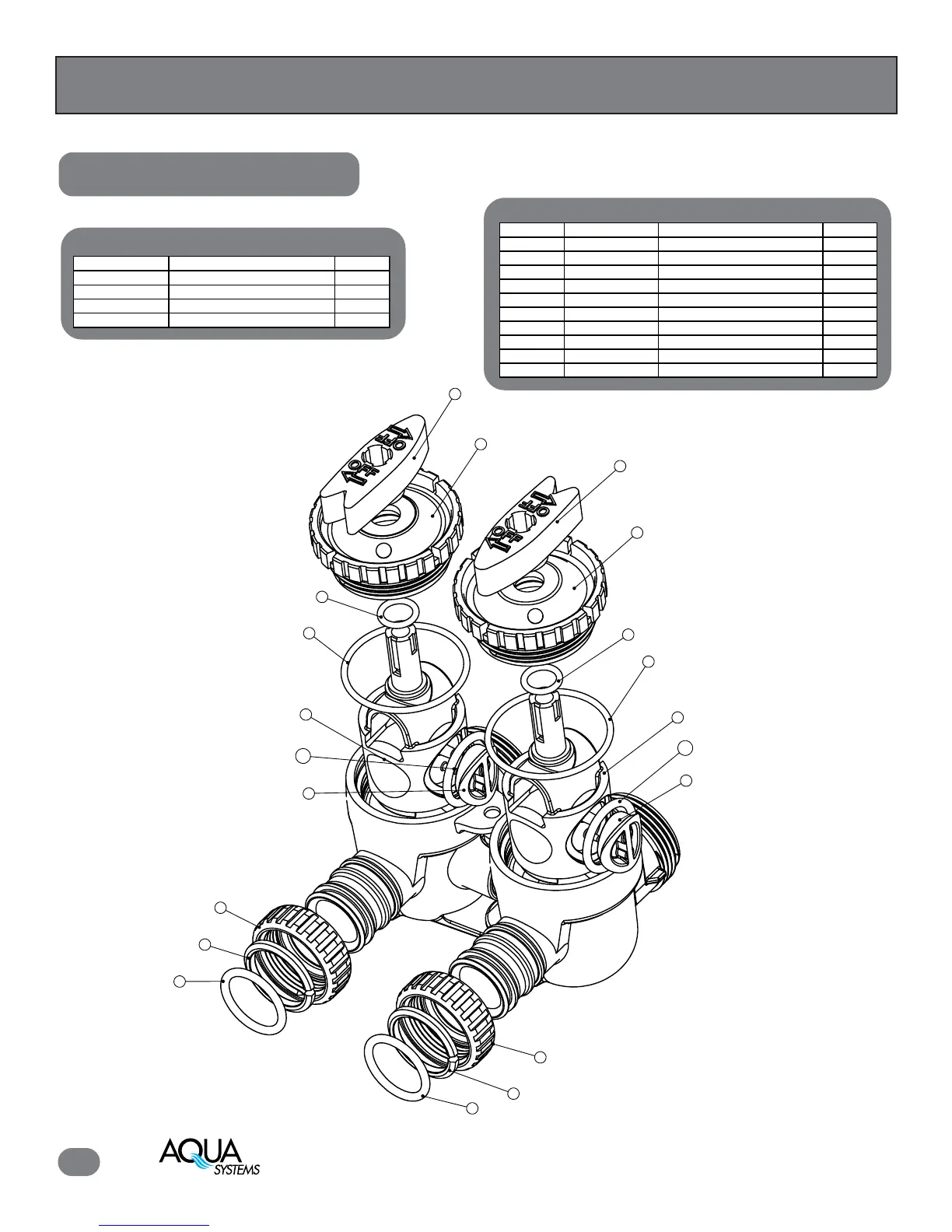

Bypass Valve
Vertical Adapter Assy (Not Shown)
Part No. Description Qty.
02910148 Nut 1" Quick Connect 2
02910147 Split Ring 2
02910126 O-Ring 215 2
02950120 B
y
pass Vertical Adapter Ass
y
2
No.Part No. Description Qty.
1 02910148 Nut 1" Quick Connect 2
2 02910147 Split Ring 2
3 02910126 O-Ring 215 2
4 02910142 Bypass 1" Rotor 2
5 02910143 Bypass Cap 2
6 02910187 Bypass Handle Gray 2
7 02910144 Bypass Rotor Seal Retainer 2
8 02910149 O-Ring 135 2
9 02910150 O-Ring 112 2
10 02910151 O-Rin
g
214 2
