18/09/15 Rev 3.4 70

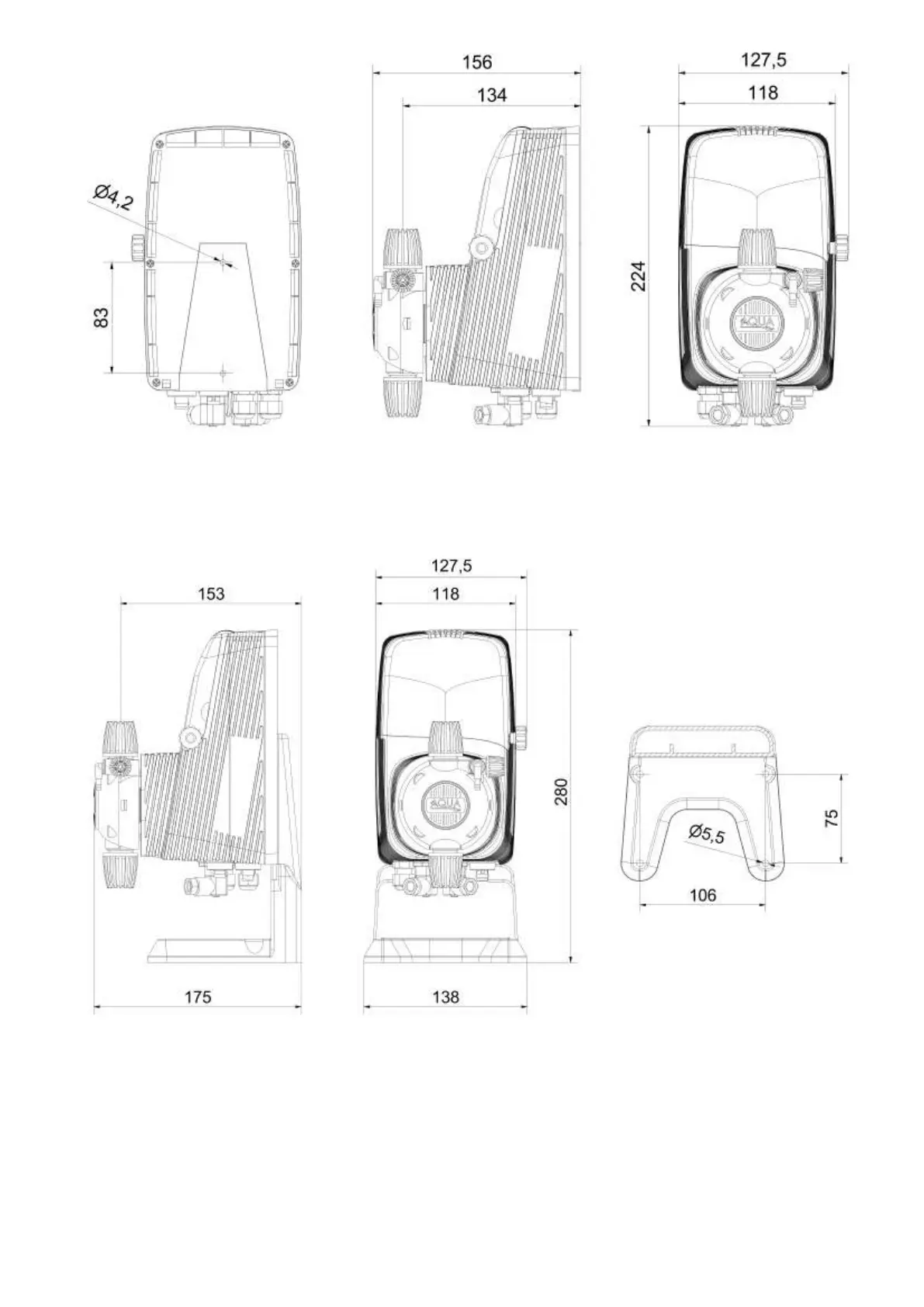

Fig. 9 SERIE “HC151” A MURO / WALL MOUNTING / VERSION A PAROI / VERCION A PARED
/ WANDMONTAGE / 
Fig. 10 SERIE “HC151” CON BASE / BASE MOUNTING / VERSION AVEC BASE
VERSION CON SOPORTE PARA MONTAJE ORIZONTAL / MIT BASIS /  
