Fig. 2/a - Injection
valve

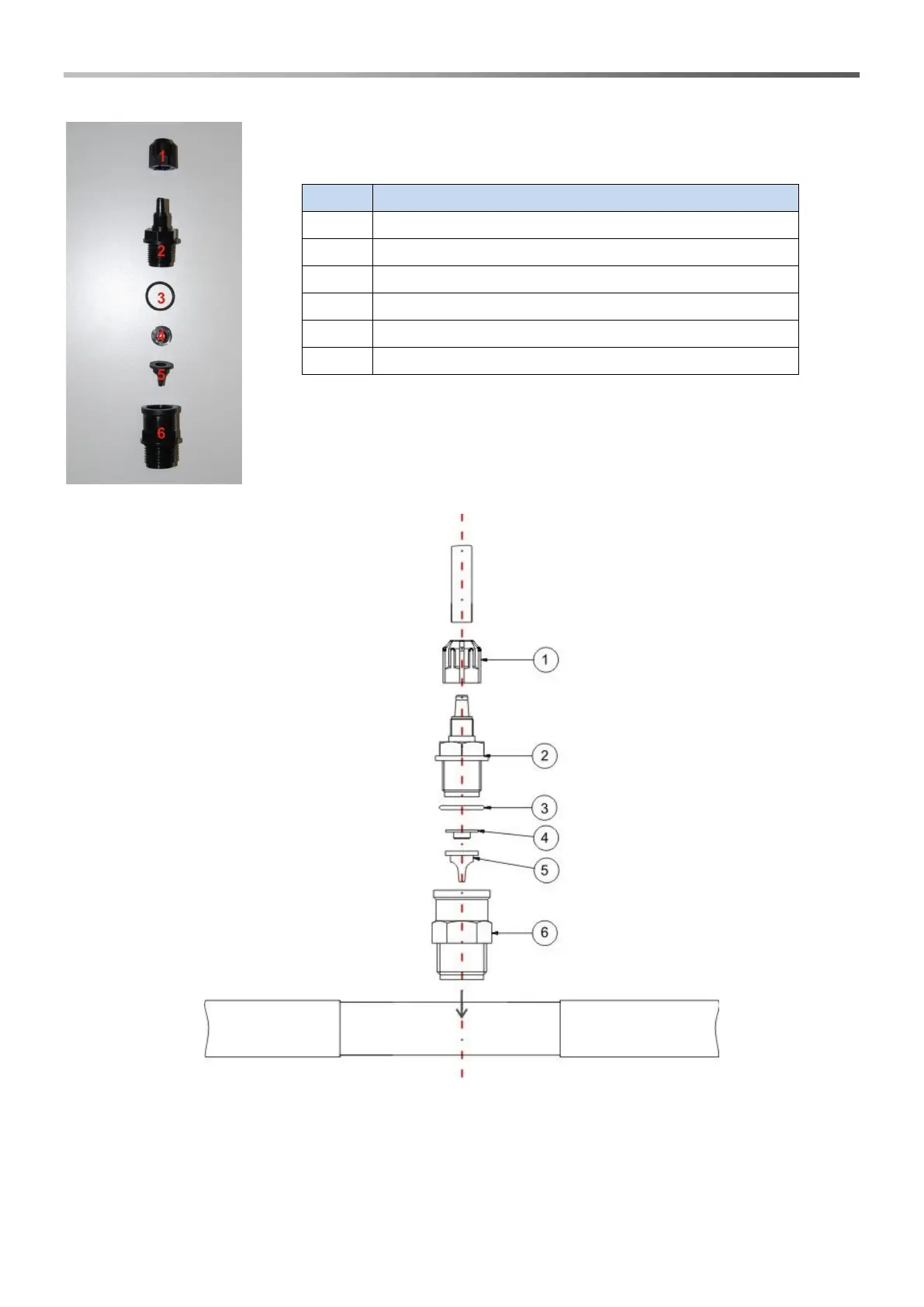

Fig. 2/b - Injection valve assembly
Ref.
Description
1
Black PP pipe clip 1/8" 4x6 STD (code ADSP5004001E )
2
Black PP Pump body fitting 3/8" 4x6 (code ADSP5005001E )
3
Black Viton O-ring (code ADSP5007001E )
4
STD Valve thrust (code ADSP5007005 )
5
Black STD Viton duckbill valve (code ADSP5001001 )
6
3/8" Female 1/2" Male PP fitting (code ADSP6000074 )
