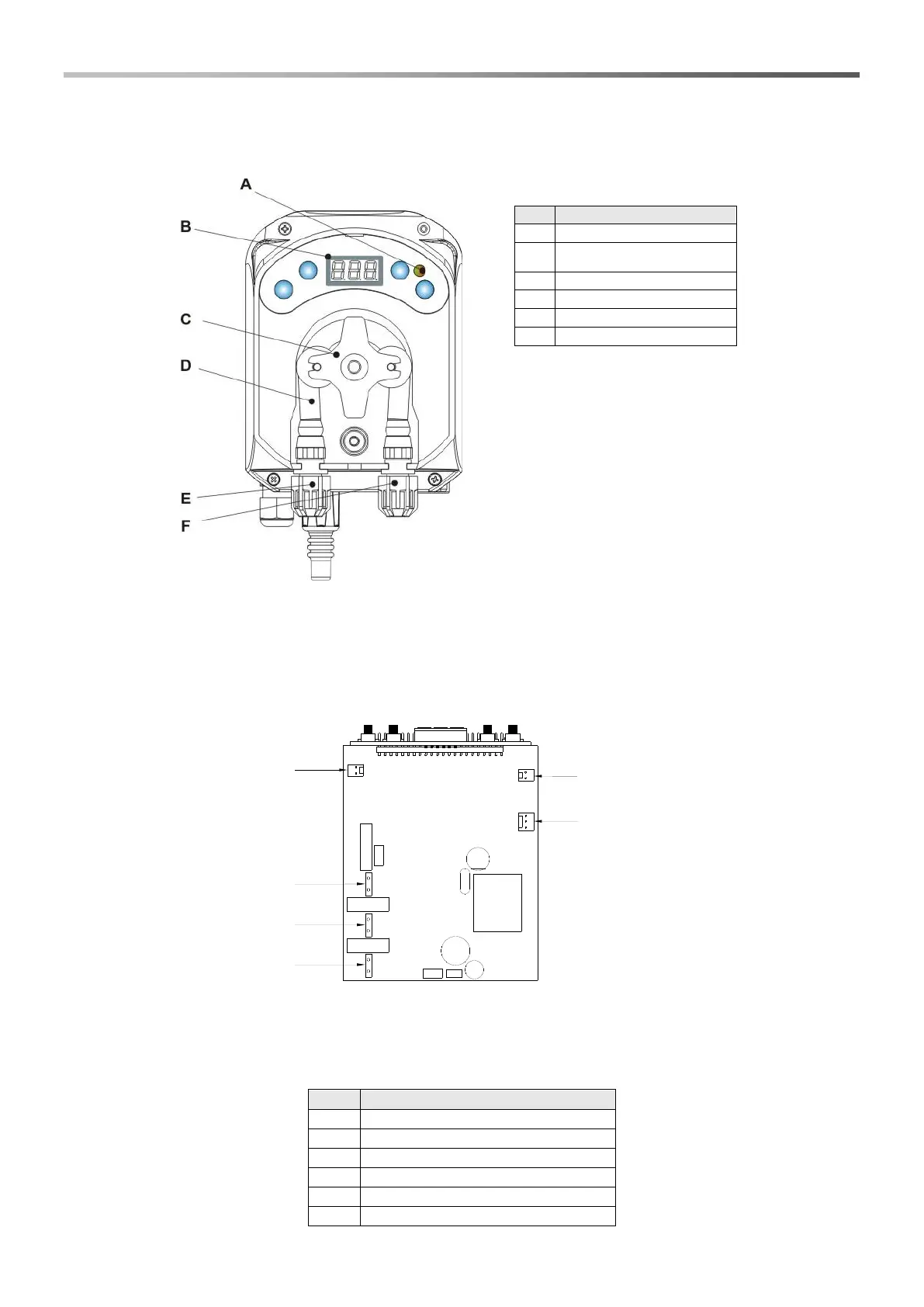

ANNEX B - Reference Figures
Electronic Board layout
(1)
(2)
(3)
(4)
(5)
(6)
Ref.
Description
A
Two-coloured LED
B
3-digit display with 7
segments
C
Roll-holder
D
Peristaltic tube
E
Intake fitting
F
Delivery fitting
Ref.
Description
1
Equipment Power Supply Connector
2
Inhibiting signal connector
3
Motor connector
4
Level Connector
5
Buzzer Connector
6
Switch Connector
