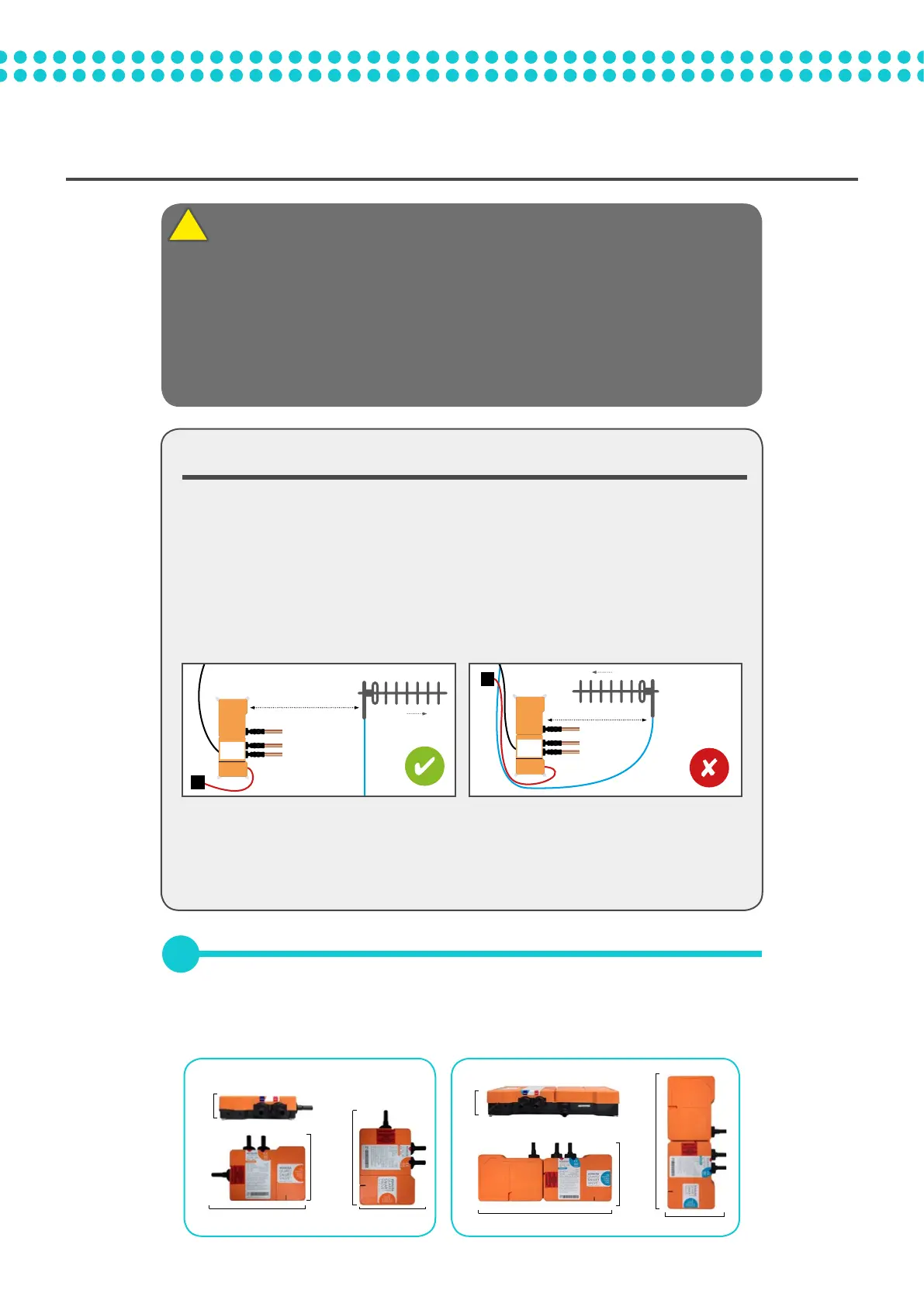

Quartz™ Bath Installation Guide 06
QUARTZ
™
BATH INSTALLATION
This product must be installed by a competent person in accordance with the relevant
Water Supply Regulations.
Prior to installation, ensure all additional guides supplied with this product are read and
understood.
In addition to the guide below, it is essential that the important information (overleaf)
is read and understood and that you have all the necessary components before
commencing installation.
The Quartz™ bath system is supplied with universal fixings intended to secure the
Quartz Smart Valve™ to a suitable surface.
Although the Quartz Smart Valve
™
complies with all relevant EMC standards, if incorrectly
sited, it may interfere with digital TV reception. Please follow the recommendations below to
minimise this eect.
If TV interference is an issue a service kit is available (part no: 652102).
See recommended layouts below.
Images of Quartz Smart Valve
™
for illustration only, refer to instruction 1 for orientation.
Valve colour may vary – the Original Quartz
™
valve being black, and the Quartz Smart Valve
™
being orange.
• Route cables separately, and as far apart from each other as possible.
• Aerial to point away from the Quartz Smart Valve
™
.
• Ensure the distance between the Quartz Smart Valve
™
and the aerial is as large as possible.
DIGITAL TV INTERFERENCE
AERIAL
LARGEST POSSIBLE DISTANCE
DATA
CABLE
POWER
CABLE
CABLE
TO TV
HIGH PROBABILITY
OF INTERFERENCE,
BOTH RADIATED
AND CONDUCTED
POWER
CABLE
CABLE
TO TV
DATA
CABLE
AERIAL
SHORT DISTANCE
LAYOUT WHICH COULD CAUSE PROBLEMSLOWEST PROBABILITY OF INTERFERENCE
1
To ensure safe operation and installation of this product, the Quartz Smart Valve
™
MUST be
installed in one of the orientations shown.
300 mm
210 mm
70 mm
300 mm
210 mm
210 mm
450 mm
450 mm
70 mm
To Next Page
