Assembly and Parts, Cont.
Drive End Cap Assembly

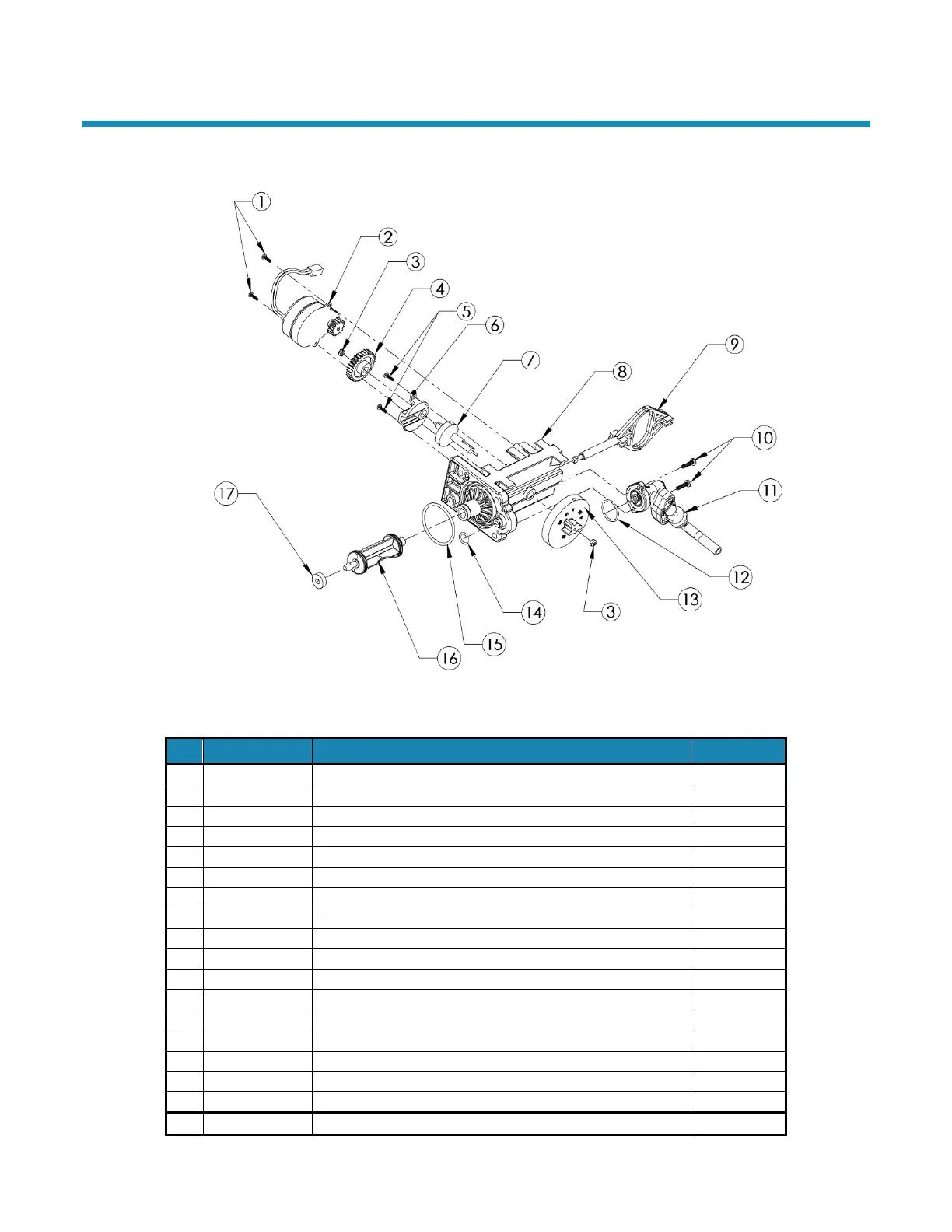

Figure 15: Drive End Cap Assembly
Part #
Description
Quantity
1
100238196
Screw, self-tapping
2
2
100238181
Drive Motor
1
3
100238190
1/4-inch Hex Nut
2
4
100238188
Drive Gear
1
5
100241861
Screw, self-tapping, Cam Cover
2
6
100241941
Piston Slide Cam Cover
1
7
100241940
Piston Slide Cam
1
8
100037805
Drive End Cap
1
9
100240958
Piston Slide
1
10
100238197
Screw, self-tapping
2
11
100241120
Brine Valve Assembly
1
12
100241867
O-Ring
1
13
100241057
Magnet Disk Assembly
1
14
100241869
O-Ring
1
15
100241865
O-Ring
1
16
100238189
Drive Piston Assembly
1
17
100242051
Drain Gasket
1
100252693
Entire Assembly (all of the above parts except 1, 2, and 13)
