Assembly and Parts, Cont.
Safety Shutoff Valve Elbow Installation

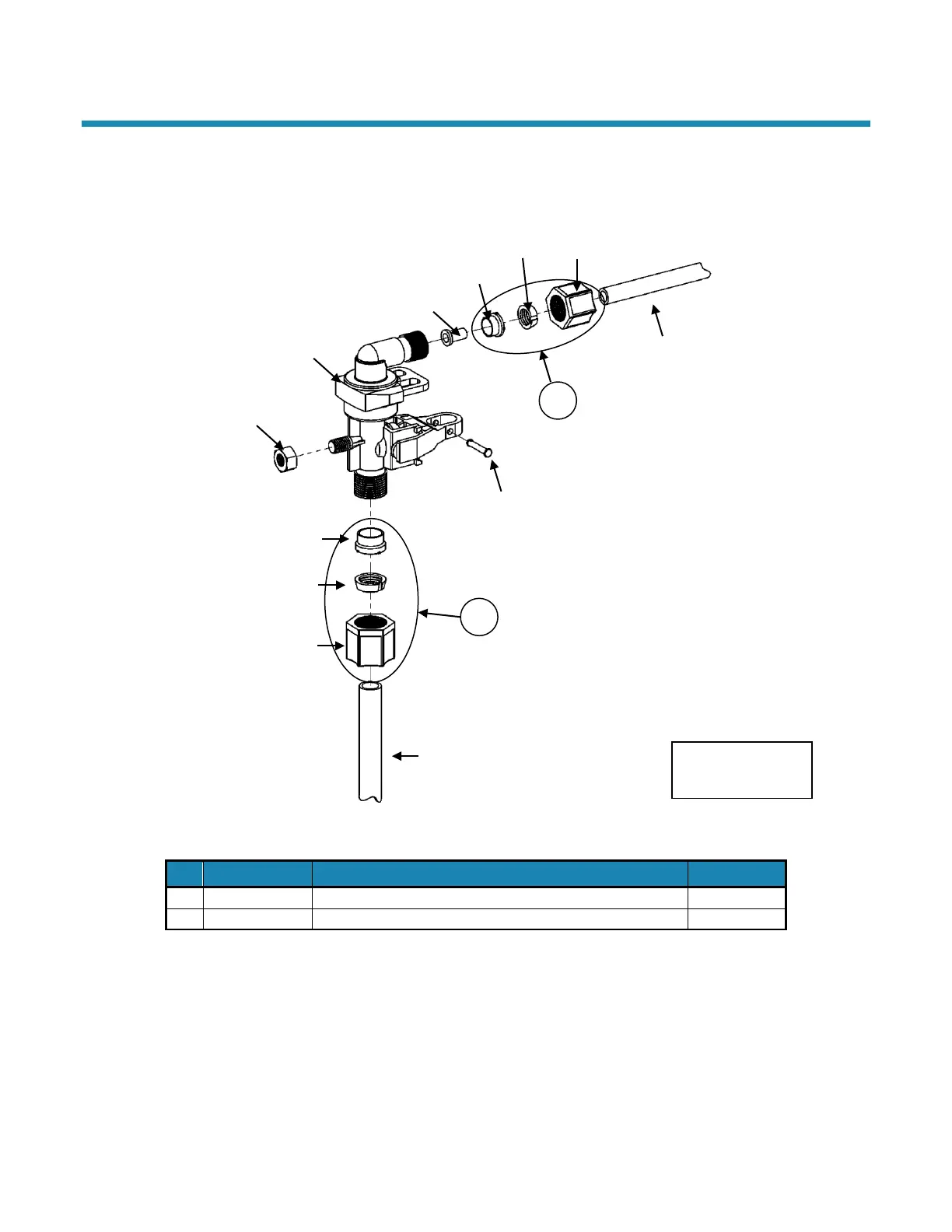

Figure 19: Safety Shutoff Valve Elbow Installation
Part #
Description
Quantity
1
100237978
1/2-inch (13-mm) Compression Assembly
1
2
100237983
3/8-inch (10-mm) Compression Assembly
1
The nut, gripper, and retainer sleeve are a three-piece assembly that can come apart if removed from the elbow
body. Parts must be reassembled exactly as shown to function properly.
When connecting the 3/8-inch (10-mm) poly tube, first assemble the nut, gripper, and retainer sleeve on the
tubing. Then insert the plastic insert. Screw the nut on the elbow body. With a wrench, tighten the nut securely
to create a water-tight connection.
3/8-inch Poly Tube
3/8-inch Nut
3/8-inch Plastic Gripper
3/8-inch Retainer Sleeve
3/8-inch Plastic Insert
2
Safety Shutoff Valve
Hex Nut
1
1/2-inch Retainer Sleeve
1/2-inch Plastic Gripper
1/2-inch
Nut
Air Check/Draw
T b
Wrist Pin
3/8-inch = 10 mm
1/2-inch = 13 mm
