AQUASURE HARMONY SERIES

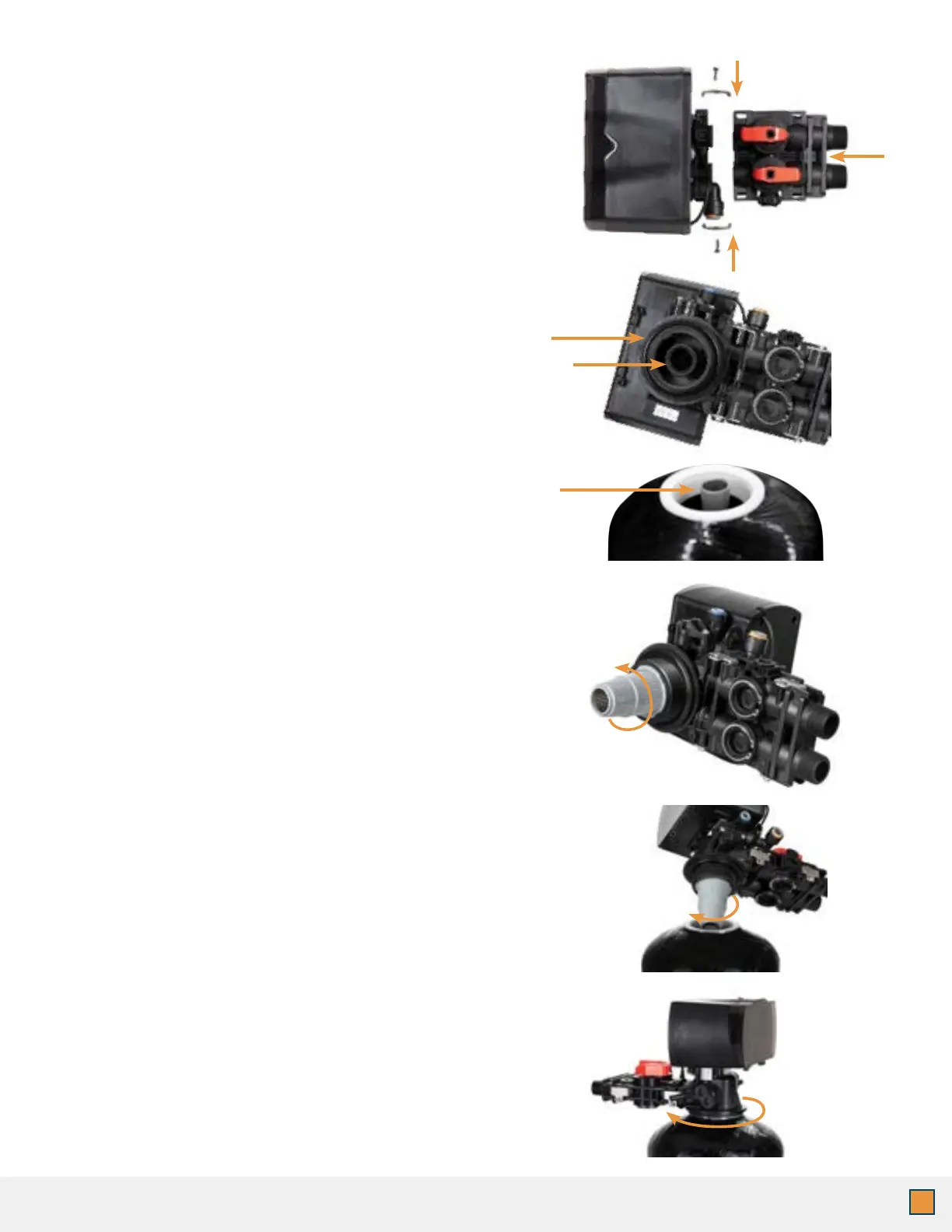

STEP 2. Mounting the Control Valve
2. Make sure the o-rings are lubricated before
installing. Lubricate both O-rings on the bottom
of the control valve (inner and outer).
1. Attach the bypass valve onto the control head
and secure it with the metal plates. Make sure
the o-rings are lubricated before connecting.
(Silicone Grease recommended as lubricant.)
5. Place the upper basket over the distributor tube
and push the valve on the tank. Thread the valve
on the tank by turning it clockwise. Be sure not
to cross-thread the valve on the tank. The valve
should thread easily in the tank. If not, it may be
cross-threaded.
DO NOT LUBRICATE as you may over-tighten
the valve.
3. Lubricate the riser tube located on the opening
of the tank. Make sure riser tube is ush with
the top of the tank.
6. Tighten the valve hand tight, then snug it
further by tapping it with the palm of the hand.
DO NOT use tools to tighten the valve or
damage could occur.
4. Install the upper basket on the bottom of the
valve by lining up the tabs, pressing in, then
turning the basket counterclockwise to lock it in
place.
