3.4.3 Probe Interface
The Power switch on the interface activates the interface (ON) and deactivates the interface and probe (OFF).
A separate key on the interface enables the laser. A momentary switch initiates the laser on sequence. If the
fiber optic cables are not sensed or the probe does not respond within a preset time – as would be the case if
the interconnecting fiber optic cables are not fully installed or damaged - the laser is turned off as a safety
precaution.
Front panel indicators show that the AC power is applied, when the interface’s laser is on, F/O cable
connection status and that the probe is responding.

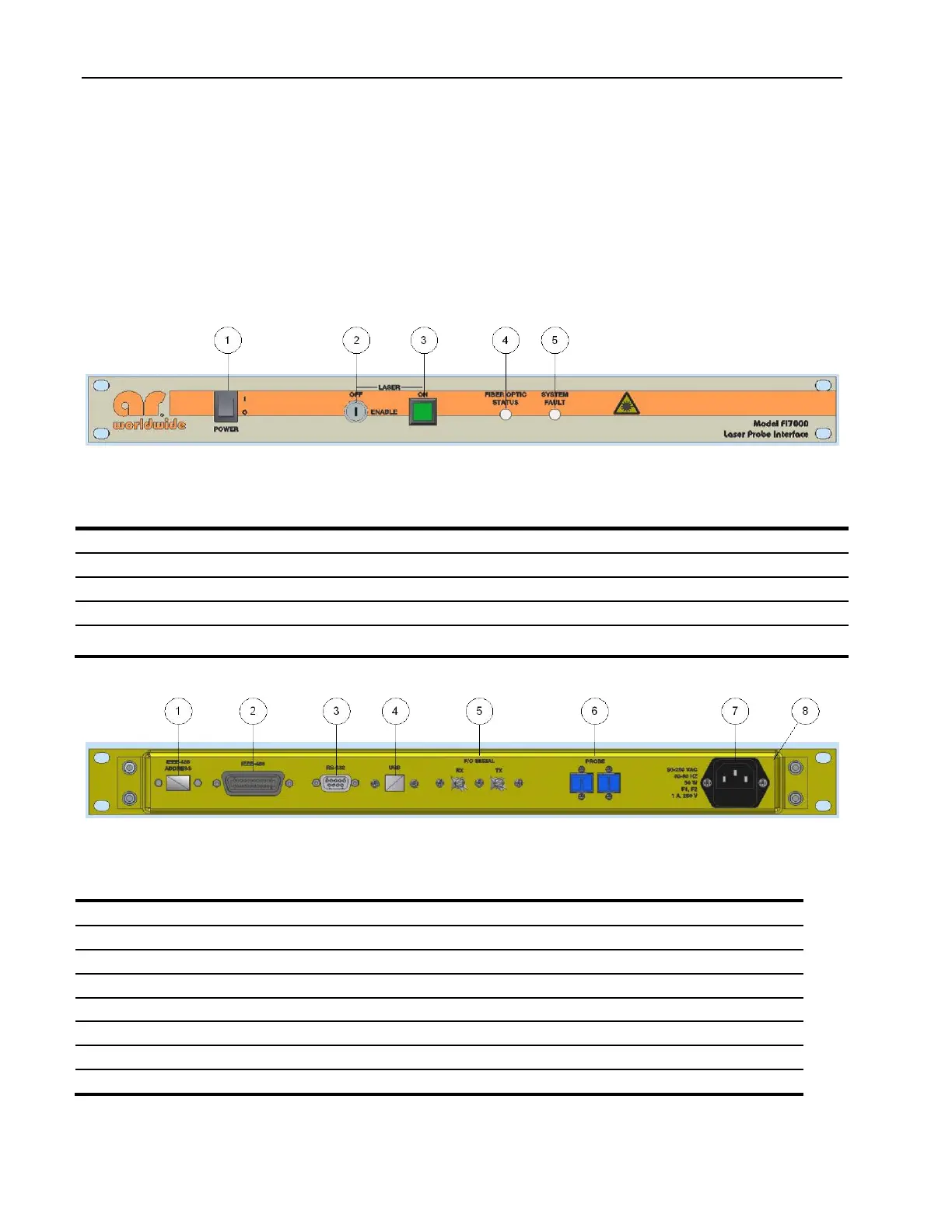

Figure 3-3: Interface Assembly Front Panel Features
Table 3-3 Interface Assembly Front Panel Features
Label
Title
Function
1
Power switch
Turns on the probe kit and illuminates to indicate that prime power is applied.
2
Key Switch
Enables the laser power supply.
3
Laser On Switch
Illuminated momentary switch to start laser on sequence. Switch is illuminated when laser is on.
4
F/O Status LED
Illuminates Green when F/O connection is sensed. Illuminates Red if cable fault is present.
5
System Fault LED
Illuminates Red if probe communication is terminated and F/O cable is still sensed. Off indicates
safe condition (no faults).
Figure 3-4. Probe Interface Assembly Rear Panel Features
Table 3-4. Probe Interface Assembly Rear Panel Features
Label
Title
Function
1
GPIB Address Switch
Sets device address for GPIB communication
2
GPIB (IEEE-488) Connector
GPIB connector to host
3
RS-232 connector
RS-232 Connector to host
4
USB Connector
Universal Serial buss connector to host
5
F/O Serial
F/O serial for connection to FM7004
6
Probe F/O Connection
(2) duplex E2000 F/O
7
Power
AC power input cable
8
Housing
Protects and shields the electronic components
