FL7006/FL7030/FL7218/FL7040/FL7060Kit
18 Rev J
3.4 PROBE KIT APPEARANCE AND FEATURES
3.4.1 FL 7006 and FL7030 Probe

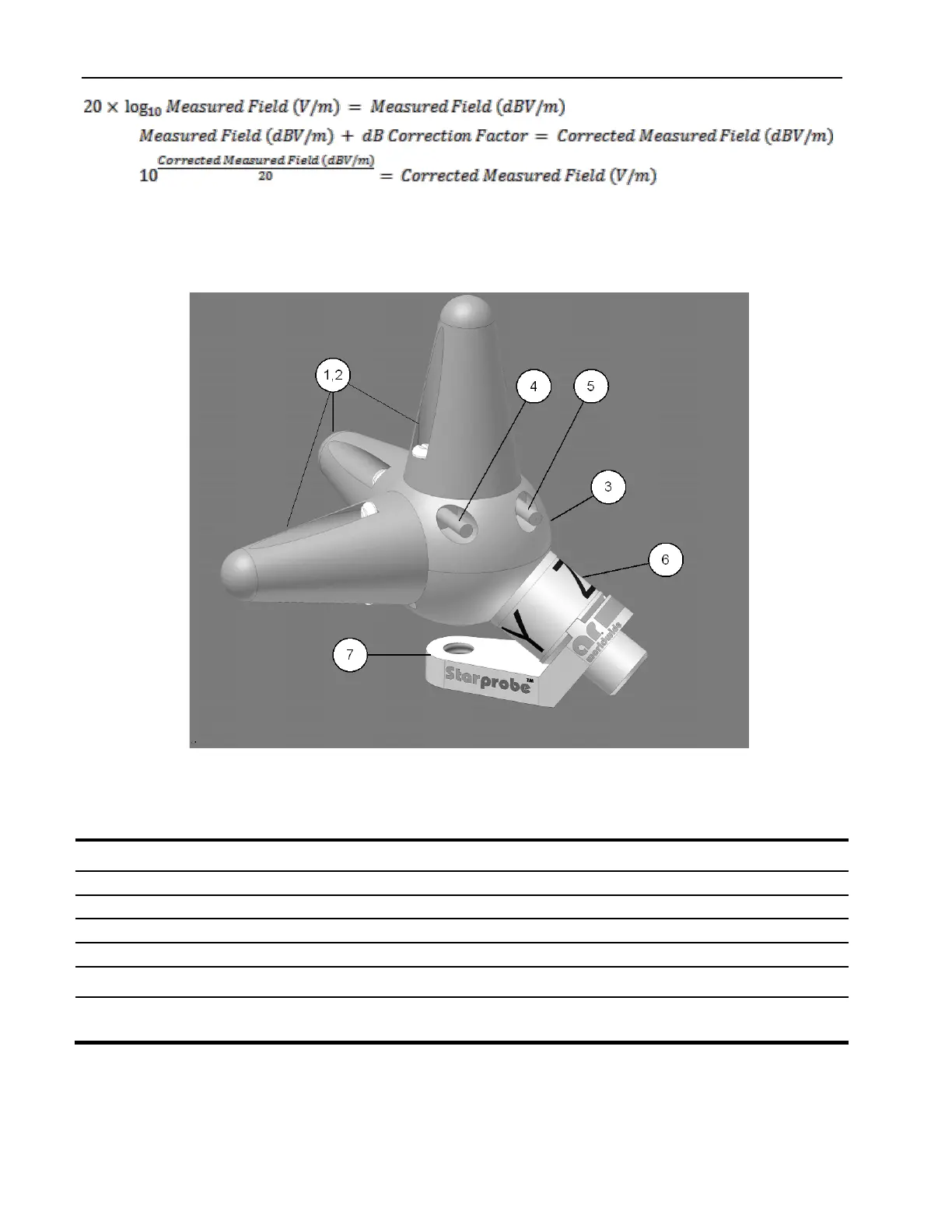

Figure 3-1: FL7006 and FL7030 Probe Features
Table 3-1. FL7006 and FL7030 Probe Features
Label
Title
Function
1
Sensor elements
Three antennas sensor elements to sense electric field. Each includes one or more diode
detectors.
2
Radomes
Protects and supports the sensors
3
Housing
Protects and shields the probe electronic components
4
Fiber Optic Cable L
Routes laser (optical) power and commands to probe
5
Fiber Optic Cable X
Routes (optical) transmit data from probe
6
Probe Base
Provides mount via ¼ -20 screw. Rotation about screw axis brings each sensor through the
same position.
7
Mounting Adapter
For mounting probe with a selected sensor axis aligned to a mounting screw axis. This is the
normal mounting position when the probe is used to measure individual field axis (X,Y,Z)
components.
