Decide where in room cabinet will be placed. An electrical outlet should be part of this consideration.
Locate stud behind wall. (Stud finders are available at your local hardware store)
Center cabinet to wall stud.
Place level on top of cabinet and shim to level maintaining minimal distance between back of cabinet
and wall is approximately 3/8”. Figure 18A.
Measure top of cabinet left to right, locate center and mark.
Install H16 Safety L-Bracket 2 using 2 pcs H17 Screws through 2 holes on the bracket to the top of
cabinet. See Figure 18B.
With a level cabinet, install 1 pc H18 Screw into other single hole on the bracket through dry wall and
into stud.
See Figure 18B.
Note: if use enclosed wall anchor, predrill a 1/8” hole into the wall for correct wall anchor installation.
1.
2.
3.
4.
5.
6.
7.

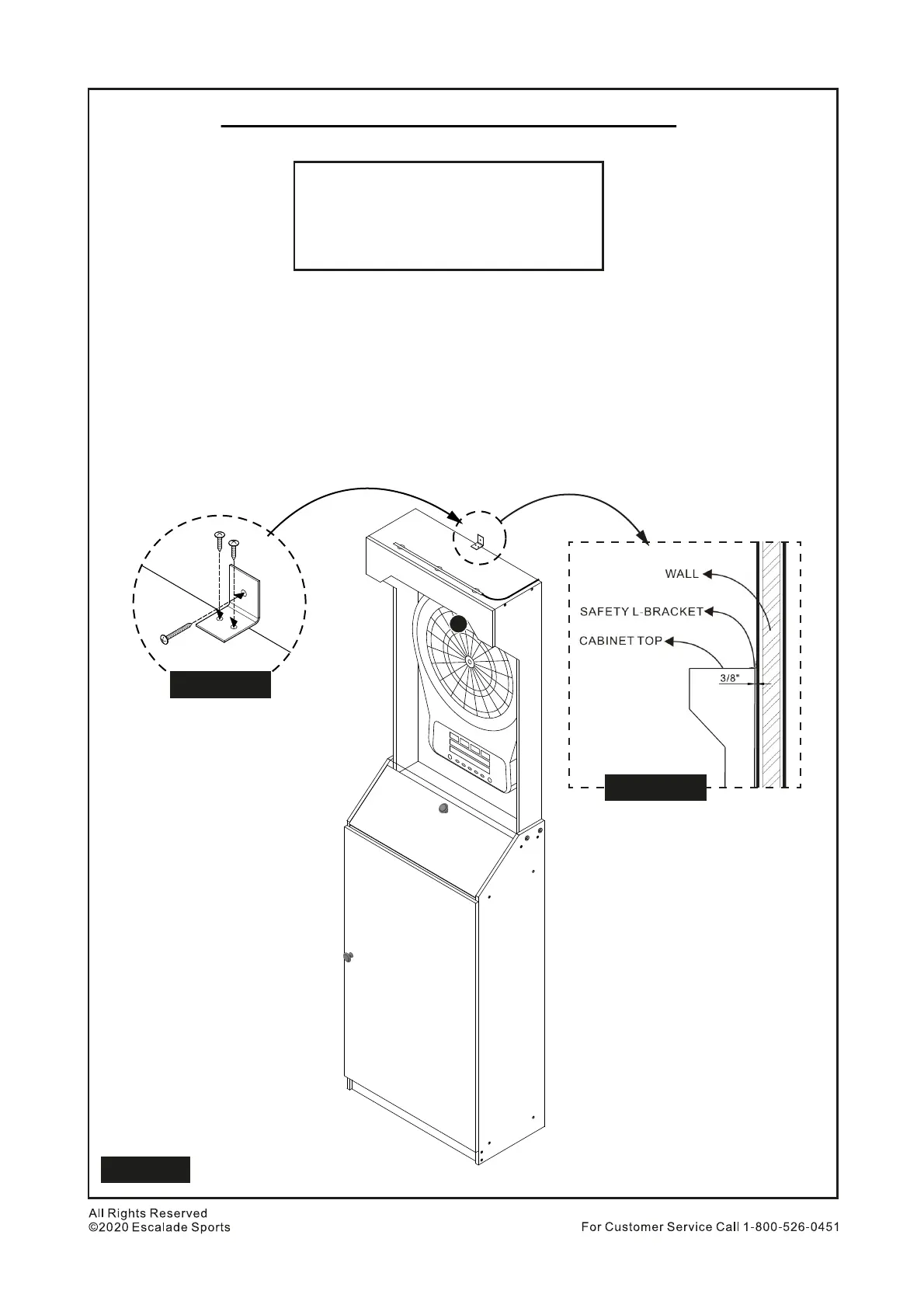

Figure 18
16
H16
H17
H18
Phillips Screw Driver
Safety L-Bracket - 1 pc
Phillips Round Head Screw - 2 pcs
Phillips Round Head Screw - 1 pc
PARTS REQUIRED
SAFETY L-BRACKET INSTALLATION GUIDE
Contractor installation recommended.
G
Figure 18B
Figure 18A
H18
H17
H17
H16
H16
