| 10 |

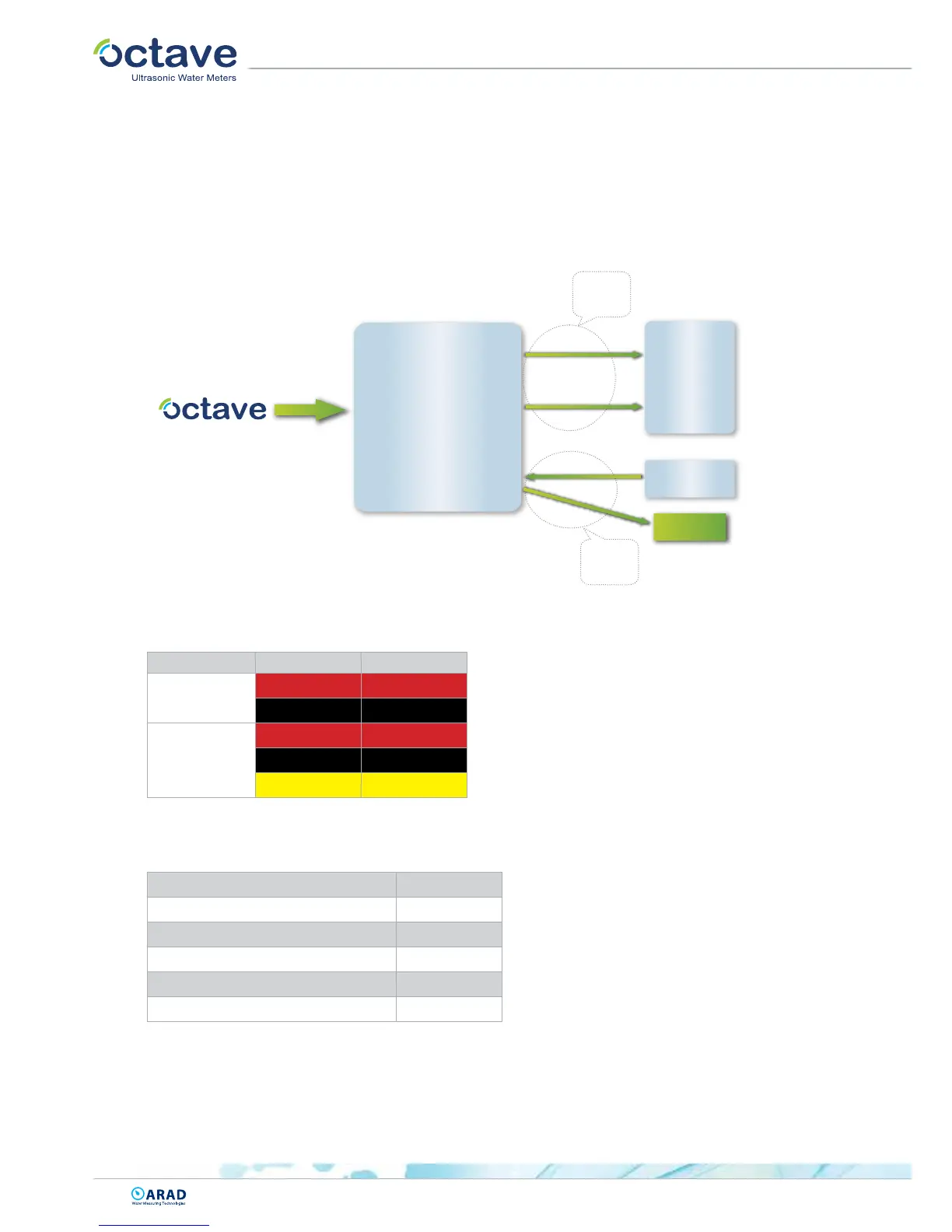

14.1.2 Dry Contact V1.1 Module Specication
Outputs Diagram
Cables
Wire Function
Long cable
Red + Orange Out#1
Black + Brown Out#2
Short cable*
Red 5-35V+
Black 5-35V-
Yellow Earth
* Signal connection polarity is mandatory!
Output Characteristics
Outputs Type Dry Contact
Cable Length - supplied 1.5/5 [meter]
Maximum Cable Length* 500 [meter]
Supply Voltage 5-35 [Vdc]
Switching Power max. 15 [Watt]
Life Expectancy 10^9 [Cycles]
* cable Teldor PN 8005003101 or similar
Octave
Dry Contact
v1.1
Short
Cable
Long
Cable
Read-out
instrument
EARTH
5-35 Vdc
Out#1
Out#2
