Arad Octave Installation Manual

| 11 |

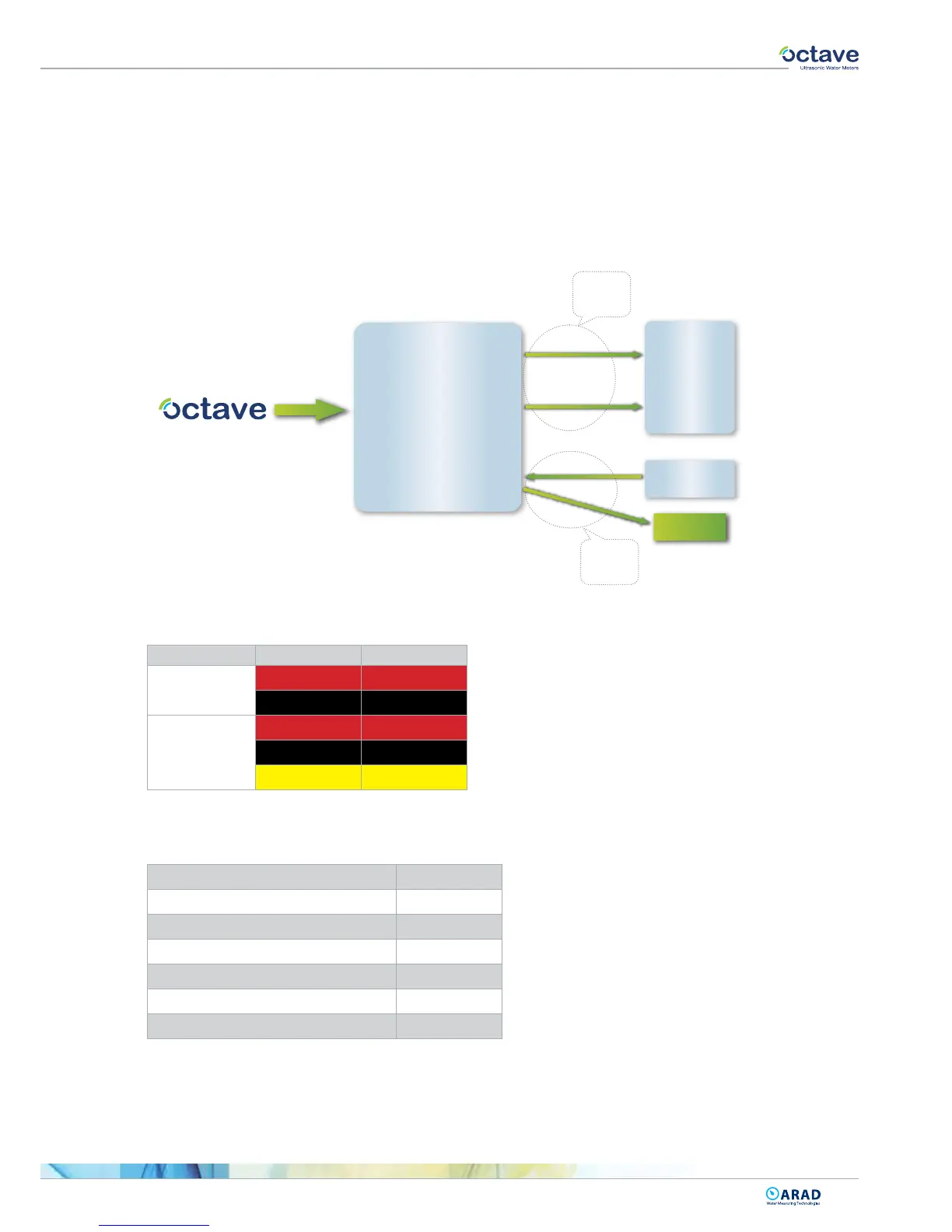

14.1.3 SSR v1.0 Module Specication
Outputs Diagram
Cables
Wire Function
Long cable
Red + Orange Out#1
Black + Brown Out#2
Short cable*
Red 5-35V +
Black 5-35V -
Yellow Earth
* Signal connection polarity is mandatory!
Output Characteristics
Outputs Type Dry Contact
On-Resistance max. 25 [Ω]
Output current max. 120 [mA]
Output Voltage max. ±400 [V]
Supply Voltage 3-35 Vdc 5-35 [Vdc]
Cable Length - supplied 1.5 [meter]
Maximum Cable Length* 500 [meter]
* cable Teldor PN 8005003101 or similar
Short
Cable
Long
Cable
Read-out
instrument
EARTH
5-35Vdc
Out#1
Out#2
Octave
SSR
v1.0

Arad Octave Specifications

General

Protection Class	IP68
Type	Ultrasonic flow meter
Communication	M-Bus
Pressure Rating	16 bar
Power Source	Internal battery
