| 12 |
Cables
Signal connection po larity is mandatory!
Wire Function
Long cable
Red current loop +
Black current loop -
Open GROUND / SHIELD
Short cable Ring Terminal GROUND
Output Characteristics
Outputs Type
4-20mA
current output
Supplied Cable Length 1.5/5 [meter]
Maximum Cable Length * 500 [meter]
Loop supply voltage 12 - 24 [Vdc]
Output Impedance 25 [M] typ
* cable Teldor PN 8005003101 or similar
(+)
(
-
)
+
-
14.1.4 4-20mA Module (Analog)
The current output is a passive 4-20mA.
4mA is always “0” (zero) ow and the 20mA is factory programmable
according to the customer requirements.. (If the customer did not specify,
the 20mA will be the maximum ow rate).

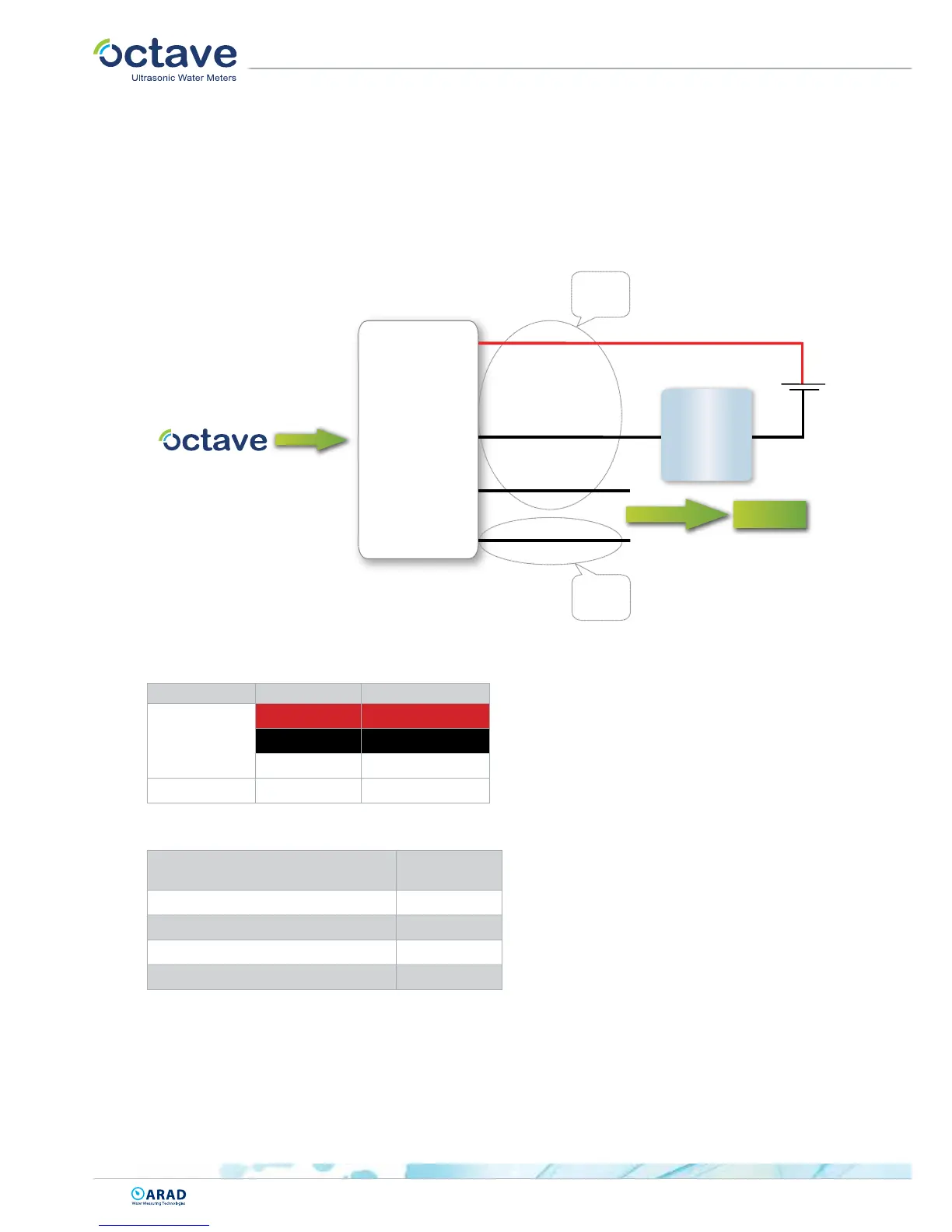

Outputs Diagram
Octave
4/20mA
module
Short
Cable
Long
Cable
Read-out
instrument
GROUND
GROUND
Shield
