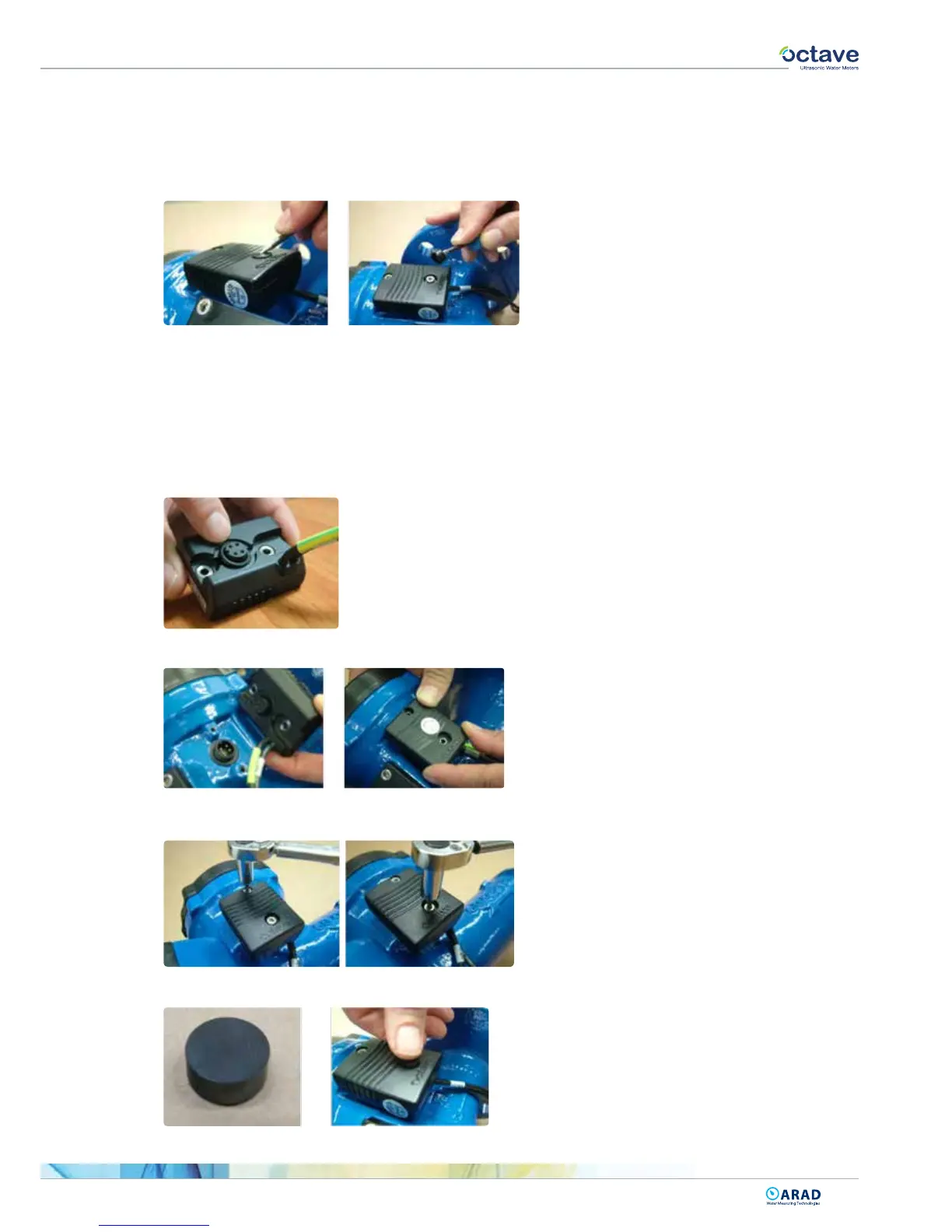

15.0 Module Replacement / Mounting Manual
1. Properly dry the area of the connector.
2. Remove seal cover from the screw using tool with sharp edge.
3. Remove the screws using Allen key 3mm.
4. Remove the module/cover.
5. Properly dry again the area of the connector.
6. Make sure the module o-ring is in position.
If not, Insert new o-ring into the module. The o-ring must be lubricated (silicone grease)
7. Attach module to the connector.
8. Tight both screws by hand only, using Allen key 3 mm to achieve symmetric o-ring pressure,
then apply the torque 2 N*m with torque wrench.
9. Insert seal cover onto the screw.
