Arad Octave Installation Manual

| 6 |
2 DN
2 DN
2 DN2 DN
Flow Direction
2 DN
10 DN
Flow Direction
2 DN
Flow Direction
2 DN
Flow Direction
2 DN
2 DN
Flow Direction

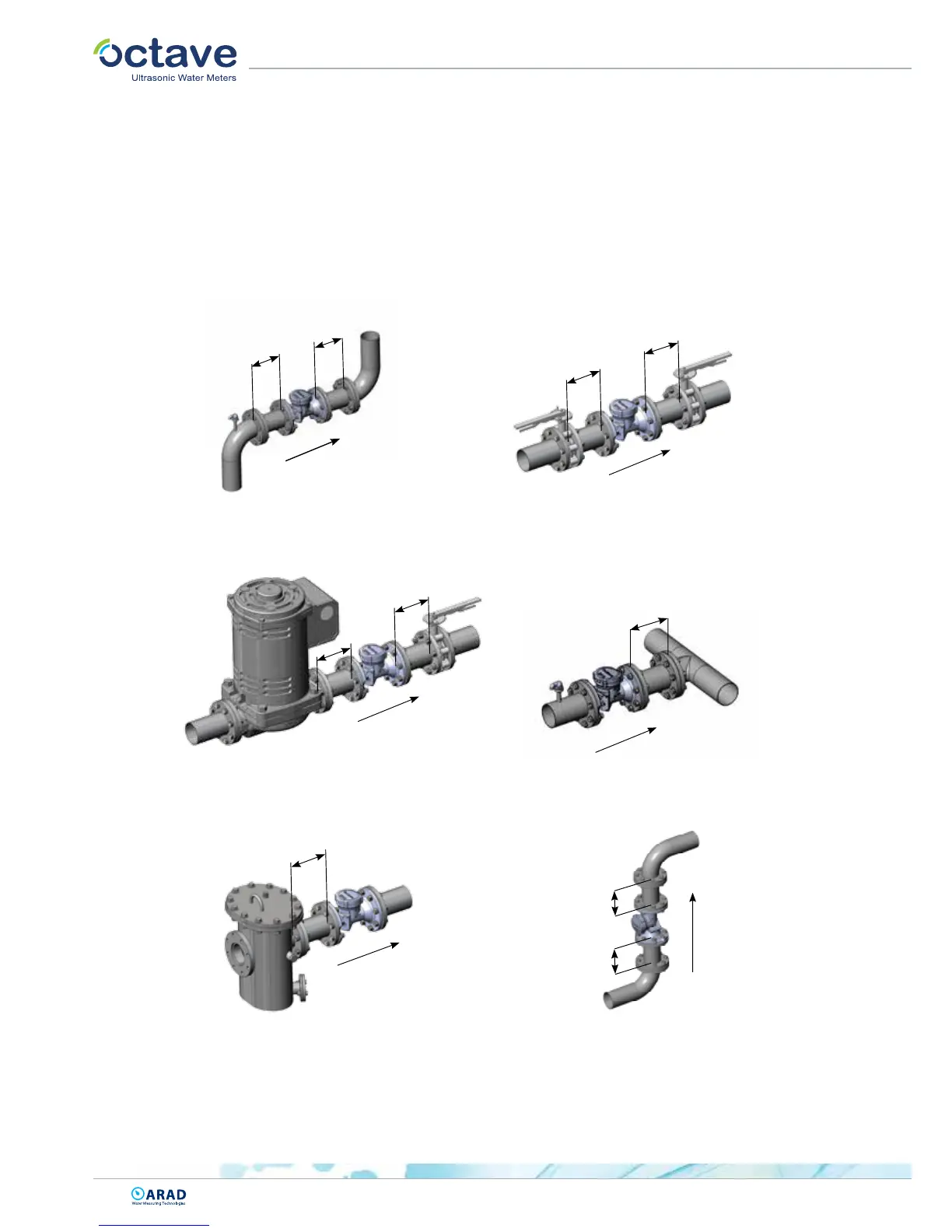

The Following Examples are Arad’s Recommendations
For Achieving Top Performance
• When installing the Octave downstream of any hydraulic component (valve, pump) the recommended installation
requirements are no less than the drawings recommendations.
For upstream & downstream straight pipes please use as much as installation site will allow ( the longer the better)
• When installing Pressure Breaker after the meter - the pipe length should be at least 2 pipe diameter (the longer
the better).
Minimum of ten (10) pipe diameters
after pumps
Minimum of two (2) pipe diameters
after strainers
Minimum of two (2) pipe
diameters before T connections
2 pipe diameters before and after elbows
(90°) in vertical installations
2 pipe diameters before and
after elbows (90°)
Minimum of two (2) pipe
diameters before and after
Flow Direction

Arad Octave Specifications

General

Protection Class	IP68
Type	Ultrasonic flow meter
Communication	M-Bus
Pressure Rating	16 bar
Power Source	Internal battery
