Revision Date – 22/12/2014 page 38

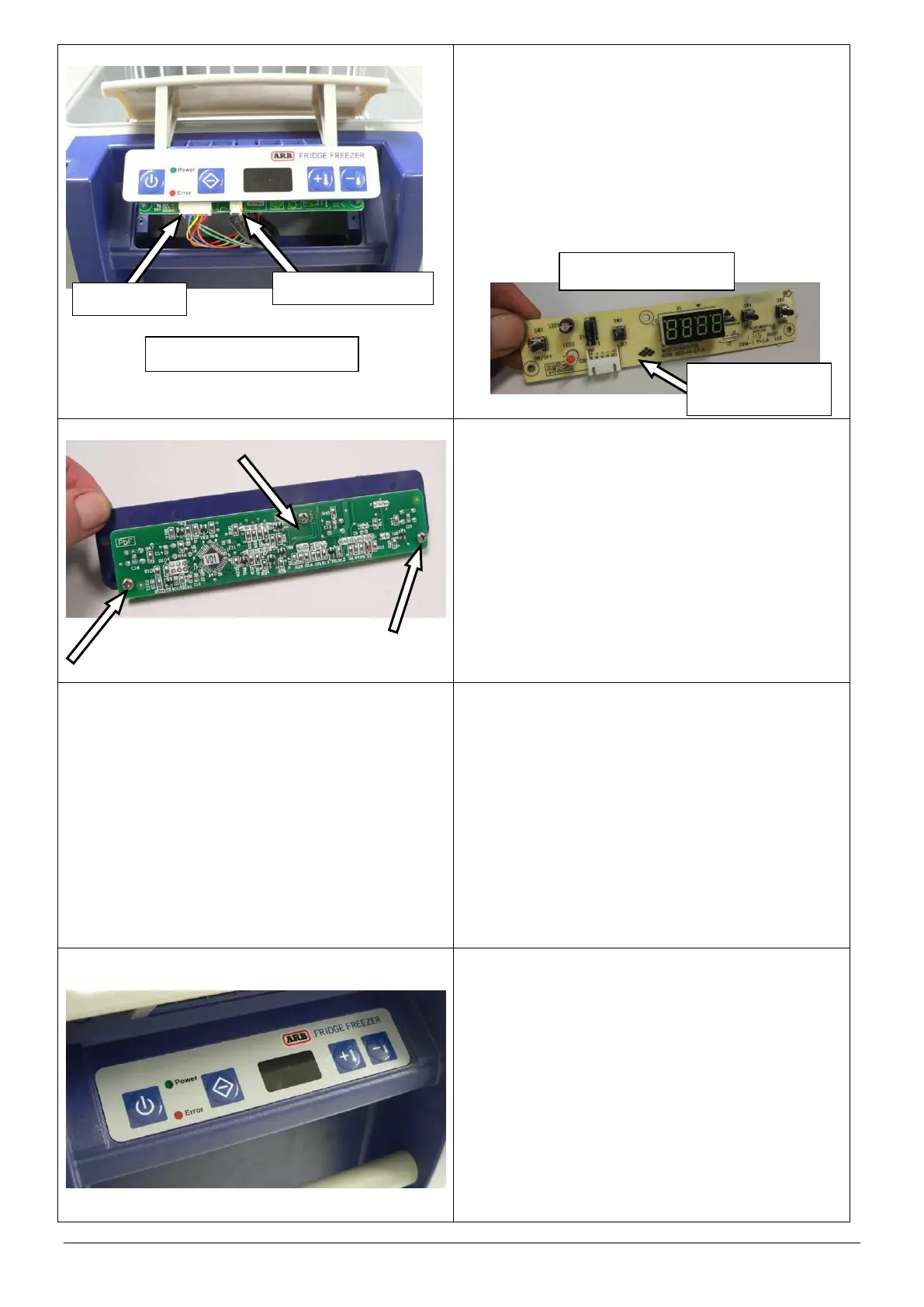

Disconnect the main wiring loom from the control
panel circuit board.
Disconnect the thermistor loom from the control
panel circuit board.
NOTE: For fridges manufactured after January
2014, the thermistor loom connects
directly to the main PCB and not the
display PCB as described above.
Remove 3 screws that join the touch pad to the
control panel circuit board.
Connect thermistor and main wiring looms to the
new control panel circuit board.
Restore power to the fridge and test for correct
operation.
NOTE: The power and temperature settings
are stored within the control panel
circuit board. If changing the circuit
board to diagnose a possible fault,
make sure that the settings on the new
circuit board are correct.
Fit new control panel circuit board to touch pad
using the same 3 screws. Do not over tighten the
screws.
Install the control panel assembly into the body of
the fridge and fasten using the same 2 screws.
Apply new control panel touch pad.
No connector
for Thermistor
To Next Page
