Revision Date – 22/12/2014 page 59

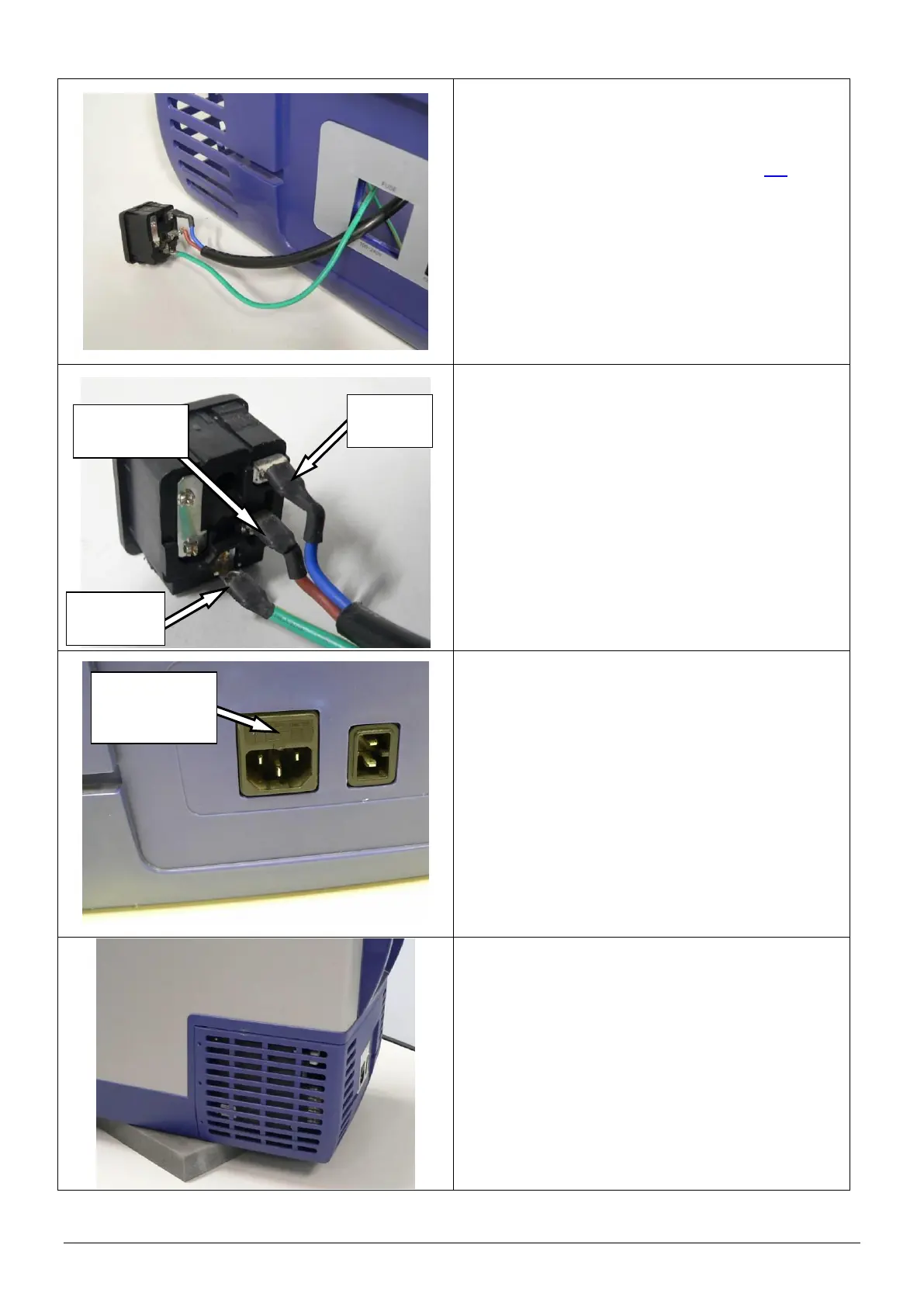

9.15 AC power socket - Replace
Disconnect all power leads from the back of the
fridge.
Remove the rear cover (refer to section 9.2).
Remove the AC socket protector.
Withdraw the socket (complete with leads)
through the hole in the rear cover as shown.
HINT: Use a flat blade screw driver to depress
the tabs on the back of the socket
Disconnect the 3 wires from the back of the AC
power socket using a soldering iron.
Connect the 3 wires to the new AC power socket
using a soldering iron (refer to diagram for wiring
details).
Apply heat shrink insulation to the exposed
sections of wire.
NOTE: Termination of the AC cables to the AC
socket should only be performed by a
licensed electrician.
Refit the socket into the rear cover. Ensure that
the fuse housing is at the top as shown.
Refit the rear cover.
Restore power to the fridge and confirm correct
operation of the socket.
CAUTION: When refitting cover, ensure that all
cables are securely fastened away
from sharp, moving or hot
surfaces.
AC socket
fuse holder
at top
