Introduction
Solo is an extremely flexible CI product and will allow for a very simple two-
zone setup with independent volume control for Zone 1 and Zone 2.
Solo will require a remote pick-up device such as a Xantech Dinky Link
located within Zone 2 and a Power amplifier such as the signal sensing Arcam
P80 to complete the system.

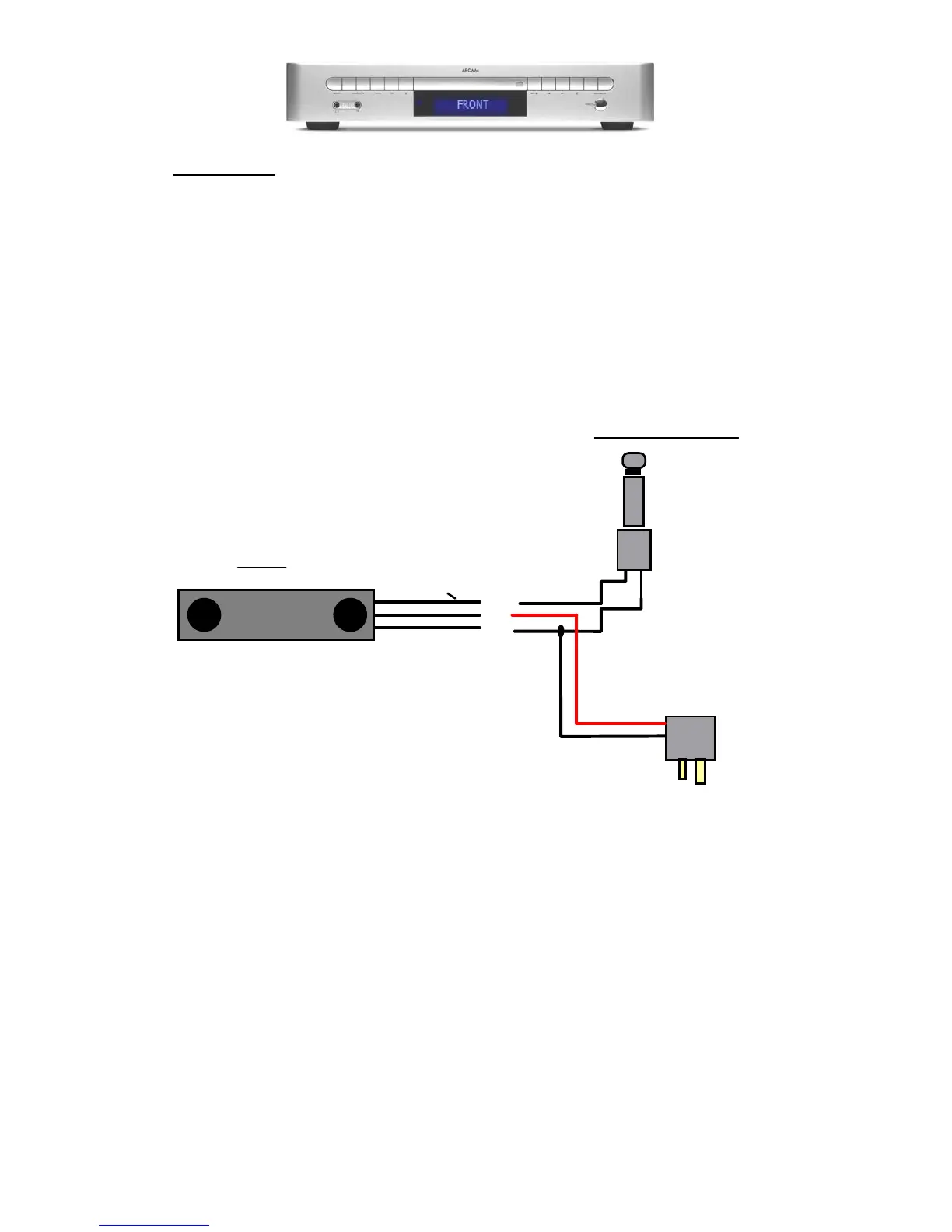

The below diagram demonstrates the implementation of a external power
supply for a Xantech Dinky Link although the same wiring scheme will be
maintained for many other IR pick-up devices commonly available.
Dinky link
White stripe
Signal
+12v
0v
+12v
Tip = Signal
Sleeve = Ov
Zone 2
Solo Zone 2 IR input
Solo also has the ability to provide a +12v trigger for control of ancillary
devices such as power amplifier in the Second Zone; the +12v control is
active when the Solo is not in Off or Standby modes.
To Next Page
