5 Operating the product

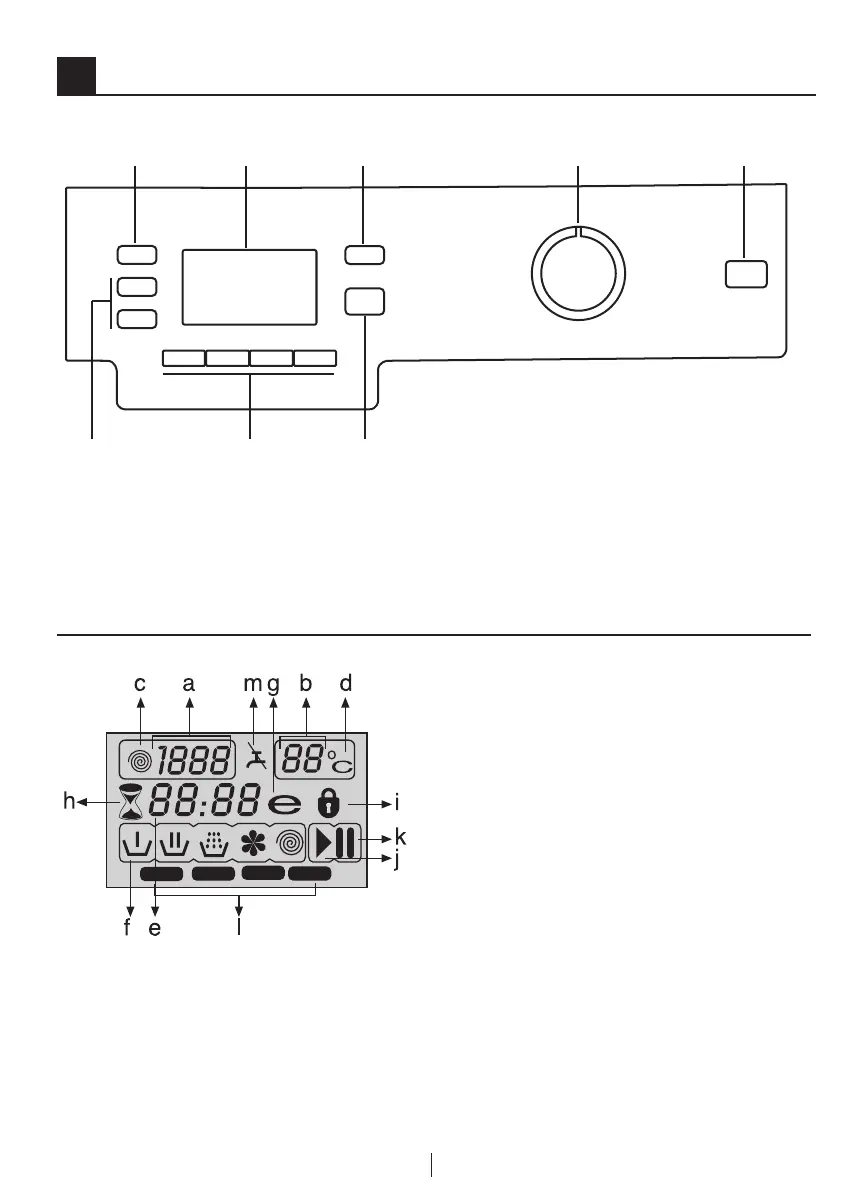

Control panel
1 - Spin Speed Adjustment button
2 - Display
3 - Temperature Adjustment button
4 - Programme Selection knob
5 - On / Off button
6 - Delayed Start buttons (+ / -)
7 - Auxiliary Function buttons
8 - Start / Pause / Cancel button
Display symbols
F1
F2
F3
F4
a - Spin Speed indicator
b - Temperature indicator
c - Spin symbol
d - Temperature symbol
e - Remaining Time and Delayed Start
indicator
f - Programme Indicator symbols
(Prewash / Main Wash / Rinse /
Softener / Spin)
g - Economy symbol
h - Delayed Start symbol
i - Door Locked symbol
j - Start symbol
k - Pause symbol
l - Auxiliary Function symbols
m - No Water symbol
Preparing the machine
1. Make sure that the hoses are connected
tightly.
2. Plug in your machine.
3. Turn the tap on completely.
4. Place the laundry in the machine.
5. Add detergent and fabric softener.
Programme selection
1. Select the programme suitable for
the type, quantity and soiling degree
of the laundry in accordance with the
"Programme and consumption table"
and the temperature table below.
1
6 7
8
2
3
4
5
