30” BUILT-IN REFRIGERATOR / REVISION NUMBER: 00
12.14. Freezer Ceiling Lighting:

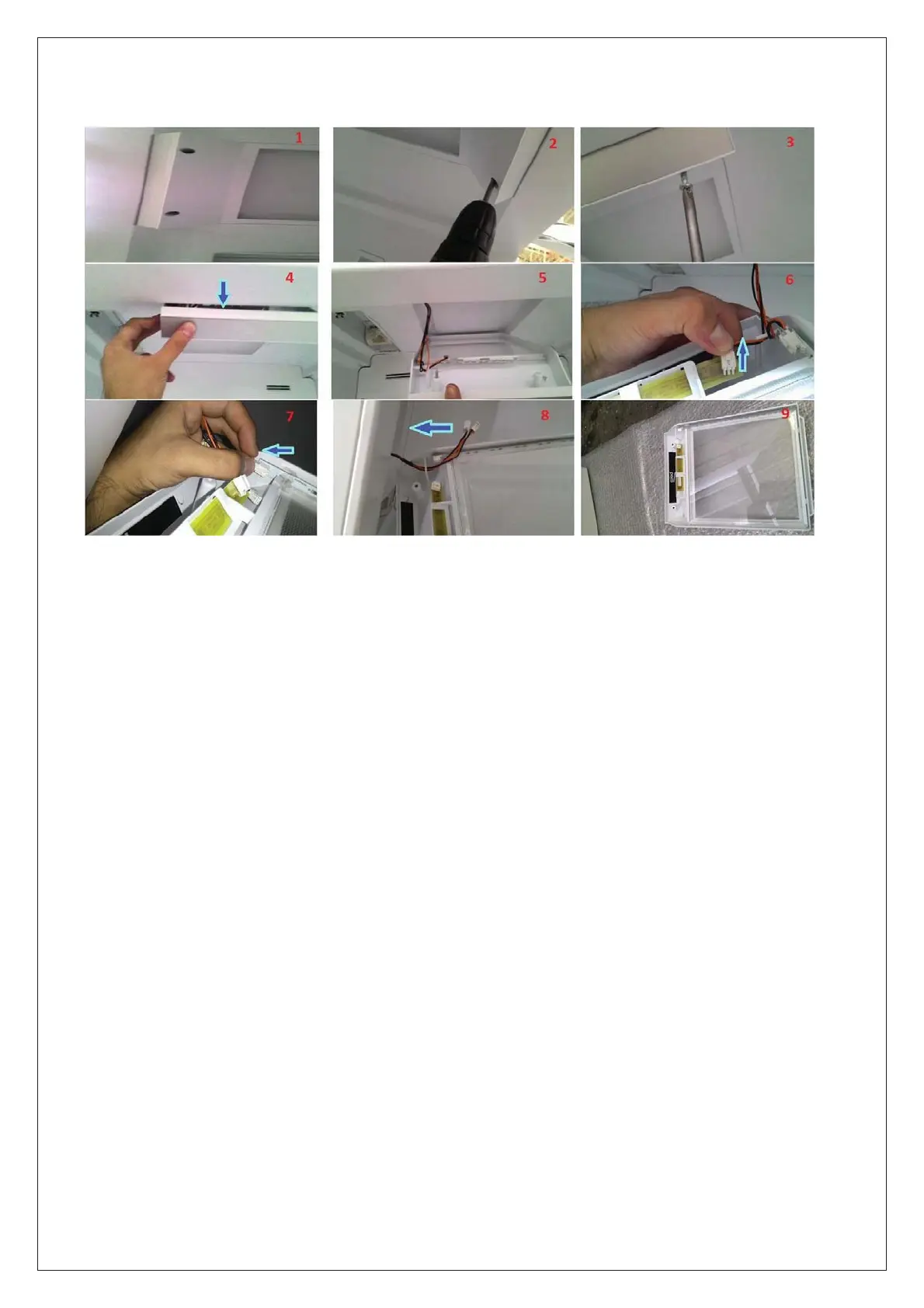

The ceiling lighting is connected to the inner body by 2 screws as shown in Figure 1.
The screws are dismantled using the star charged wrench as shown in Figure 3 and 2.
It is pulled down in the direction of the arrow as shown in Figure 4.
It is firstly removed by pressing the cable socket connected to the logo led as shown in Figure 6.
It is removed by pressing the cable socket connected to the lighting led as shown in Figure 7.
The cables are pulled as shown in Figure 8 and the ceiling lighting group is removed.
