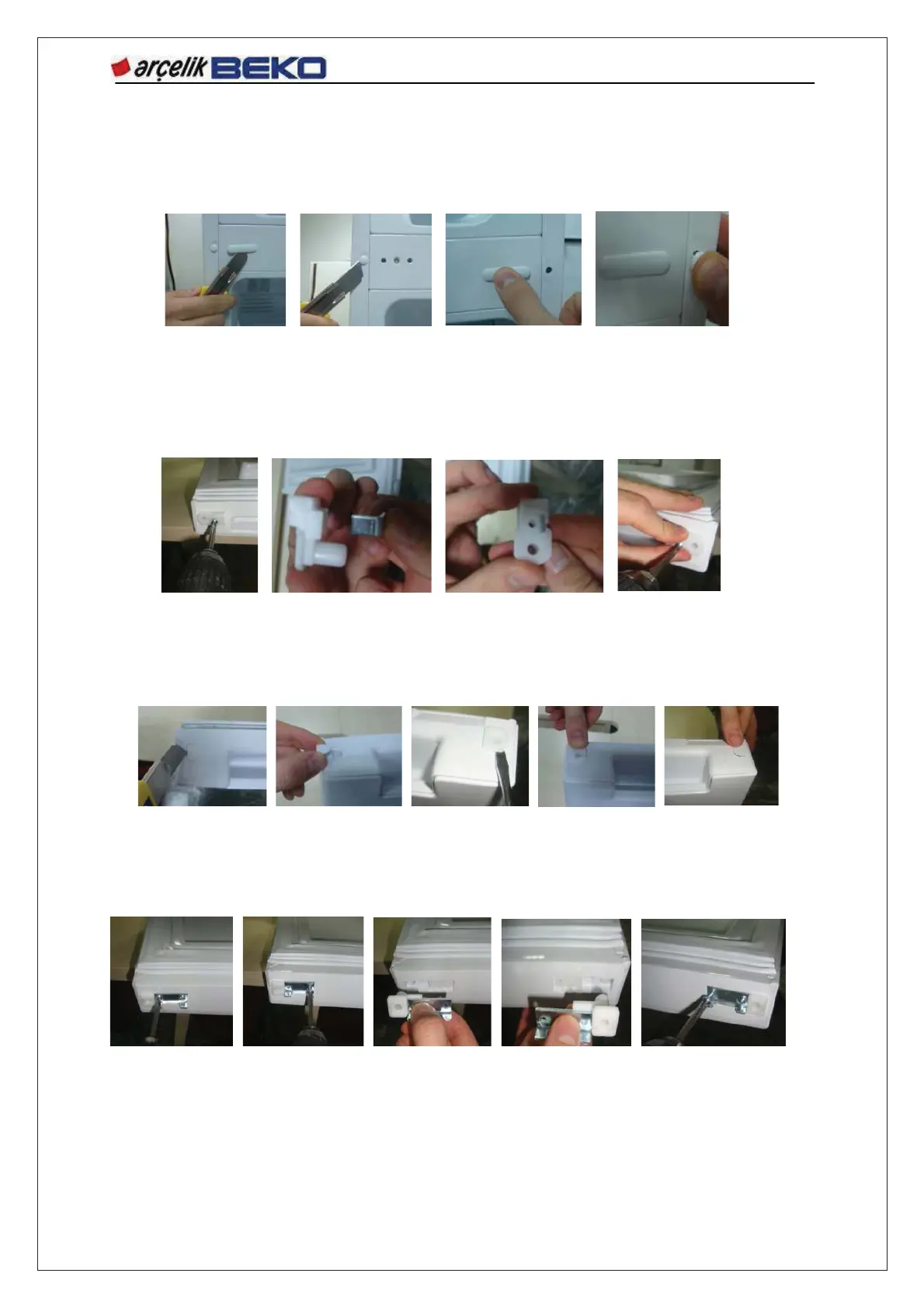

Middle hinge plugs on the opening side should be removed and these removed plugs are grouped into
the housings on the opposite side.
Hinge bearing and stopper under the upper door shall be removed by unscrewing the 1 screw. To
mount it on the opposite side, 1 piece of 4852560200 Left Hinge Bearing must be provided. A metal
stopper should be passed through this stopper again and it should be fitted into the housing on the
opposite side by using the 1 screw.
To change the upper hinge bearing of the lower door, firstly the plug on the opening side should be
removed by using a box knife. Hinge bearing is also removed by a flat-head screwdriver and these two
pieces are fitted in the place of each other.
The hinge bearing and stopper under the lower door shall be removed by unscrewing the 2 screws
and re-tightened on the opposite side with these 2 screws.
After these operations, lower door shall be attached to the hinge from bottom and lifted upwards, and
the pin of the upper hinge shall be slipped into housing on the upper door. Doors shall be attached by
applying the operations in step 4.2 in reverse order.
