14.10. Crisper Cover
Crisper groups used in the fridge compartment are serviced separately as the cover and drawer
compartment. To remove the drawer cover from the drawer compartment, follow the below steps
respectively;

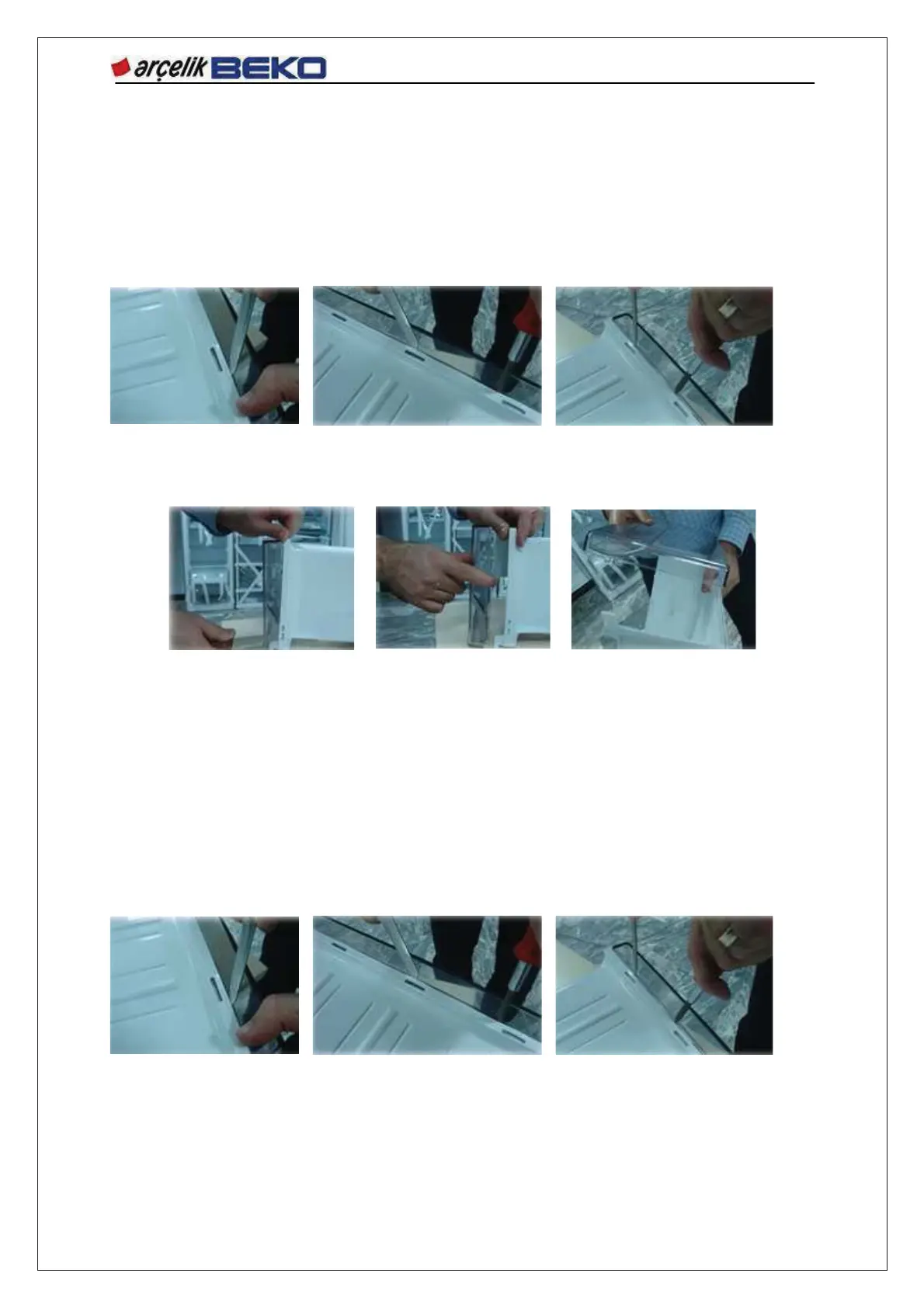

Structures with tab in the drawer cover are secured on the drawer body from the bottom. Using two
tools with thin and flat tips, slightly pull the tabs open to release from snap on point.
After the bottom is pulled open slightly, pass to the sides. There are 2 tabs on the sides, namely the
left and right tabs. To release the tab connection, tabs are released from their seats by using a sharp
and flat-tipped screwdriver as shown in the picture.
To snap them on again, first the upper part and side tabs are snapped on the drawer body, then the
tabs on the lower part are snapped on the drawer body to complete attachment.
14.11. Second Floor Crisper Cover
Second floor crisper groups used in the fridge compartment are serviced separately as the cover and
drawer compartment. To remove the drawer cover from the drawer compartment, follow the below
steps respectively;
Structures with tab in the drawer cover are secured on the drawer body from the bottom. Using two
tools with thin and flat tips, slightly pull the tabs open to release from snap on point.
After the bottom is pulled open slightly, pass to the sides. There are 2 tabs on the sides, namely the
left and right tabs. To release the tab connection, tabs are released from their seats by using a sharp
and flat-tipped screwdriver as shown in the picture.
