12.25. U4 Card Box Grouping at the bottom of the Cabin
Once the card box and its cover are closed they are shifted and grouped on the channel existing at
the bottom of the cabin.
Protection silicone is mounted on the UDAQ cable socket located outside on the card box.

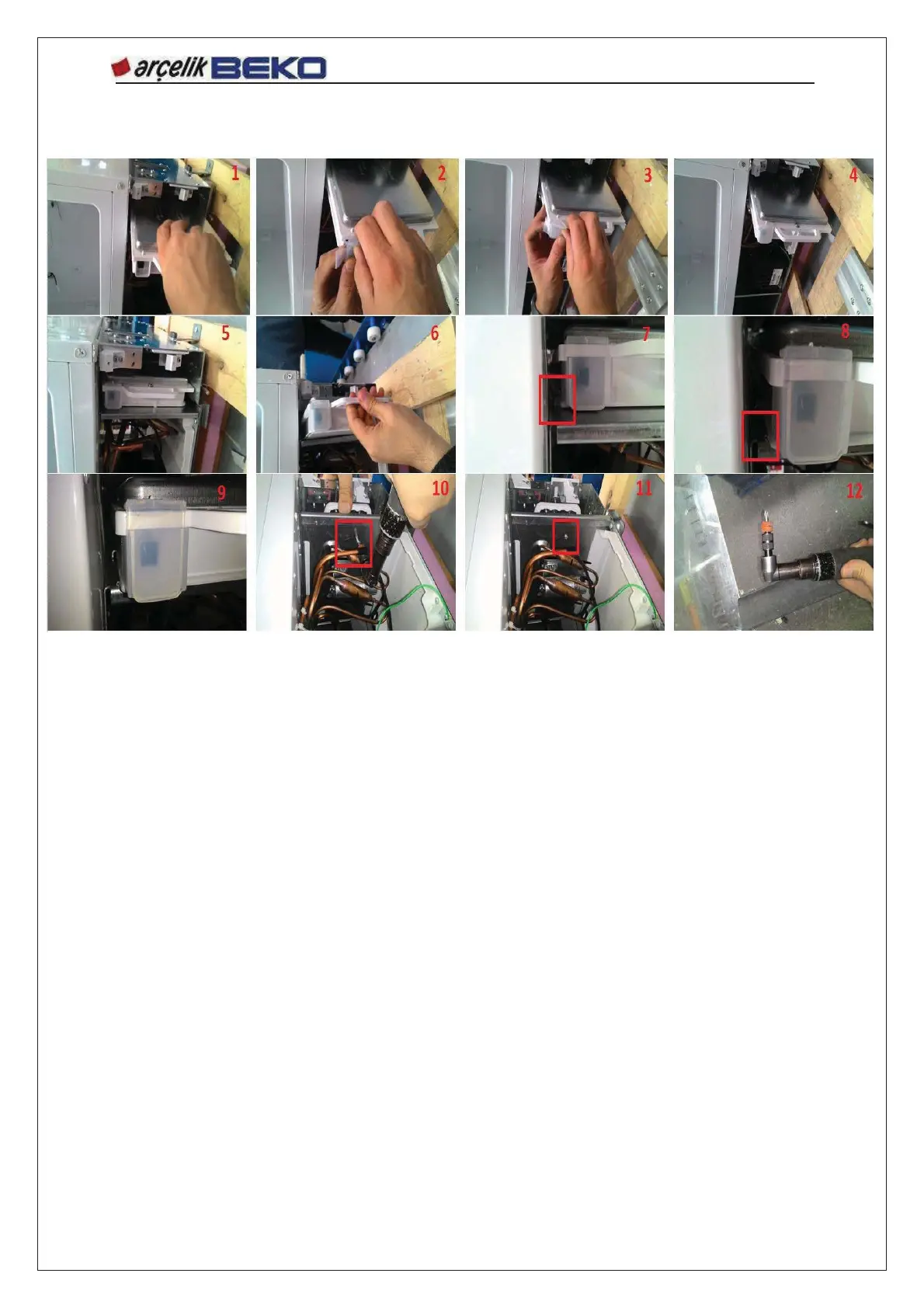

Once the card box is completely placed it is affixed using the star edged plastic screw at the bottom of
the cabin as shown in Figure 10.
The screw is tightened by mounting 90° screwing adaptor on the charged wrench.
