OPTIMA 30-1 14

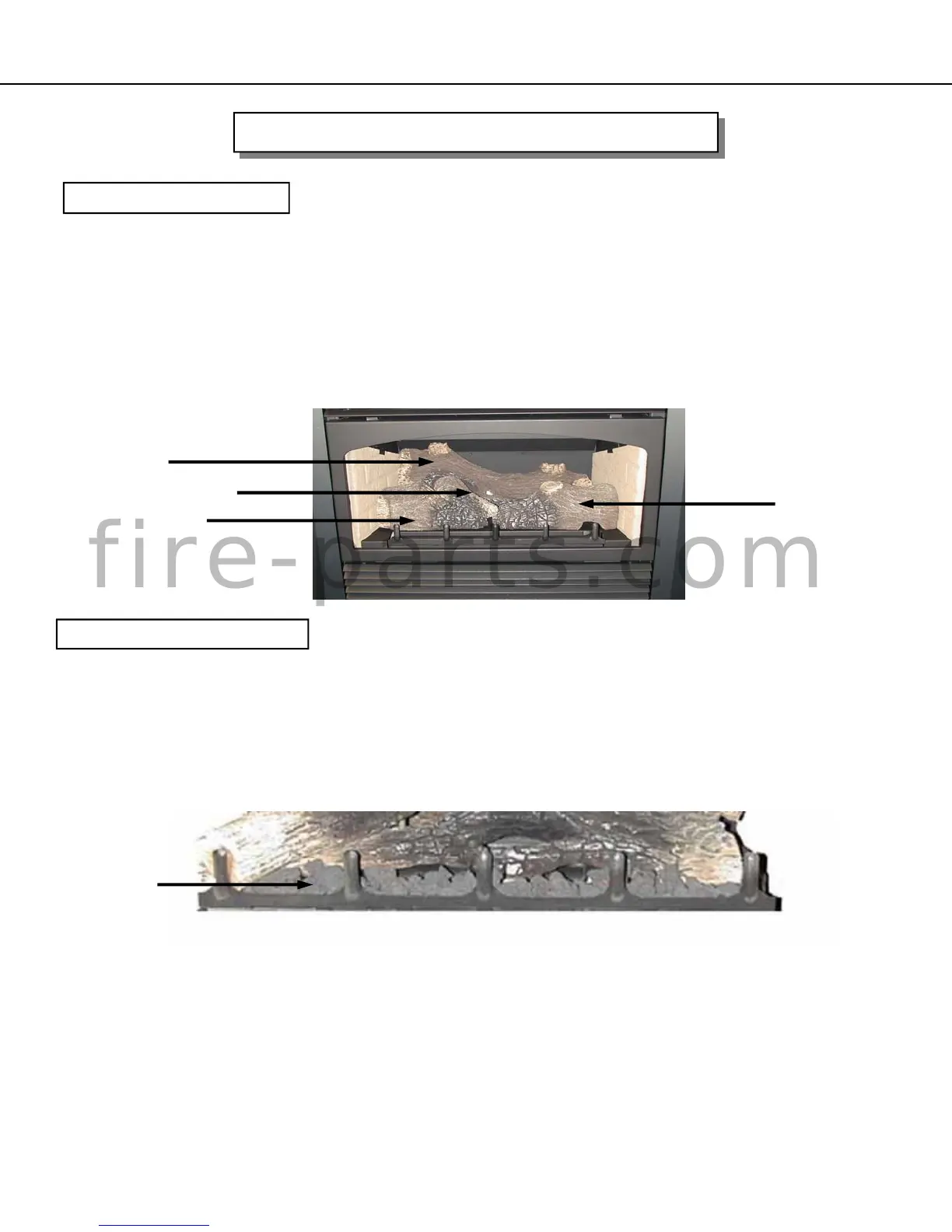

PLACEMENT OF LOGS
Locate the rear log on the locator pins and then the front logs on its pins. The branch fits over
top as shown. It is locked into place with a pin on the Left Front Log and sits on the edge of
the knot hole in the rear log. Both the Left and Right Front Logs must be positioned on their
locating pins behind the front burner.
PLACEMENT OF EMBERS
A small bag of ember and coals are provided with the fireplace.
Carefully place the embers and coals on the ledge between the grate
and the front of the burner.
Do not allow the embers to obstruct the burner ports.
EMBERS
& COALS
PLACEMENT
WARNING: Do not place logs in any other configuration than that
shown. Under no circumstances are logs to be modified. Do not
add foreign materials or more embers than the type and quantity
provided with the appliance.
INSTALLATION INSTRUCTIONS Cont...
REAR LOG
TWIG
FRONT LOG LH
FRONT LOG RH
