OPTIMA 30-1 13
GLASS DOOR
WARNING: THE OPTIONAL BAY DOORS ARE DECORATIVE ACCESSORIES ONLY
LEAVE THE FLAT DOOR IN PLACE!
Do not attempt to remove the glass door when the appliance is hot.
Removing the Glass Door
Release the two latches underneath the door.
Lift out the bottom of the door and lift the whole door assembly up and off the two locating tabs
at the top of the door assembly.
Replacing the Glass Door
The reverse procedure of Removing the Glass Door.
INSTALLATION INSTRUCTIONS Cont...

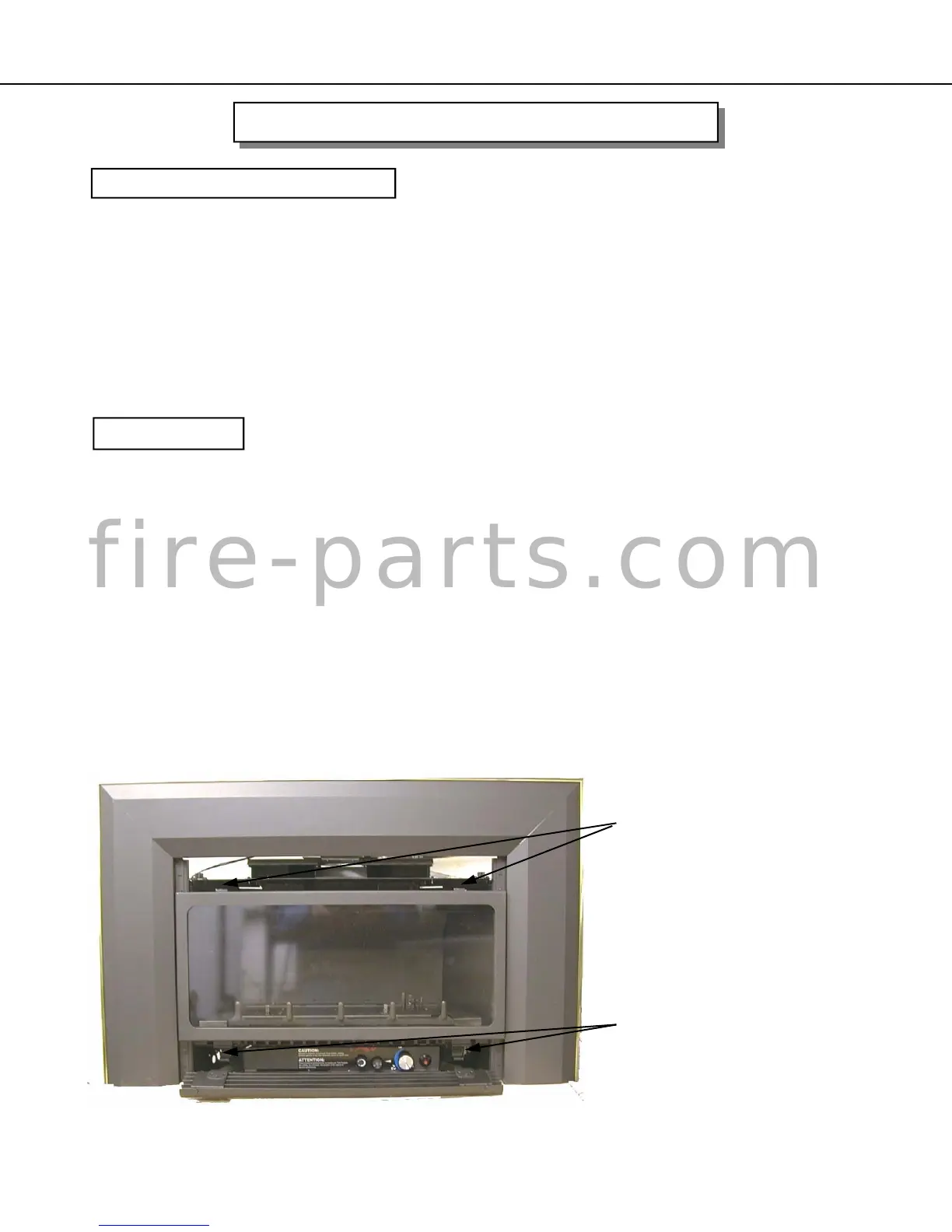

LOCATING TABS
(UPPER LOUVERS
REMOVED)
DOOR LATCHES
(SHOWN OPEN)
SWITCH MOUNTING AND WIRING
SPILL SWITCH:
The spill switch is located in a critical location to shut of the appliance in the event the draft is
insufficient. It is located above and in front of the draft hood. Do not tamper with it’s location. In
the event of insufficient draft the heat from the venting gases shuts off the gas to the burner.
ON-OFF SWITCH:
The on-off switch is located in the side trim. The wire must be run along the frame as shown and
clipped together with the spill switch wire. Run the wire through the same grommet as the spill
switch wire (see page 11). Attach to valve terminals as shown on page 14.
