Optima 72
10

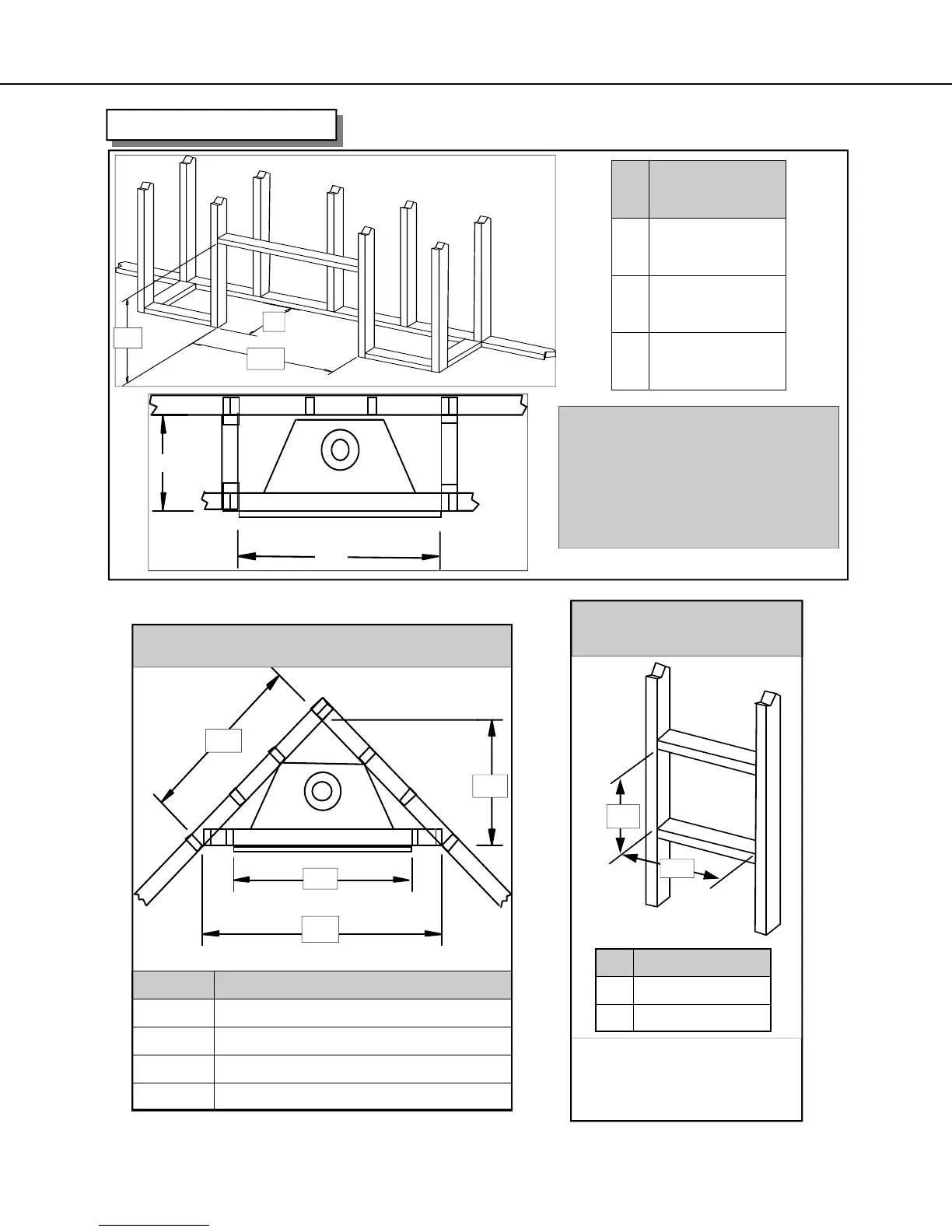

FRAMING DIMENSIONS
C
B
C
A
B
* This dimension allows the top of
the fireplace to slide under. If
more rigidity is required, a stud
may be added to the back of the
fireplace top nailing flange after
the fireplace is installed.
Dimensions
A * 38” (965 mm)
B 16-¼” (412 mm)
C 38” (965 mm)
TERMINATION
FRAMING
H
I
NOTE: Be sure to include
¼” (6mm) rise per 12” (305
mm) of horizontal length
DIMENSIONS
H 11” (279 mm)
I 10” (254 mm)
D
E
F
G
DIMENSIONS
D 39-⅛”” (994 mm)
E 27-⅝”” (700 mm)
F 38” (965 mm)
G 55-¼” (1403 mm)
CORNER FRAMING
