Archgard Optima 72-DVT30N - Valve Tray Assembly and Parts List

Optima 72
47
Item # Item Description Qty Unit
A 314-0015 Flex tub gasket 1 EA
B 308-0120 Wing Nut, Plated Steel (AIR Shutter) 1 EA
C 301-6007 7” Flex line assembly ,flanged orifice 1 EA
D 301-0068 Orifice (Main Burner Orifice) Drill to # 37 DMS (2.65 mm) for
Natural Gas and Drill to #52 DMS (1.62 mm) or Propane
1 EA
E 308-0013 Valve NOVA SIT 820 (0.820.652) Natural Gas 1 EA
F 739-0019 Pilot Assembly Box 1 EA
G 308-0093 Pilot Assembly. Convertible NG/LP Base Mount. Includes the
items listed below…...
1 EA
H Part # 308-0057 - Thermocouple 1 EA
I Part # 308-0056 - Thermopile 1 EA
J 800-0060 Air Shutter Assembly 1 EA
K 314-0131 Air Shutter Gasket 1 EA
L 314-0127 Pilot Assembly Box Gasket 2 EA
M Complete Valve Tray Assembly 1 EA

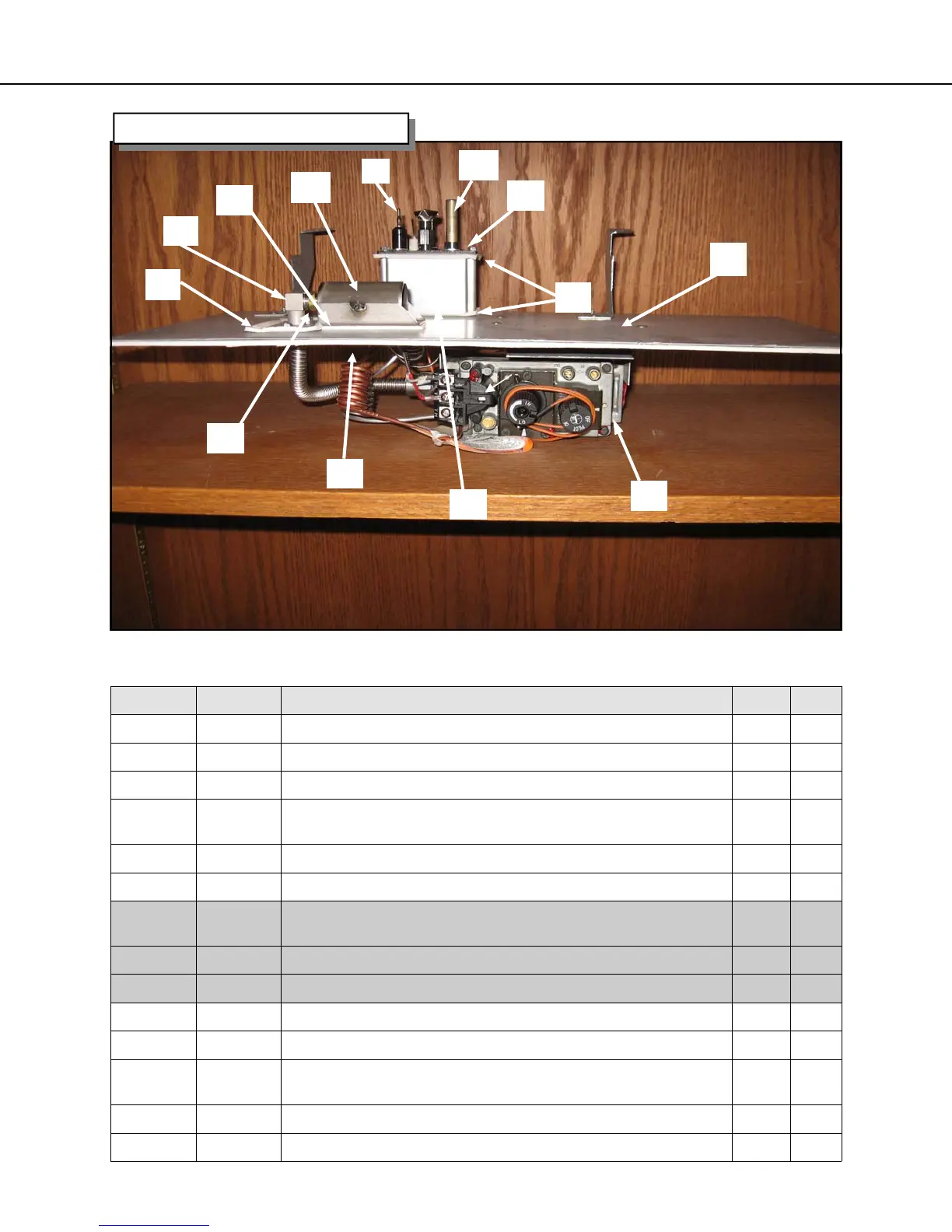

VALVE TRAY ASSEMBLY
L
M
K
F
B
D
I
H
E
C
G
J
A
