Archgard Optima 72-DVT30N - HORIZONTAL VENTING WITH FLEXIBLE DIRECT VENT SYSTEMS

Optima 72
19
PART # DESCRIPTION
999-DV-TVK3 Flex Vent Kit with 36” (914 mm) vent length (includes 999-DV-HTC)
999-DV-TVK5 Flex Vent Kit with 60” (1.52 M) vent length (includes 999-DV-HTC)
999-DV-HTC Horizontal termination head only
999-DV-SC Safety Cage for Horizontal termination head (999-DV-HTC)
999-DV-VSD Vinyl siding deflector

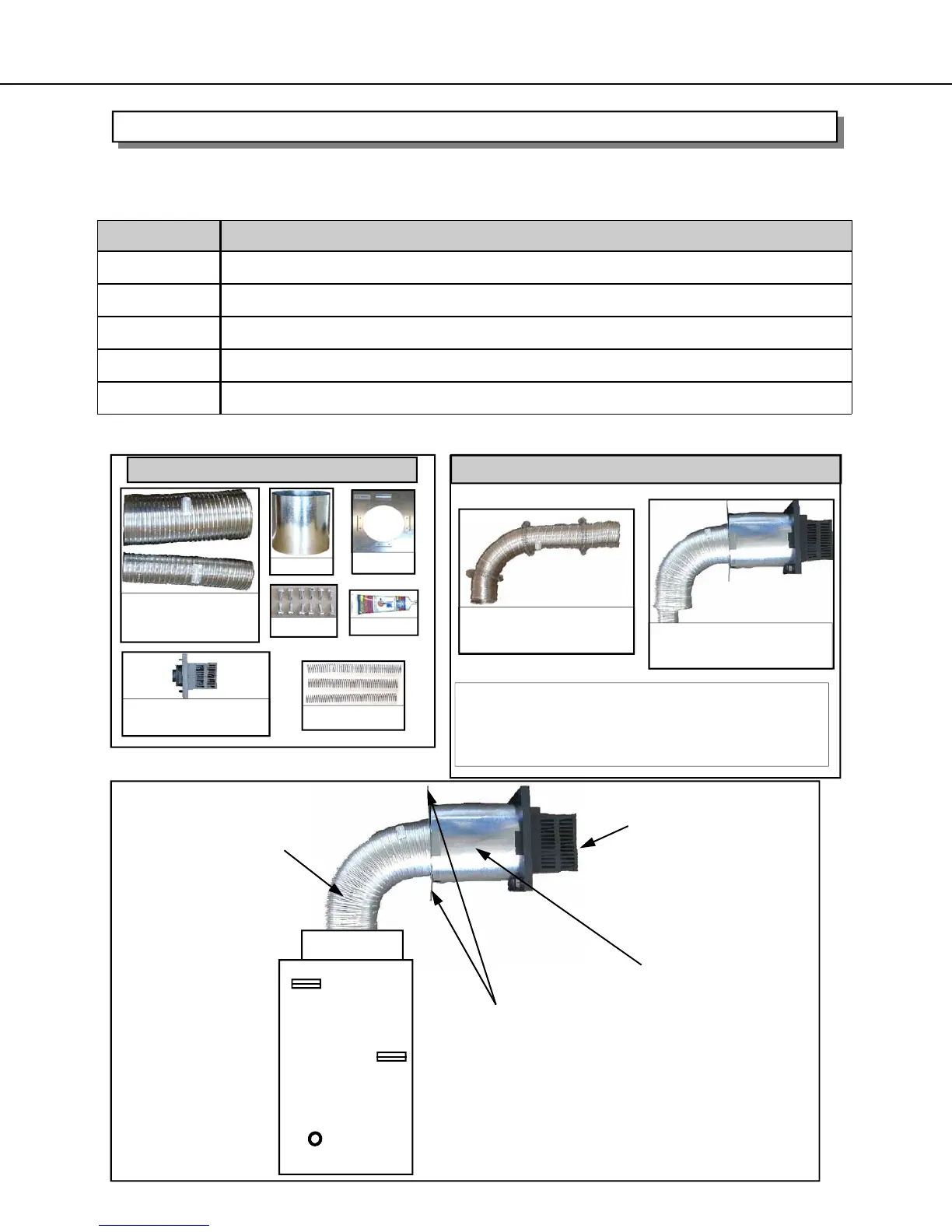

VENTING - HORIZONTALLY USING FLEXIBLE DIRECT VENT SYSTEMS
VENT KIT COMPONENTS (TVK-1)
Horizontal Termination
7” (mm) & 4” (100mm)
flexible liner
Sleeve
Firestop
Sealant
Screws
Spring spacers
NOTE: Pitch the flexible pipe up towards the
Horizontal Termination Cap
VENT ASSEMBLY
4” exhaust vent
with spring spacers
Fully Assembled Flexible
Direct Vent System
4” and 7” flex pipe
(100 mm x 173 mm)
Firestop
Sleeve (Wall Thimble)
Archgard Horizontal
termination cap
The Optima 72 can be vented Horizontally by using the Archgard Direct Vent System of flexible pipe.
