3-6
CD766D

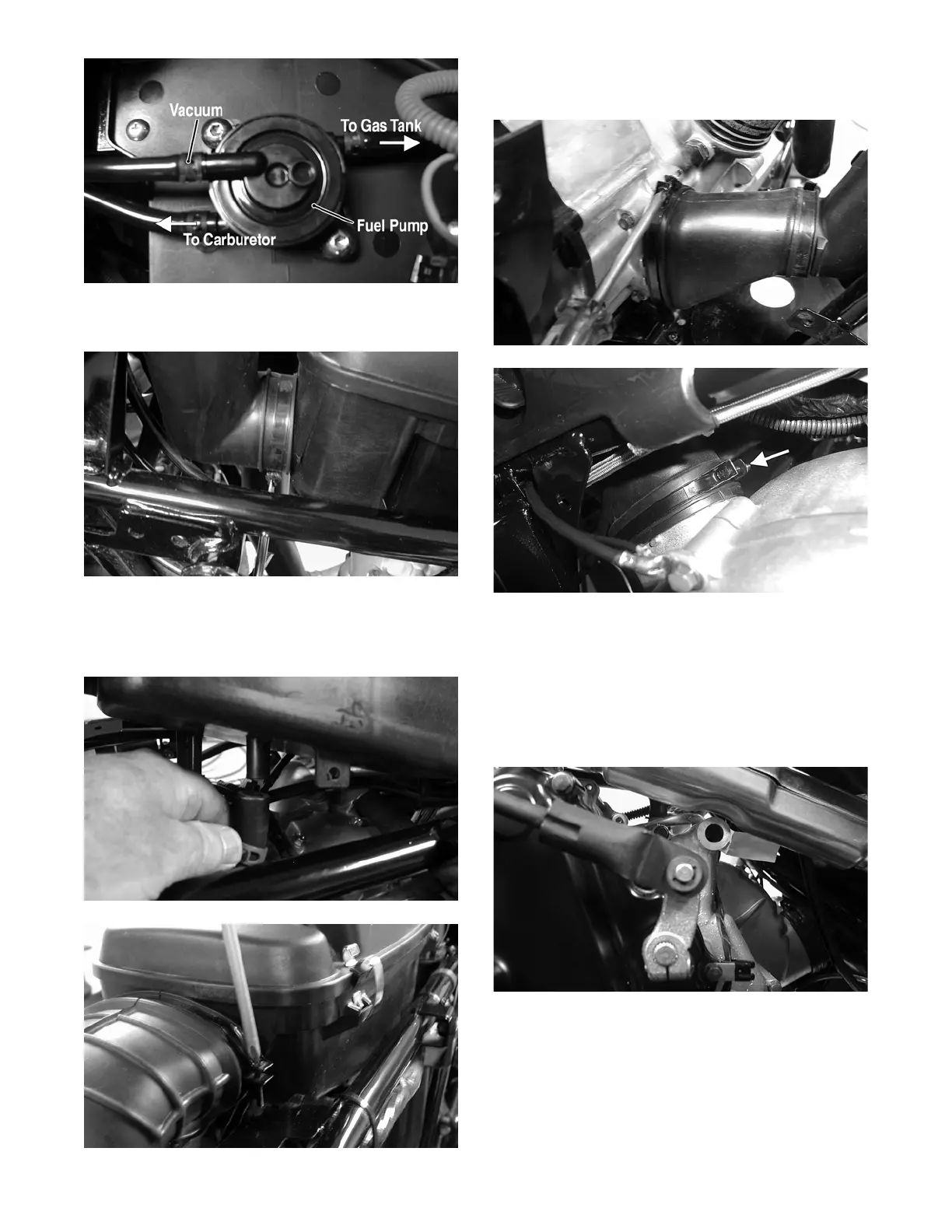

9. Loosen the clamp securing the air intake duct to the
air filter housing.
CD785
10. Disconnect the crankcase vent hose from the air filter
housing. Remove the clamp securing the carburetor
intake duct to the air filter housing; then remove the
air filter housing.
CD787
CD786
11. Remove the clamp securing the cooling duct boot to
the V-belt housing; then remove the cooling duct
boot from the V-belt housing outlet.
CD793
CD515A
12. Remove the left-side foot peg and footwell (see Sec-
tion 8).
13. Secure the carburetor assembly up and away from
the engine.
14. Remove the E-clip securing the shift rod to the
engine shift arm; then allow the shift rod to swing
forward and hang straight down from the shift lever.
CD774
15. Remove the springs securing the muffler to the
exhaust pipe; then remove the muffler. Account for
the two exhaust springs.
