3-7
3
CF138A

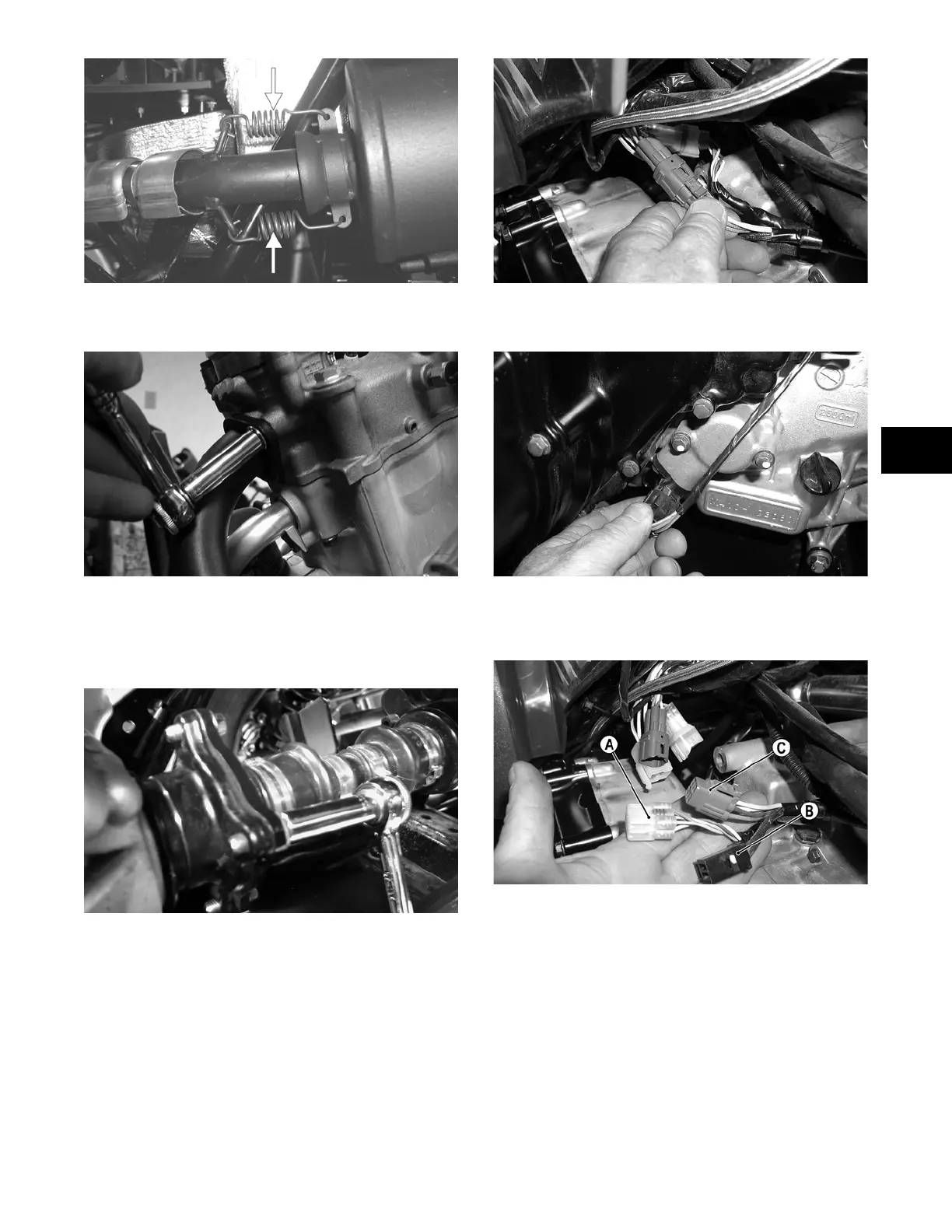

16. Remove the two cap screws securing the exhaust
pipe to the cylinder head; then remove the pipe.
CD803
17. Remove the two coolant hoses from the engine; then
route the hoses out of the way.
18. Remove the cap screws securing the rear drive-
shaft/output flange to the rear output joint flange.
CD805
NOTE: It is advisable to lock the brake when loosen-
ing the cap screws securing the rear driveshaft.
19. Remove the positive cable from the starter motor and
route it out of the way.
CD796
20. Disconnect the speed sensor connector from the sen-
sor housing.
CD794
21. On the right-side, disconnect the gear position switch
(A), stator coil connector (B), and the CDI connector
(C).
CD797A
22. Disconnect the temperature sensor lead from the wir-
ing harness.
