23
0737-294

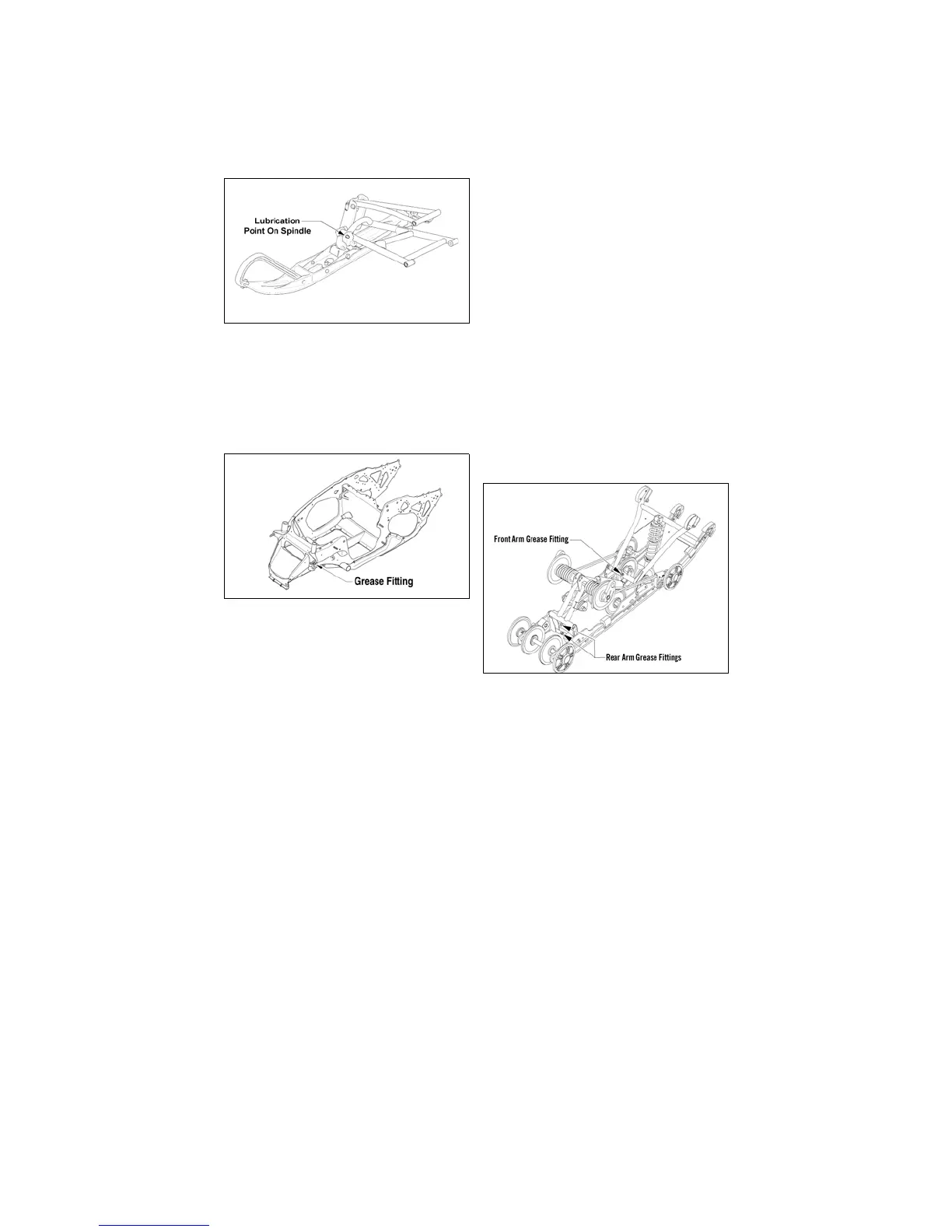

Pump grease into the upper steering shaft
grease fitting (located on each side of the
snowmobile directly below the inner cap
screw securing the upper A-arm to the
chassis) until grease is noted coming out
of the bottom of the shaft. Wipe excess
grease from the shaft.
0743-219
Rear Suspension
This procedure should be done every 40
operating hours.
NOTE: Arctic Cat recommends
that Arctic Cat All-Temp Grease (p/n
4639-365) be used for this proce-
dure.
NOTE: Illustrated are the general
locations of grease fittings. Actual
locations will vary from model to
model.
1. Shut engine off and wait for all mov-
ing parts to stop.
2. With the gas tank nearly empty (less
than 1/4 full) and using Handlebar
Stand (p/n 5639-152) or a suitable
substitute, lay the snowmobile on its
left side.
3. Remove ice and snow buildup from
the skid frame to expose the grease
fittings.
0741-376
4. Lubricate the grease fittings with all-
temperature grease.
