Arctic Cat DVX 250 - ATV Component Identification

! WARNING
Indicates a potential hazard that could
result in a serious injury or death.
10

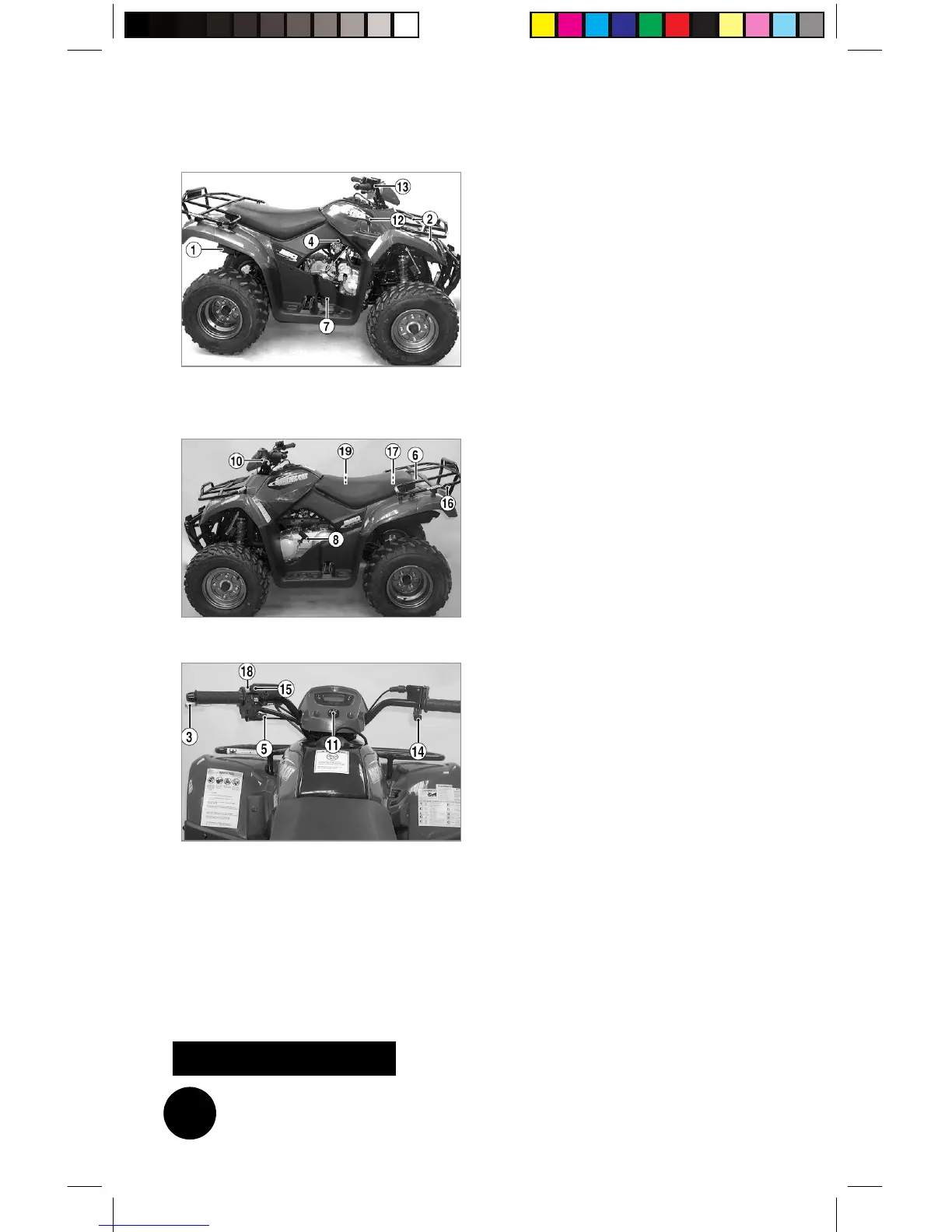

Location of Parts and Controls
(250 2x4)
1. Battery
2. Headlights
3. Hand Brake Lever
4. Fuel Valve
5. Choke Lever
6. Seat Lock Lever
7. Auxiliary Brake Pedal
8. Emergency Starter
10. Brake Lever Lock
11. Key Switch
12. Shift Lever
13. Throttle Limiter
14. Throttle Lever
15. Engine Starter Button
16. Taillight/Brakelight
17. Operatorís Manual
Location
18. Headlight OFF/HI/LO Switch
19
. Tool Kit
KM091A
KM119A
KM120A
