2. High Beam Indicator - A blue light will illuminate when the
engine is running, the ignition switch is in the LIGHTS position,
and the headlight switch is in the HI beam position.
3. Neutral Indicator - A green light will illuminate when the
transmission is in neutral and the ignition switch is on. The light
will go out when shifted into any gear other than neutral.
4. Reverse Indicator - A red light will illuminate when the
transmission is shifted into reverse gear. The light will go off
when shifted out of reverse.

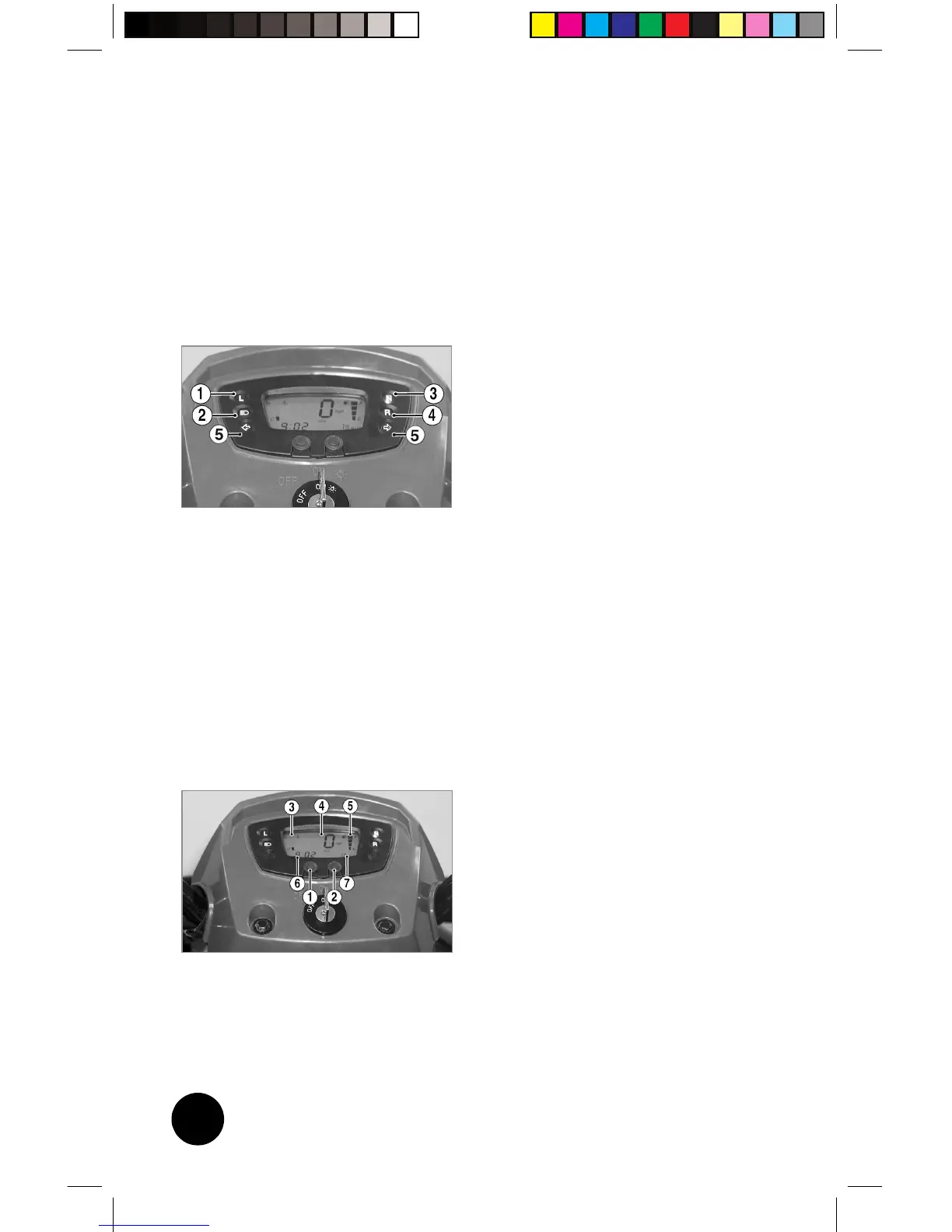

Indicator Lights (2x4)
1. Low Range Indicator - A
white light will illuminate when
the shift lever is in the "low
range" position. The light will
go out when the lever is moved
to another position.
2. High Beam Indicator - A blue
light will illuminate when the en-
gine is running, the ignition switch is in the LIGHTS position, and the
headlight switch isin the HI beam position.
3. Neutral Indicator - A green light will illuminate when the
transmission is in neutral and the ignition switch is on. The light
will go out when shifted into any gear other than neutral.
4. Reverse Indicator - A red light will illuminate when the
transmission is shifted into reverse gear. The light will go off
when shifted out of reverse.
Liquid Crystal Display - LCD (2x4)
1. Mode/Set Button (1) - In
conjunction with Mode/Set
Button (2), shifts the LCD
through mode and reset
operations.
2. Mode/Set Button (2) - In
conjunction with Mode/Set
Button (1), shifts the LCD
through mode and reset
operations.
3. Coolant Temperature Indicator (3) - Displays approximate
engine coolant temperature.
KM123A
KM123B
5. Indicator left/right
