82
GENERAL MAINTENANCE

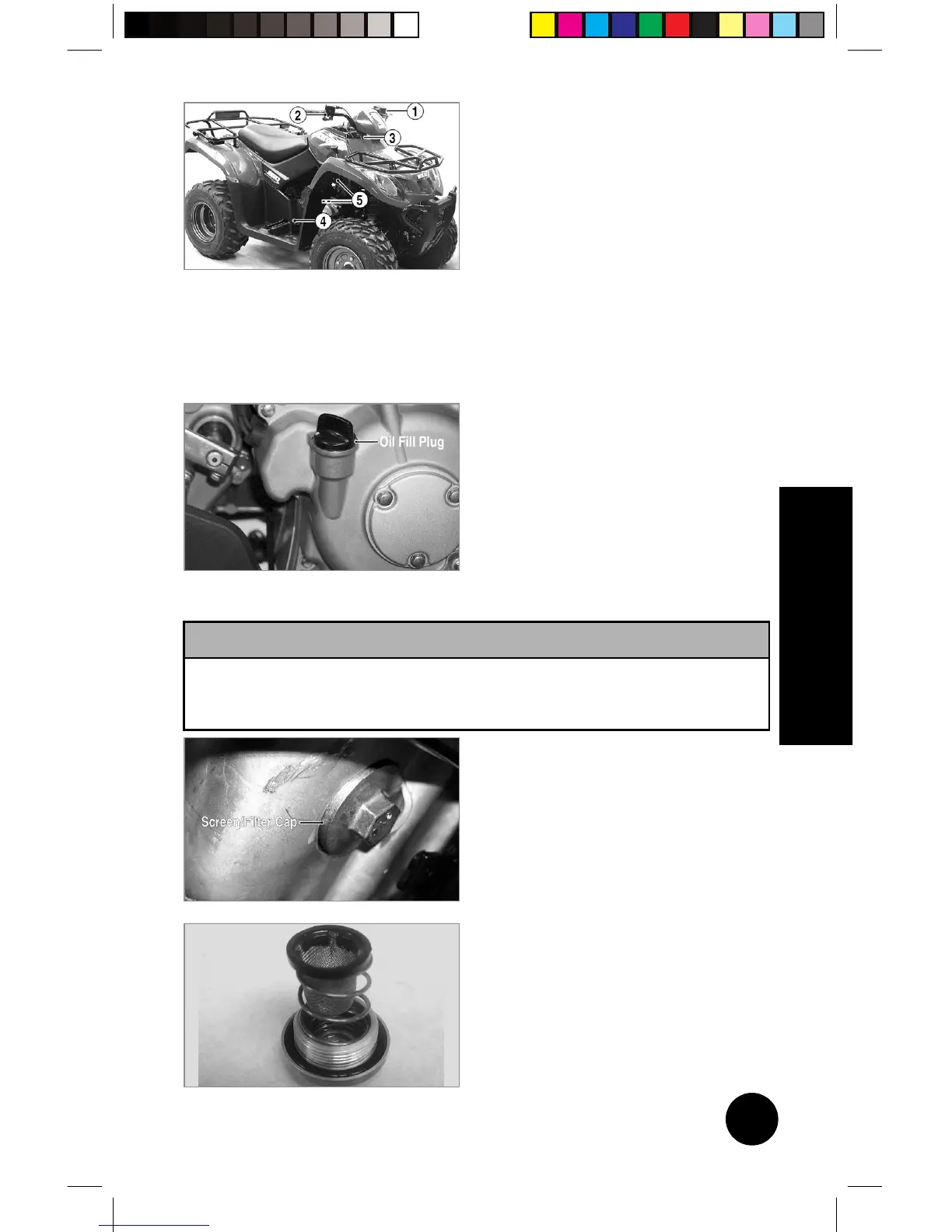

1. Brake Lever Holder (oil)
2. Throttle Lever (oil)
3. Steering Shaft Holder (grease)
4. Auxiliary Brake Pedal Pivot
(grease)
5. Shift Rod Ball Joints (oil)
Engine Oil and Screen/Filter
Change the engine oil and clean the oil screen/filter at the scheduled
intervals. The engine should always be warm when the oil is changed
so the oil will drain easily and completely.
1. Park the ATV on level ground.
2. Loosen the oil fill plug. Be
careful not to allow
contaminates to enter the
opening.
3. Remove the screen/filter cap
from the bottom of the
crankcase. Drain the oil into a
drain pan.
4. Using a brush and parts-
cleaning solvent, clean the
screen/filter; then clean the cap
and inspect the O-ring.
5. Install the O-ring, screen/filter,
compression spring, and the O-
ring; then secure with the
screen/filter cap. Tighten cap to
15 Nm.
6. Remove the oil fill plug; then
pour recommended oil into the
crankcase. Install fill plug.
7. Start the engine (while the ATV
is outside on level ground) and
allow it to idle for a few
minutes.
! CAUTION
When the cap is removed, a compression spring, screen/filter, and
an O-ring will fall into the drain pan. Take care to account for
these components.
KM093A
KM126A
KM147A
6CD 28
