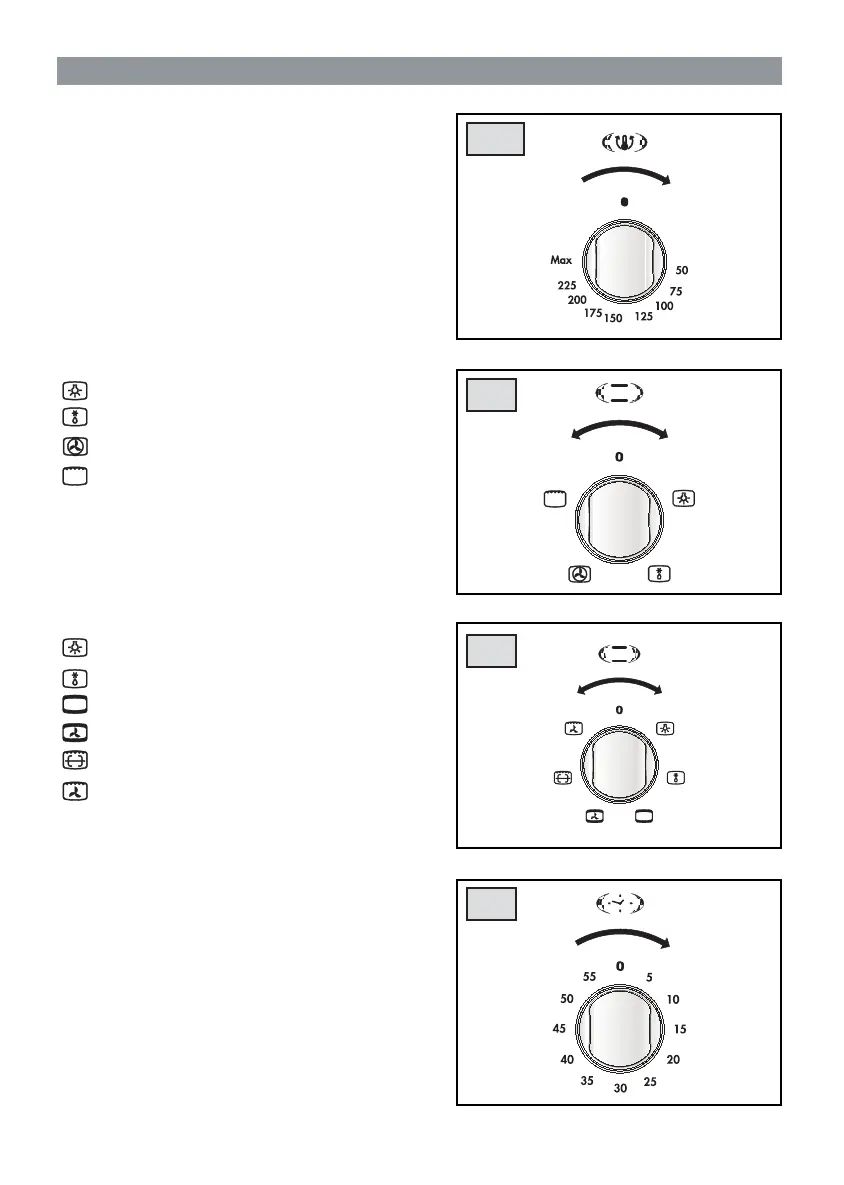

CONTROLS
THERMOSTAT KNOB
FOR MULTIFUNCTION OVEN (ref. A)
Turning the oven knob clockwise selects and sets the
oven baking temperature (50°C to maximum heat).
FOUR FUNCTIONS SELECTOR KNOB
FOR FANNED OVEN (ref. B)
Turning the oven knob either clockwise or anti-
clockwise, the following function symbols are
available:
0
= Oven off
= Oven lights on (stays lit with all functions)
= Fan on
= Rear heating element and fan on
= Grill heating element on
SIX FUNCTIONS SELECTOR KNOB
FOR MULTIFUNCTION OVEN (ref. B)
Turning the oven knob either clockwise or anti-
clockwise, the following function symbols are
available:
0
= Oven off
= Oven lights on (stays lit with all functions)
= Fan on
= Top and bottom heating elements on
= Top and bottom heating elements on plus fan
= Grill + spit heating element on (*)
= Grill heating element on plus fan
(*) Available or adaptable only on certain oven models.
WARNING LIGHT INDICATING THERMOSTAT
ACTIVATION (ref. C)
When lit it indicates that the oven or the grill is in use.
During cooking time the warning turns off each time
the temperature set is reached. It is therefore common
that the warning /yellow light turns on and off several
times according to re-heating process.
TIMER KNOB (ref. D)
To set cooking time, fi rst wind the timer up by turning it
completely once from left to right and then back to the
number of minutes you want. The timer will ring when
the set time has elapsed.
2. DESCRIPTION OF THE APPLIANCE GB
